Tail Lamp: Service and Repair

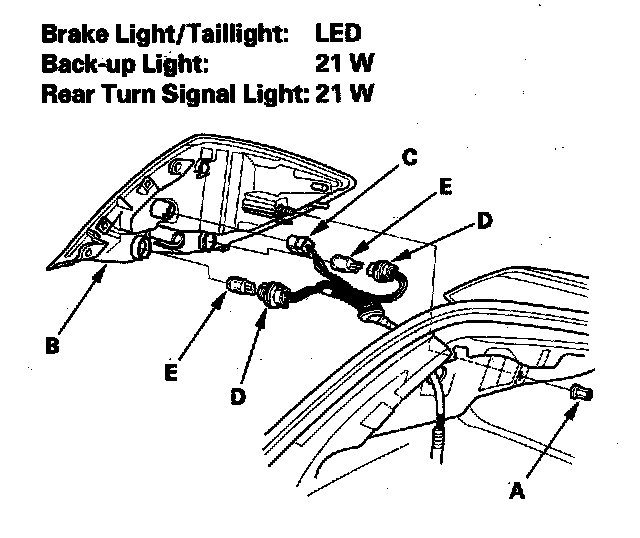

Taillight Replacement 1.
Open the trunk lid, and remove the taillight lid (A).
2.
Remove the two bolts from the taillight (B).
3.
Remove the maintenance lid and special nut (A) from the taillight (B).
4.
Pull out the taillight slightly, and disconnect the 3P connector (C) from the brake light/taillight connector.
5.
Turn the bulb sockets (D)
45 degrees counterclockwise to remove the bulbs (E).
