Crankshaft, Engine

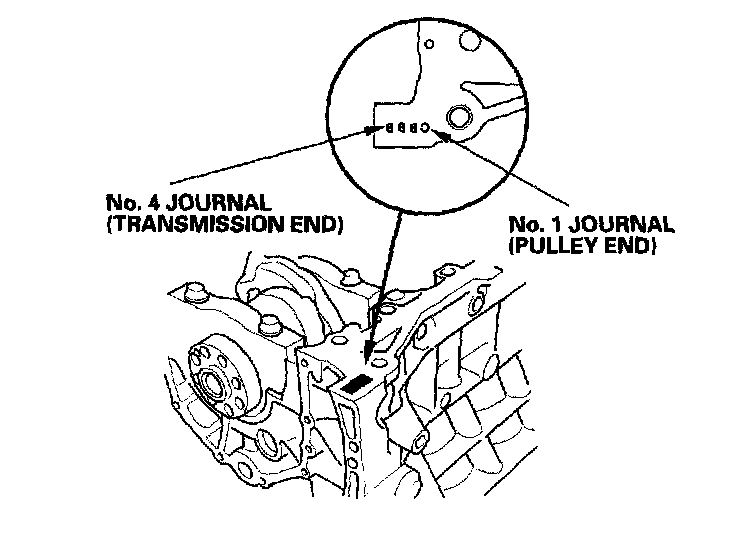

Crankshaft Bore Code Location








Letters or bars have been stamped on the end of the block as a code for the size of each of the four main journal bores.

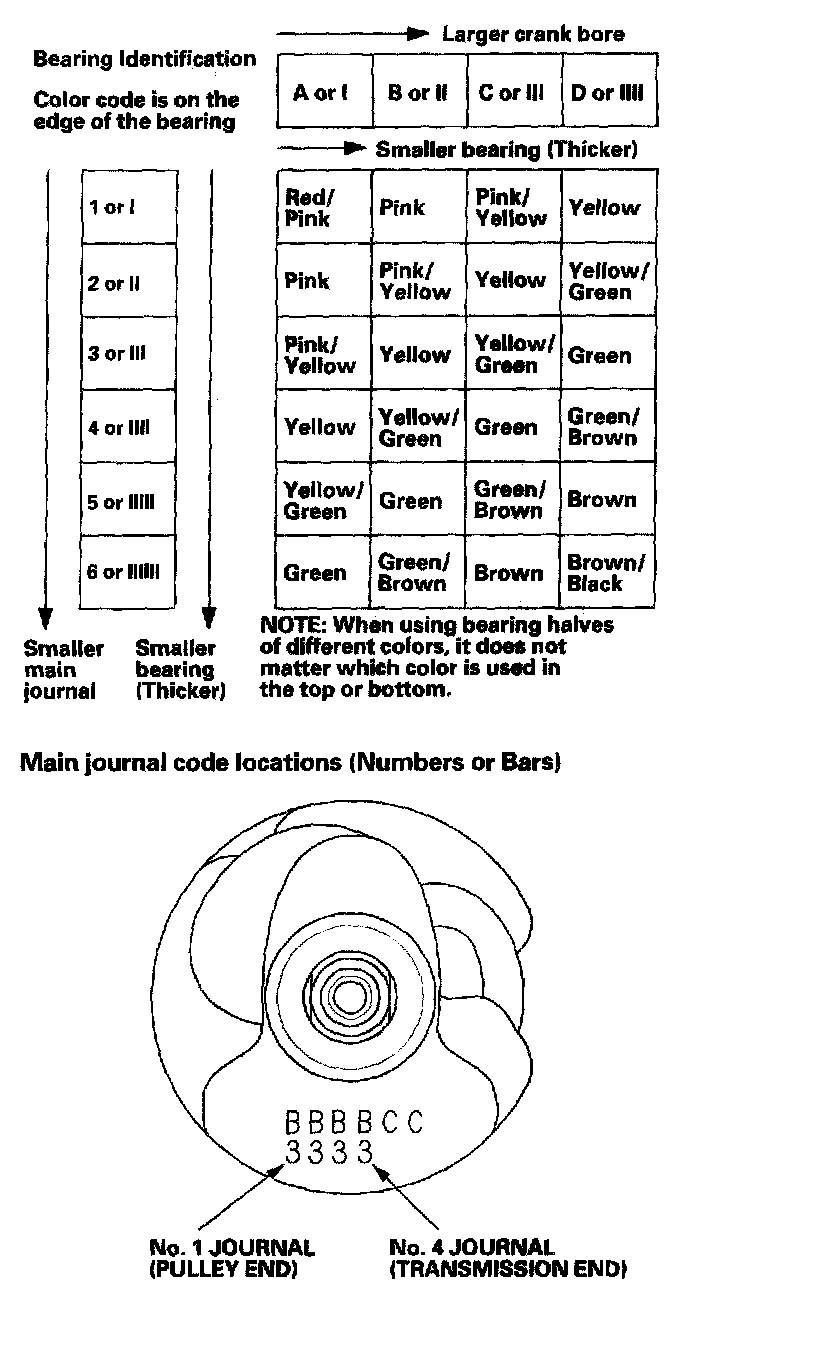

Use them, and the numbers stamped on the crankshaft (codes for main journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Crankshaft Inspection

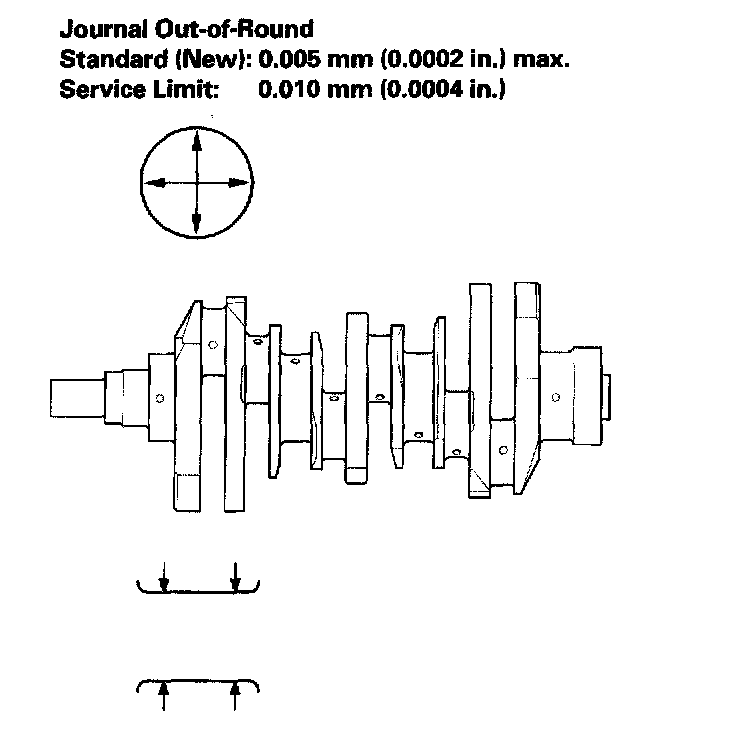

Journal Out-of-Round





Journal Taper
Standard (New): 0.005 mm (0-0002 inch) max.
Service Limit: 0.010 mm (0.0004 inch)

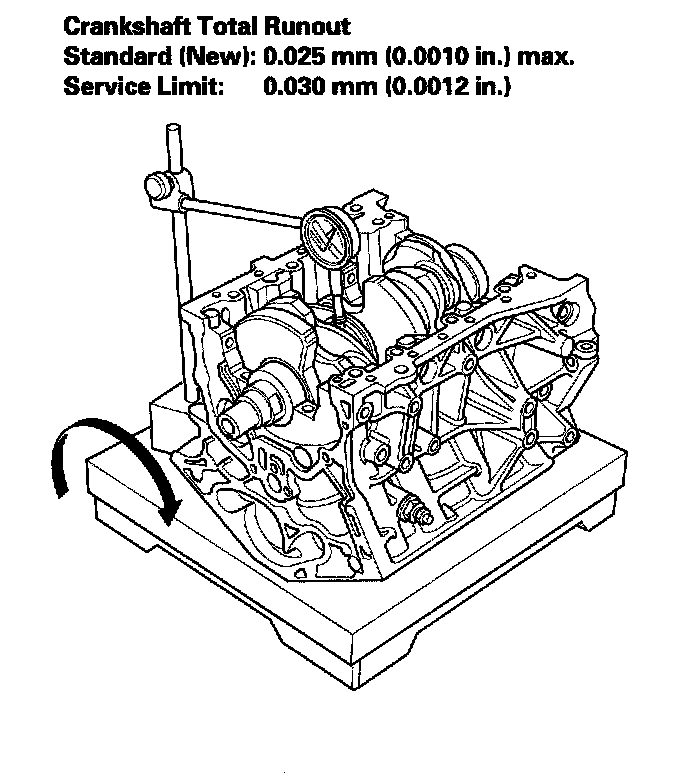

Crankshaft Total Runout
