Voice Control Switch Test

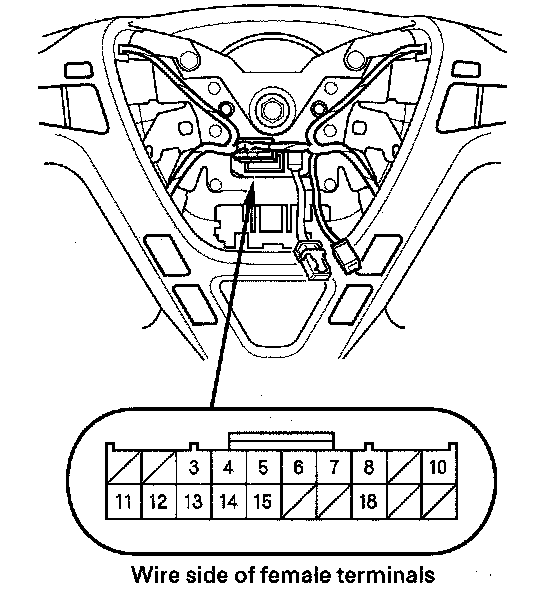

Voice Control Switch Test1. Remove the driver's airbag assembly.

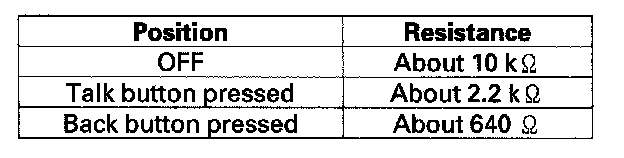

2. Remove the 20P connector from the cable reel.
3. Measure the resistance between the No. 8 and No. 18 terminals in each switch position according to the table.

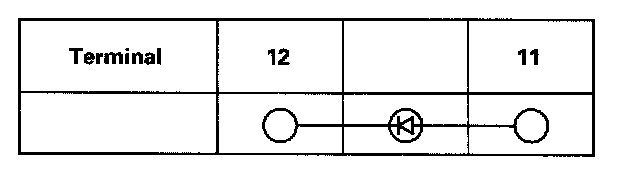

4. If the resistance is not as specified, replace the voice control switch.
5. Use a diode tester between the terminals in each switch position according to the table.
6. If the diode test is not as specified, replace the voice control switch.
