Symptom Troubleshooting

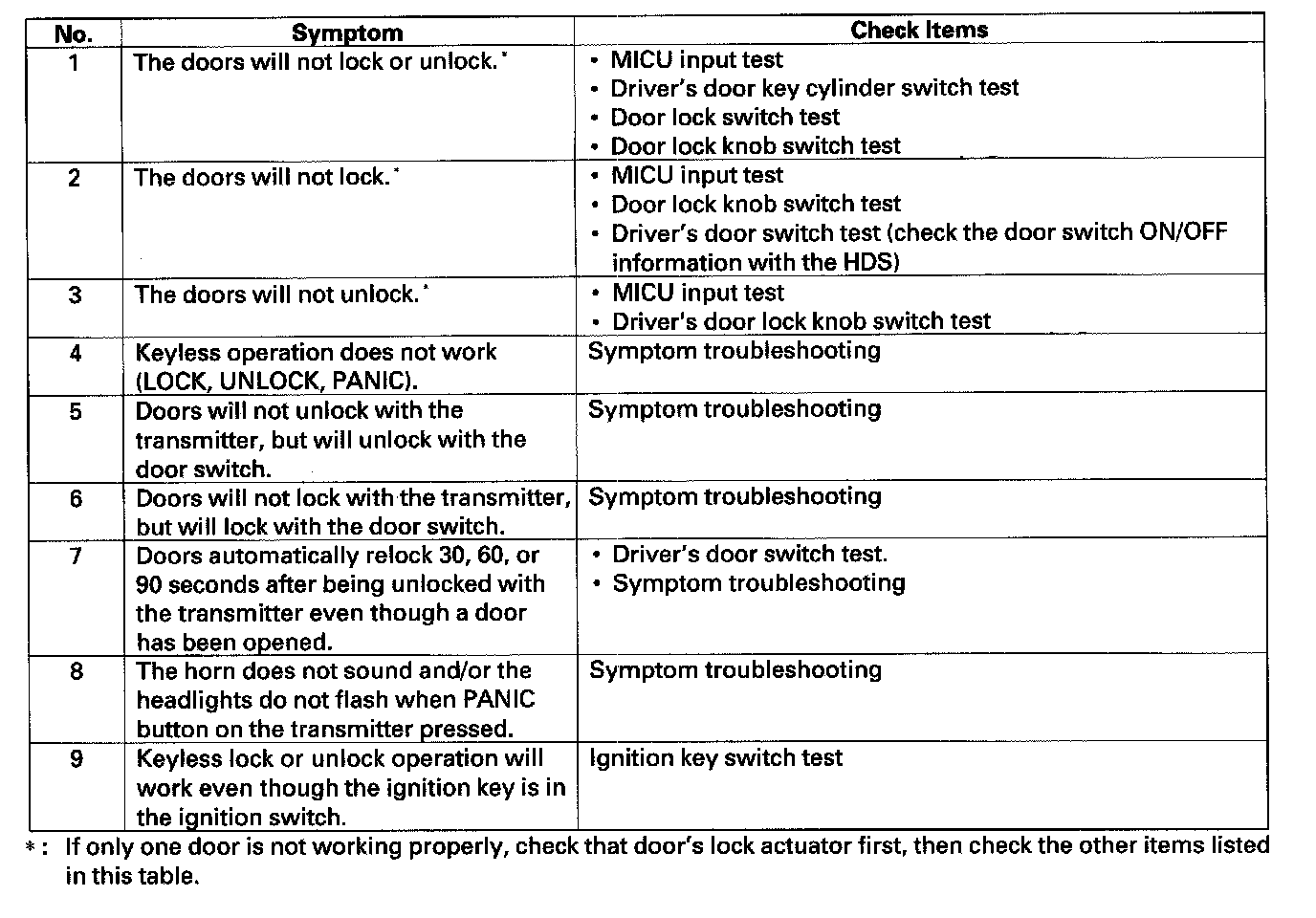

Symptom TroubleshootingSymptom Troubleshooting:
Power Door Locks/KeylessIf the door lock system works properly, but the vehicle does not start, refer to the immobilizer-keyless control unit symptom troubleshooting information.
NOTE: Only the panic function will work with the key in the ignition off position. There is no keyless function with the ignition turned ON (II).
