Front Strake

Front Strake Replacement

NOTE: Take care not to scratch the body.

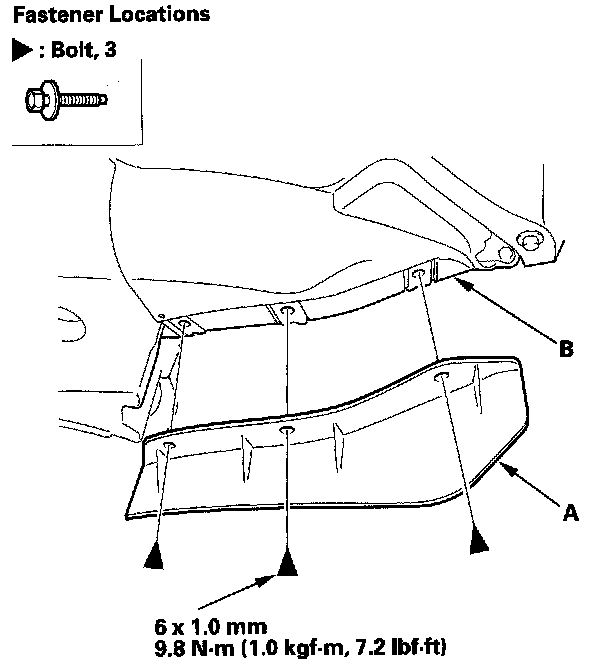

1. Remove the bolts, then remove the front strake (A) from the front inner fender (B).
2. Install the strake in the reverse order of removal.
