Left Front Splash Guard Reinforcement
Left Front Splash Guard Reinforcement Replacement 1.
Remove these items:
-
Left front inner
fender, as needed
-
Left side sill panel
2.

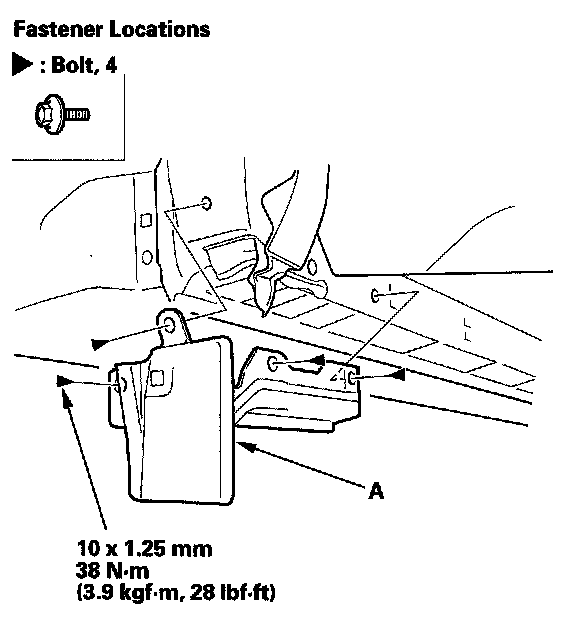

Remove the bolts, then remove the left front
splash guard reinforcement (A). Take care not to scratch the body.
3.
Install the reinforcement in the reverse order of removal.
