System Diagram

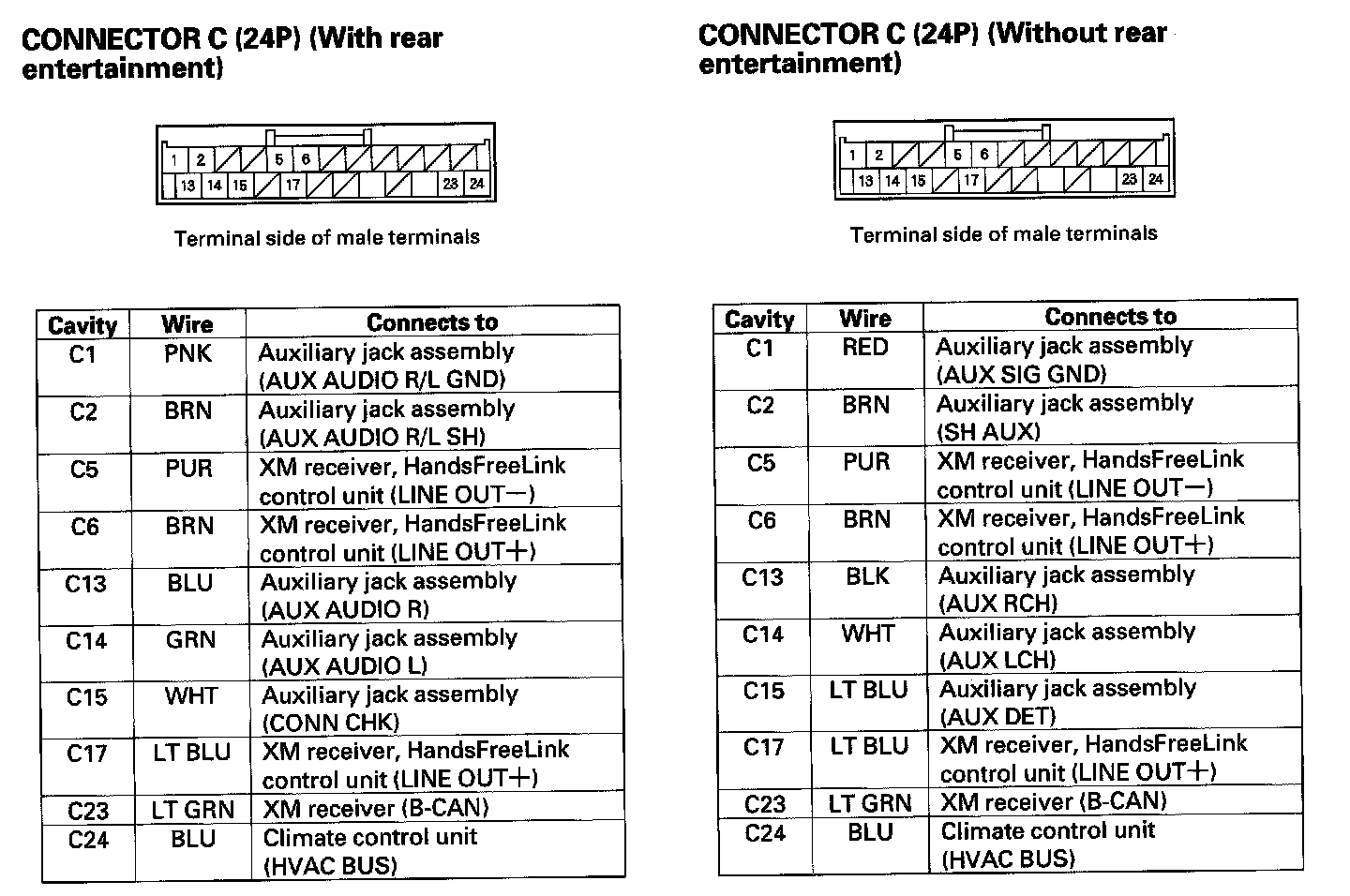

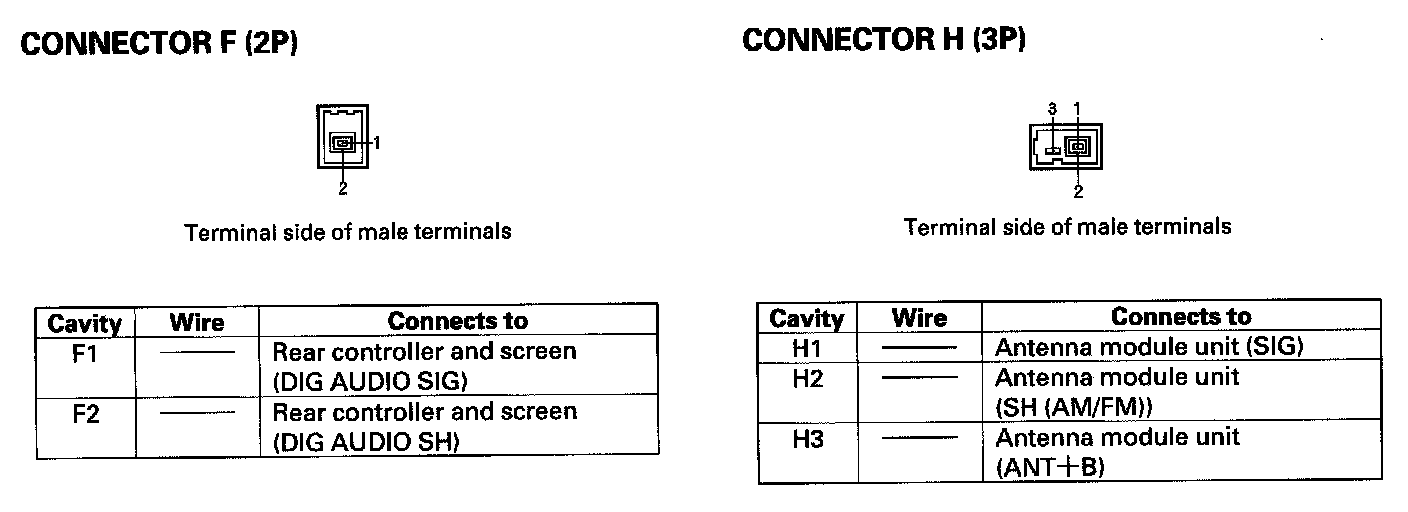

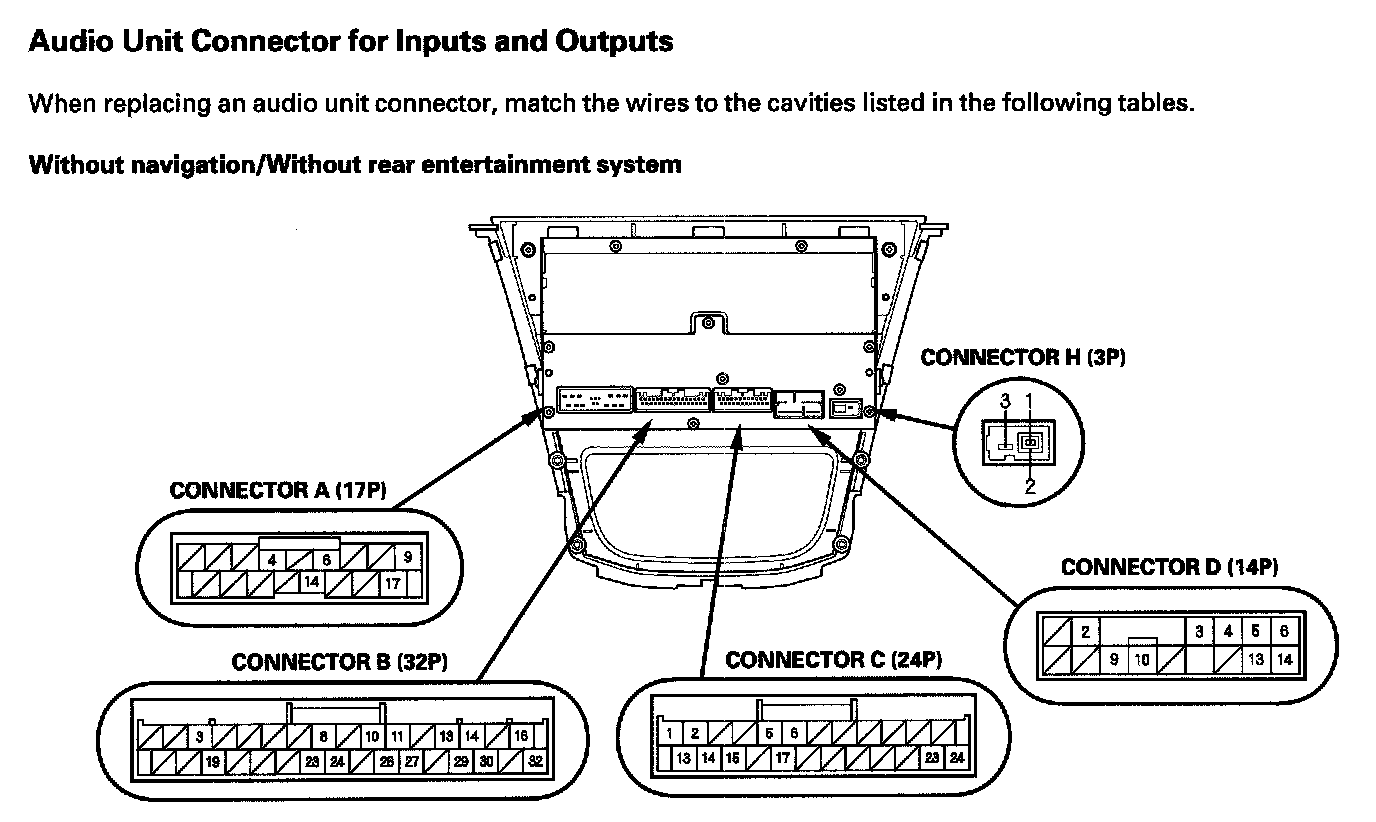

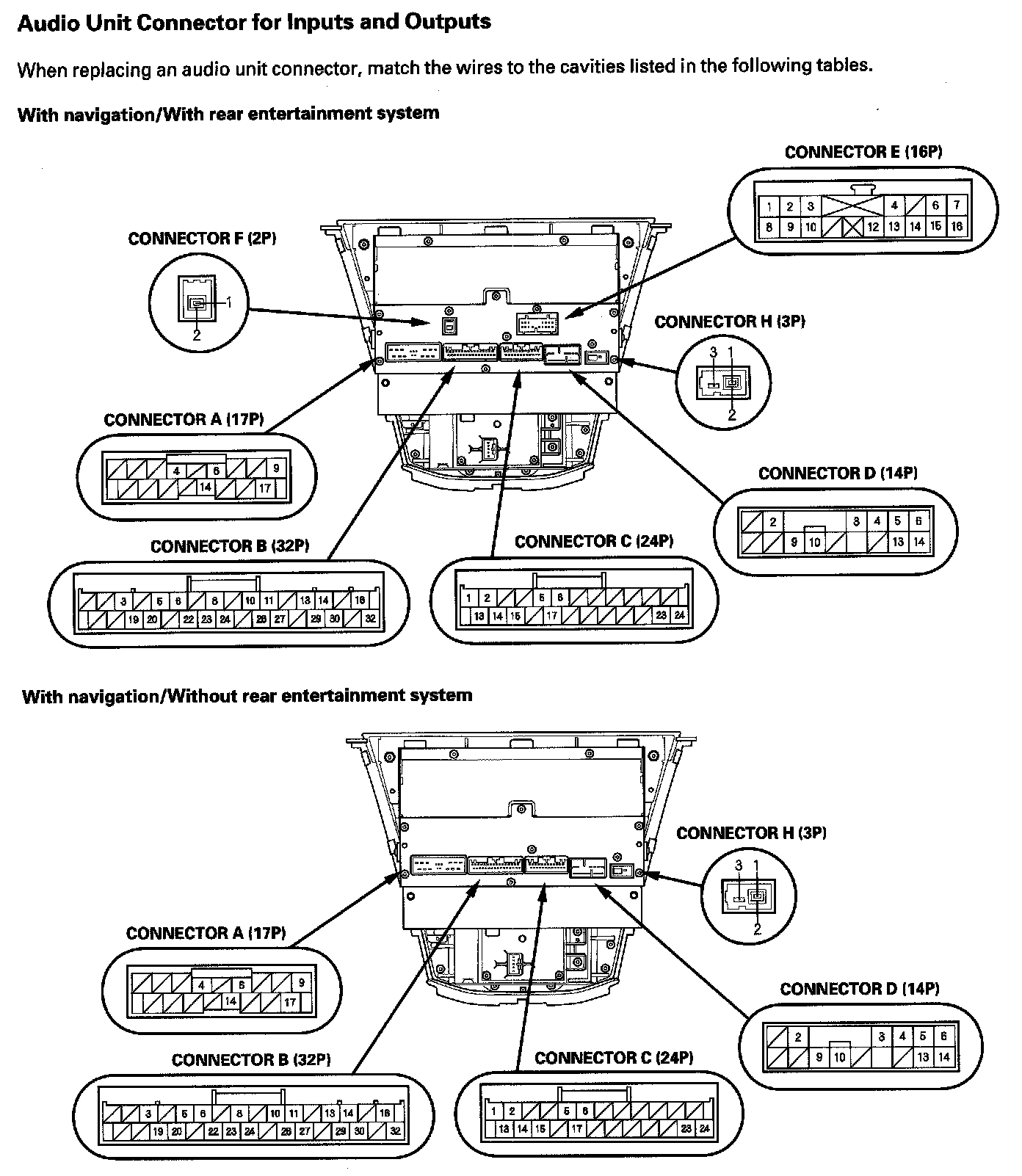

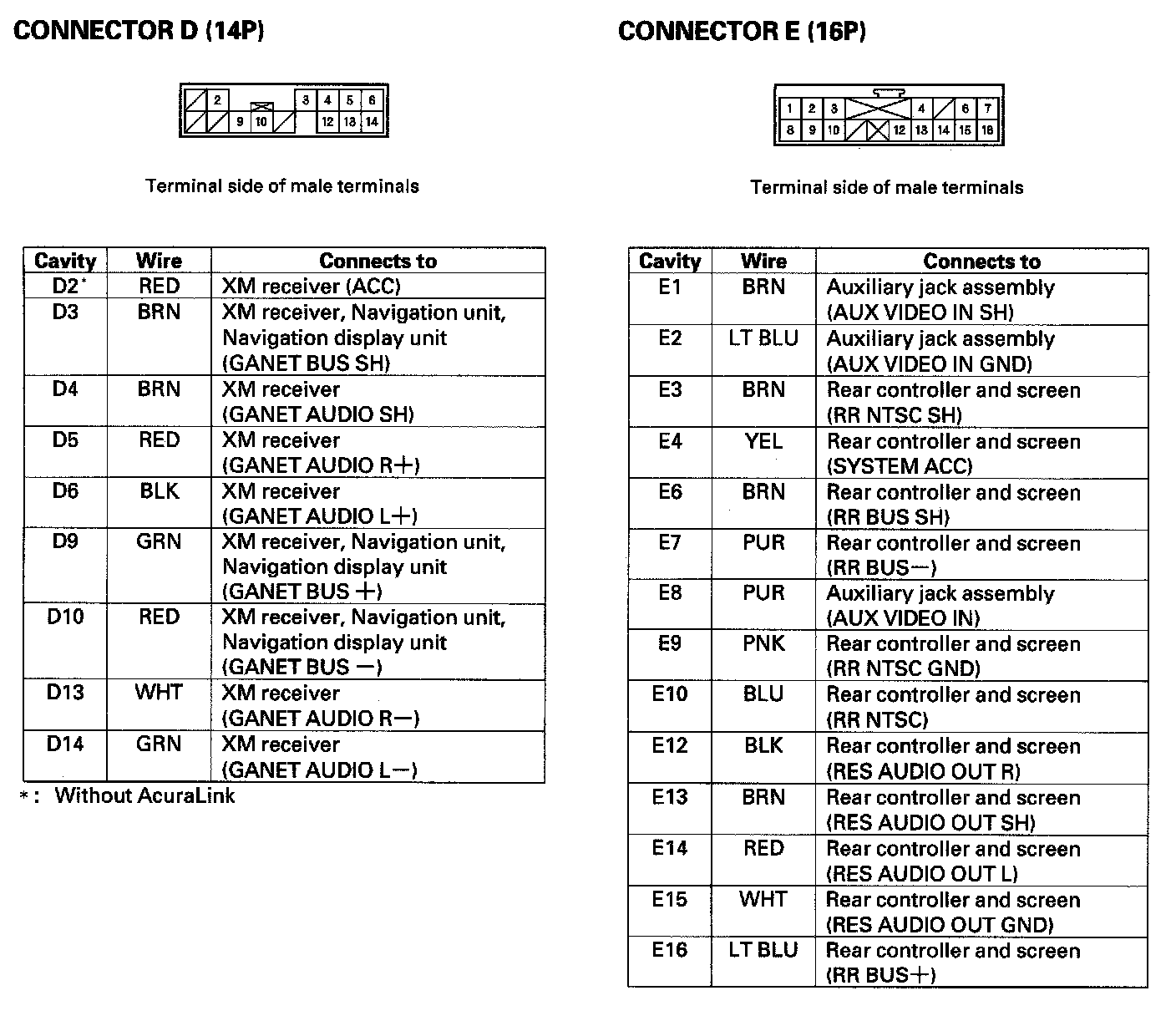

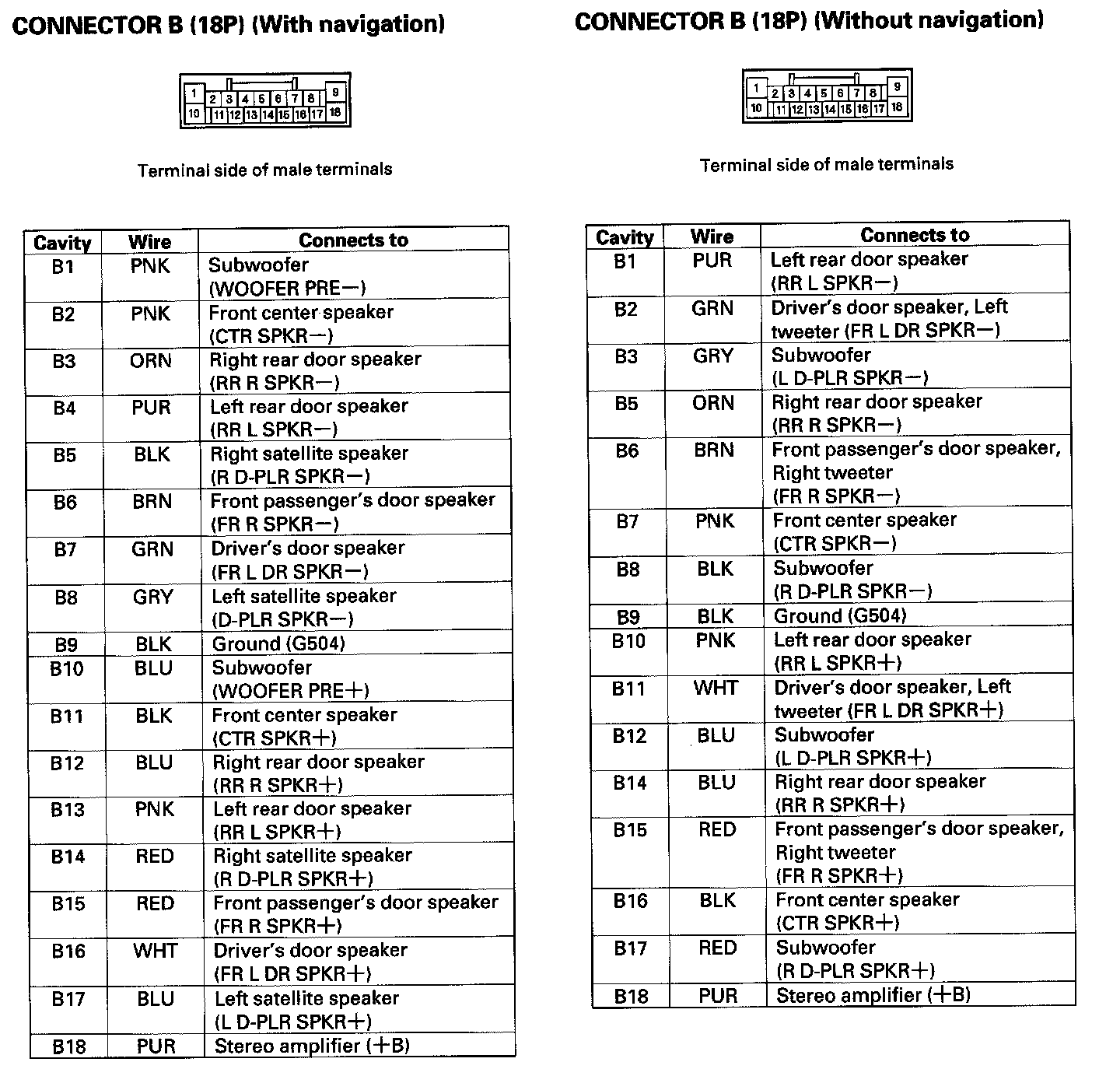

Audio Unit Connector For Inputs And Outputs Part 1:



Audio Unit Connector For Inputs And Outputs Part 2:



Audio Unit Connector For Inputs And Outputs Part 3:



Audio Unit Connector For Inputs And Outputs Part 4:



Audio Unit Connector For Inputs And Outputs Part 5:



Audio Unit Connector For Inputs And Outputs Part 6:

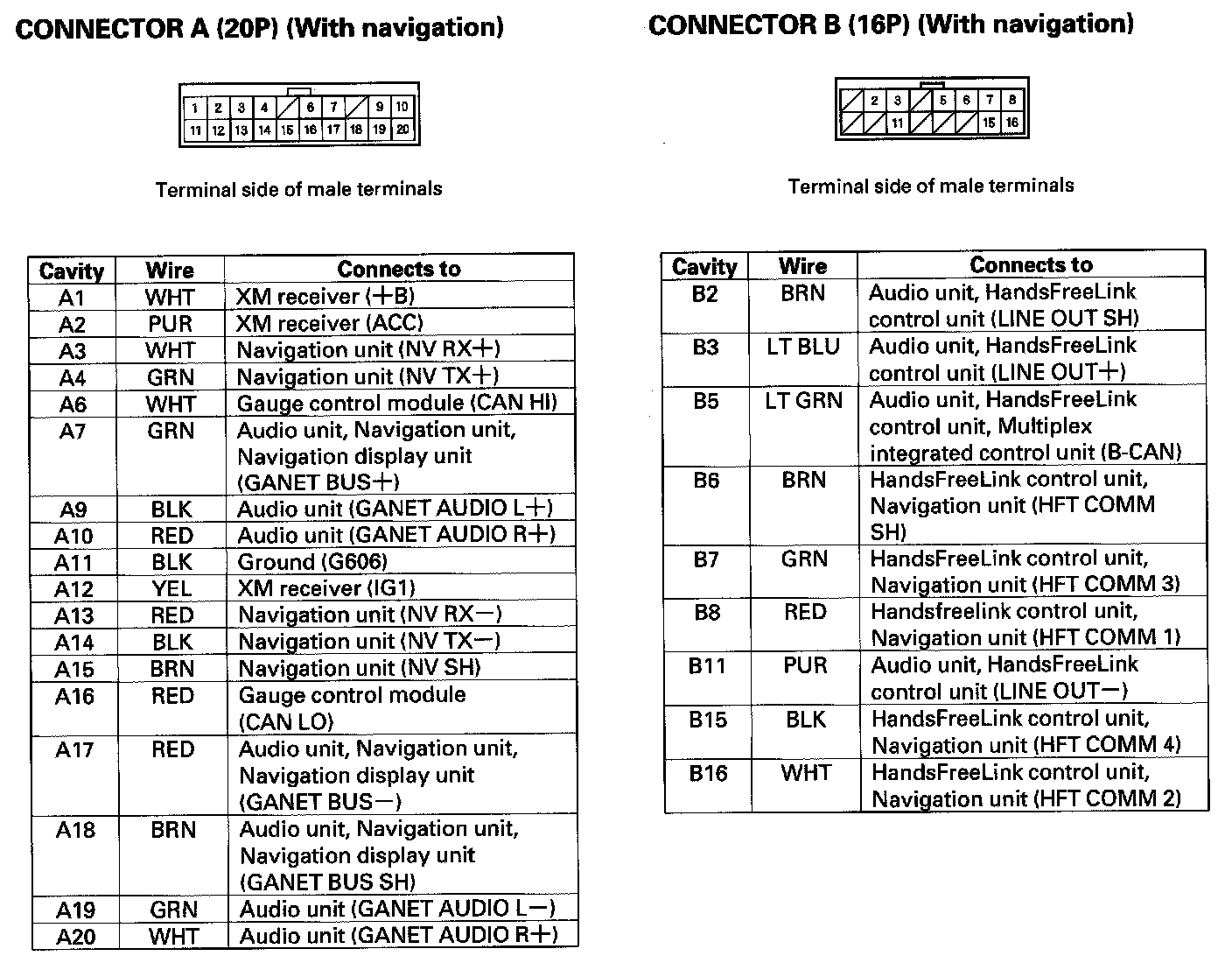

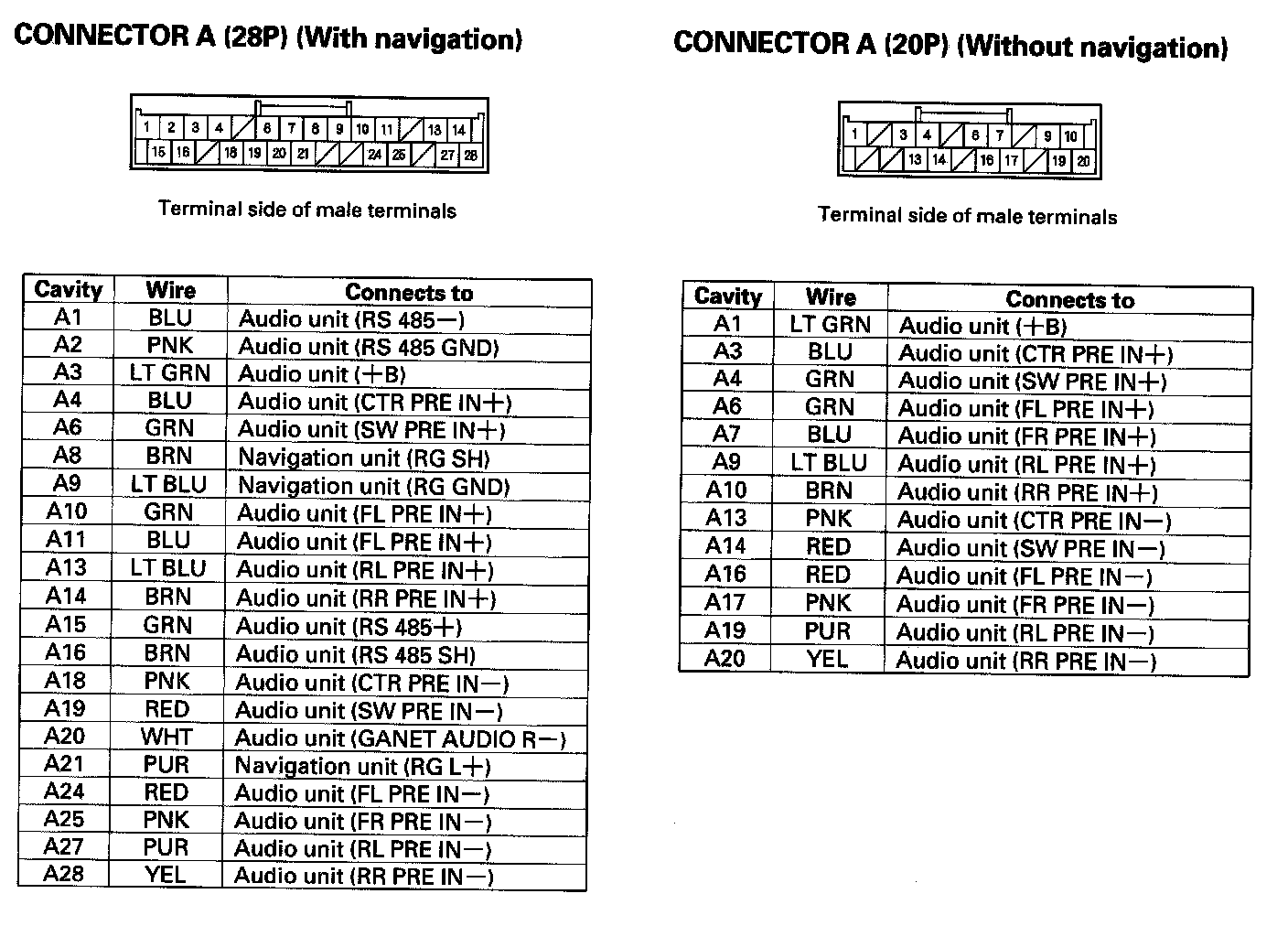

Stereo Amplifier Connector For Inputs And Outputs Part 1:



Stereo Amplifier Connector For Inputs And Outputs Part 2:



Stereo Amplifier Connector For Inputs And Outputs Part 3:



AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) Part 1:



AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) Part 2:

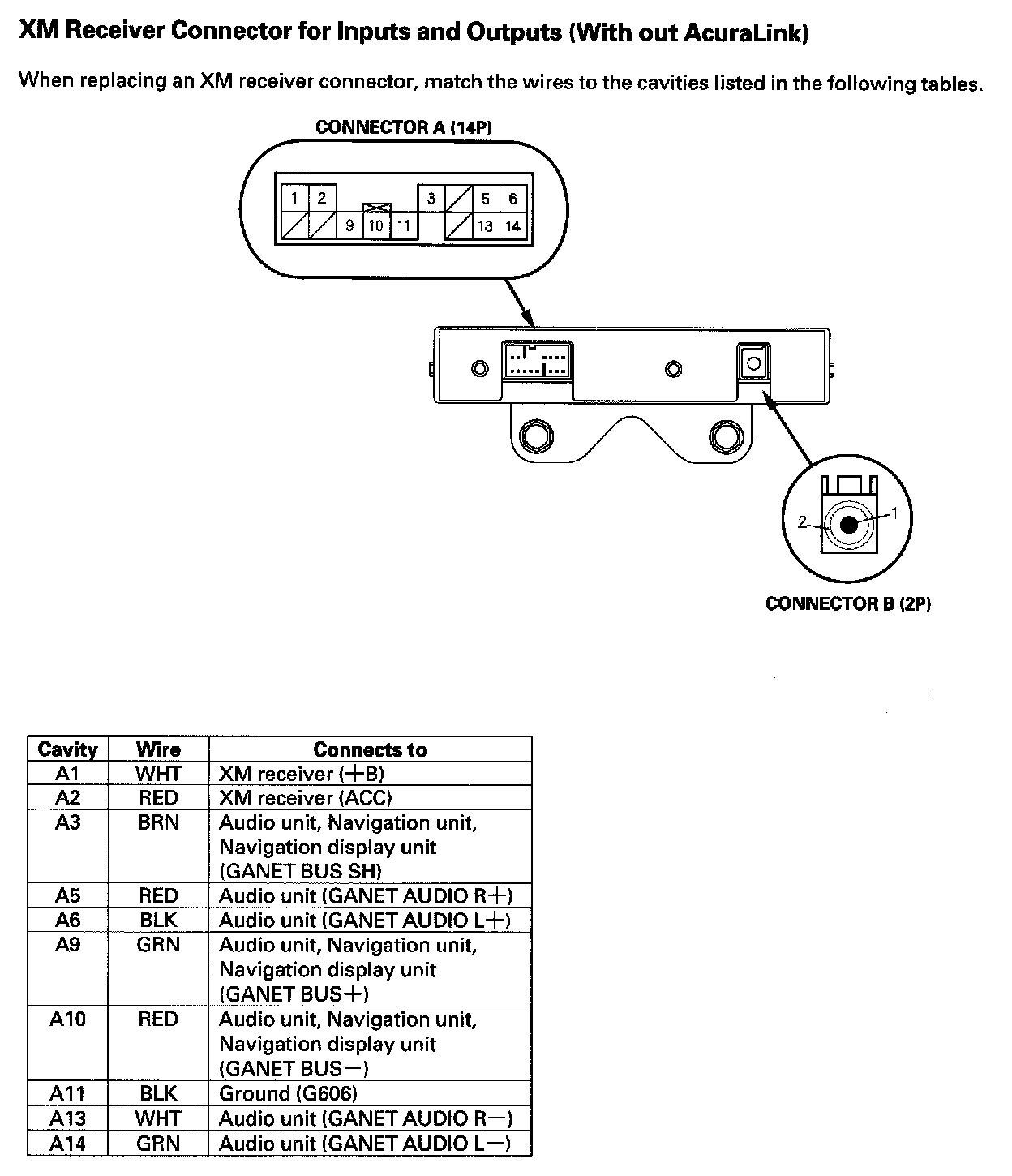

XM Receiver Connector For Inputs And Outputs (Without AcuraLink):

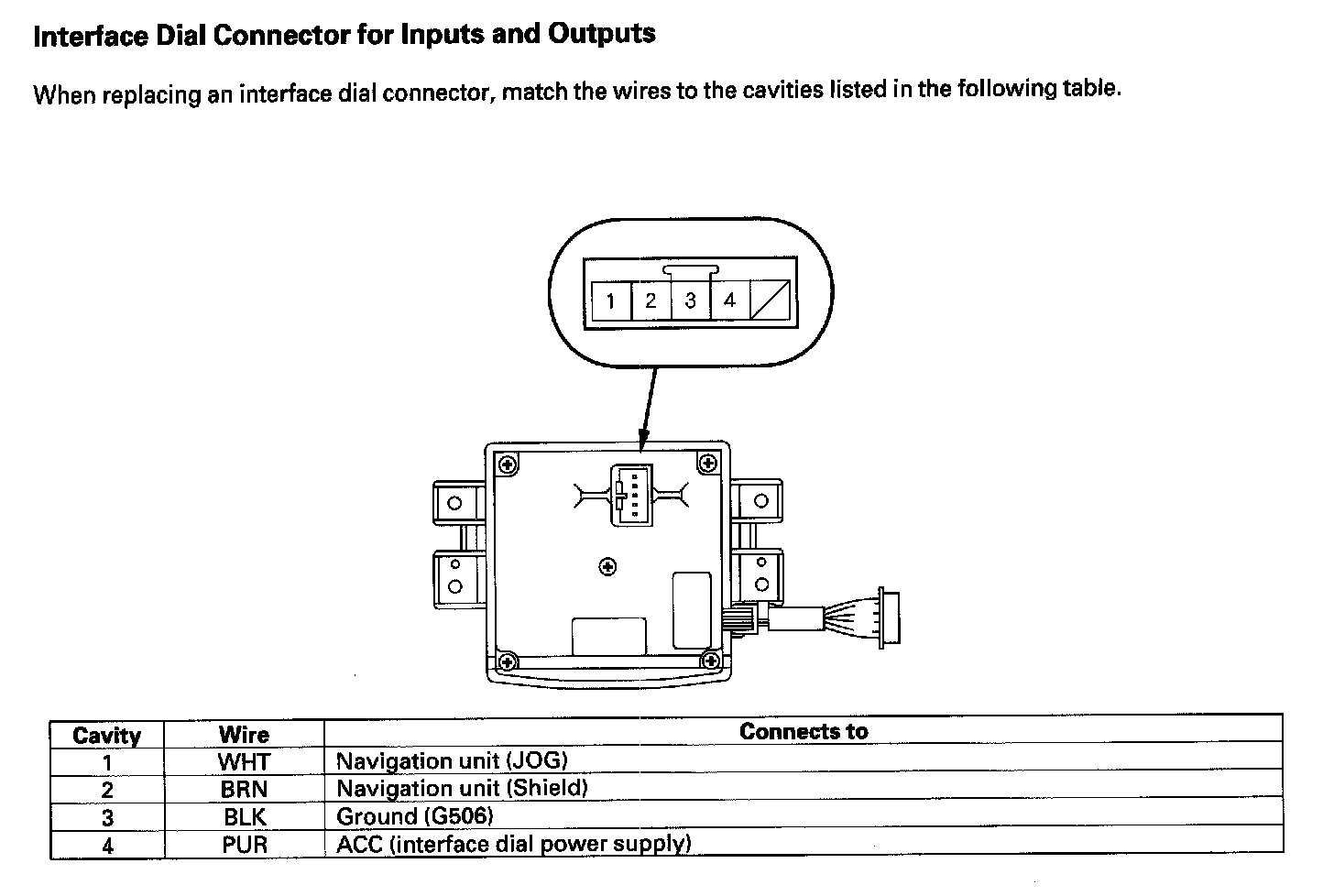

Interface Dial Connector For Inputs And Outputs:

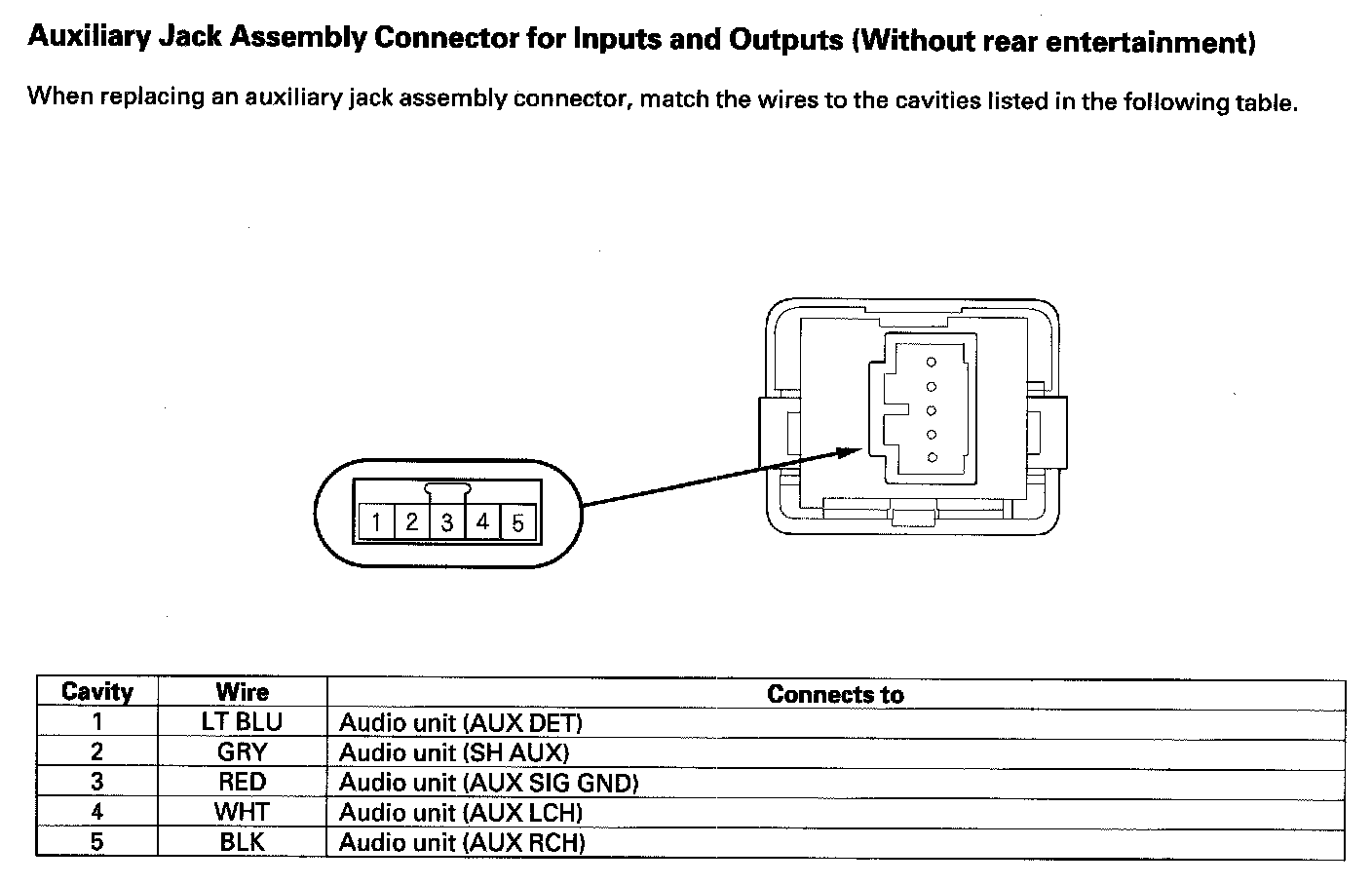

Auxiliary Jack Assembly Connector For Inputs And Outputs (Without Rear Entertainment):
