Automatic Transmission/Transaxle
>>
Transmission Reassembly
Transmission Reassembly
Transmission Reassembly

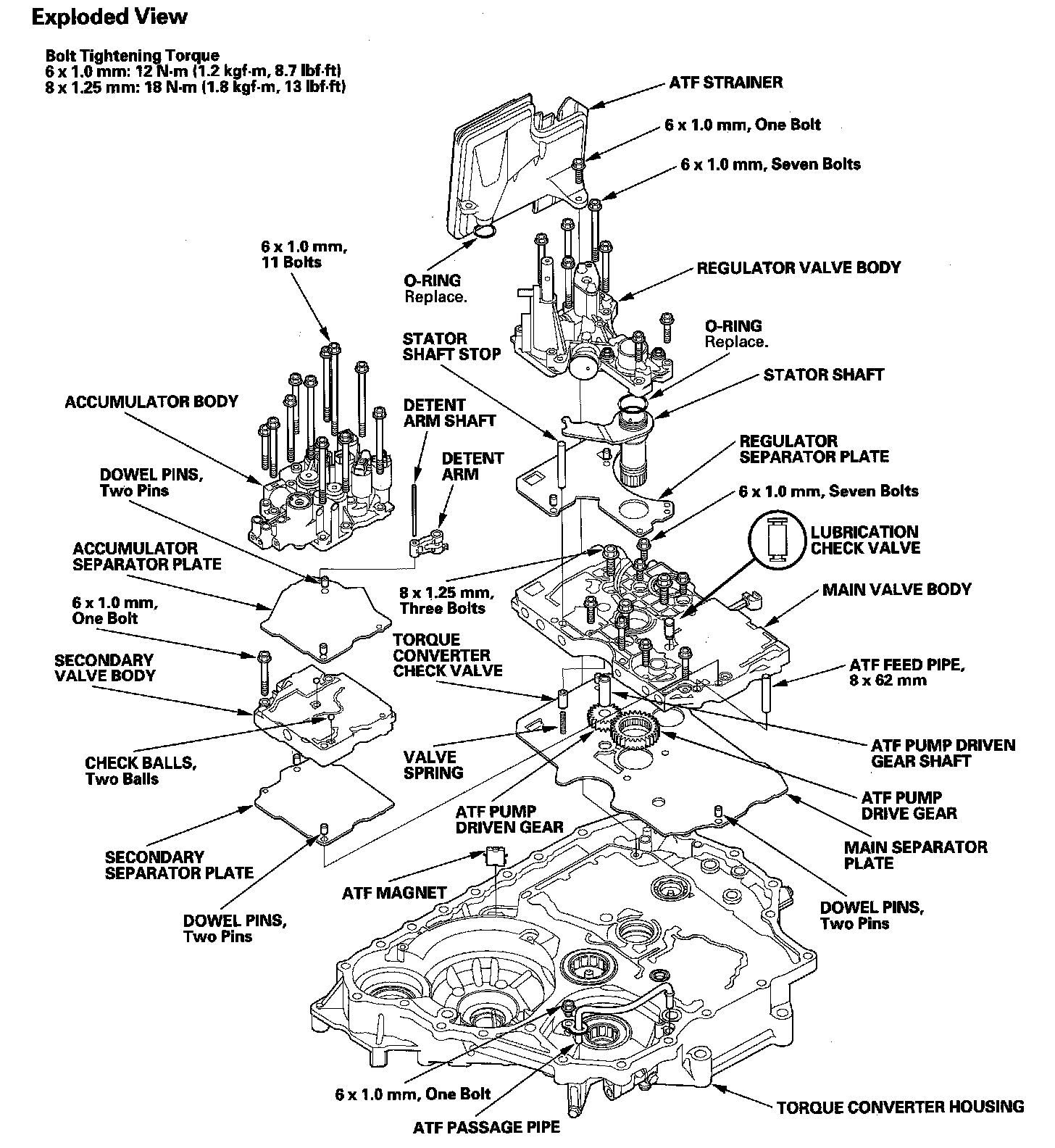

Transmission:
