Rear Evaporator Temperature Sensor Replacement

Rear Evaporator Temperature Sensor Replacement
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Remove the center console.

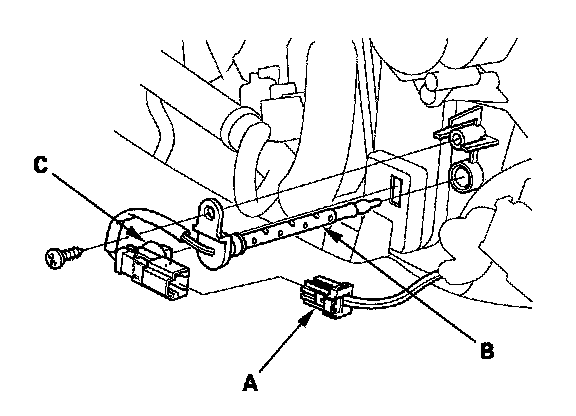

2. Disconnect the 2P connector (A) from the rear evaporator temperature sensor (B), then remove the connector clip (C). Remove the self-tapping screw and the rear evaporator temperature sensor from the rear HVAC unit.
3. Install the sensor in the reverse order of removal.
