Fog/Driving Lamp: Service and Repair

Fog Light/Daytime Running Light Replacement
1. Remove the front bumper.

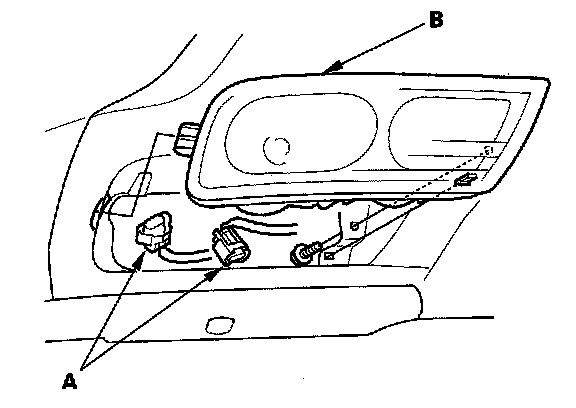

2. Disconnect the 2P connectors from the fog light and the daytime running light.
3. Remove the screw, then remove the light.
4. Install the light in the reverse order of removal.
5. After replacement, adjust the fog lights/daytime running lights.
