Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Trailer Lighting Module >> Locations

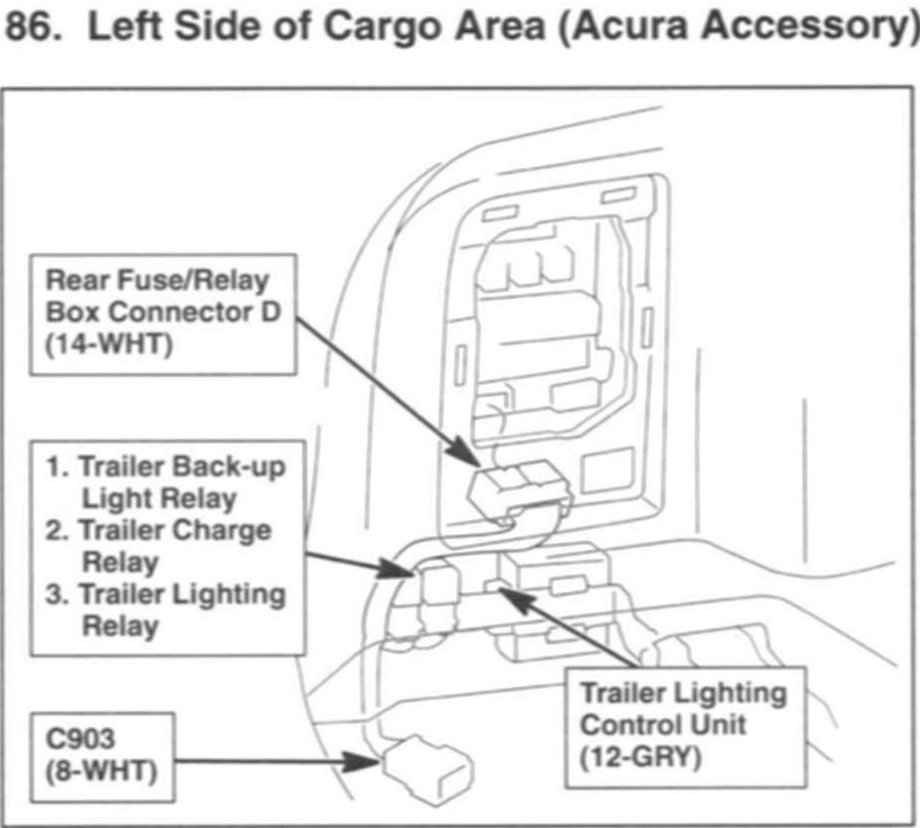

Trailer Lighting Module: Locations

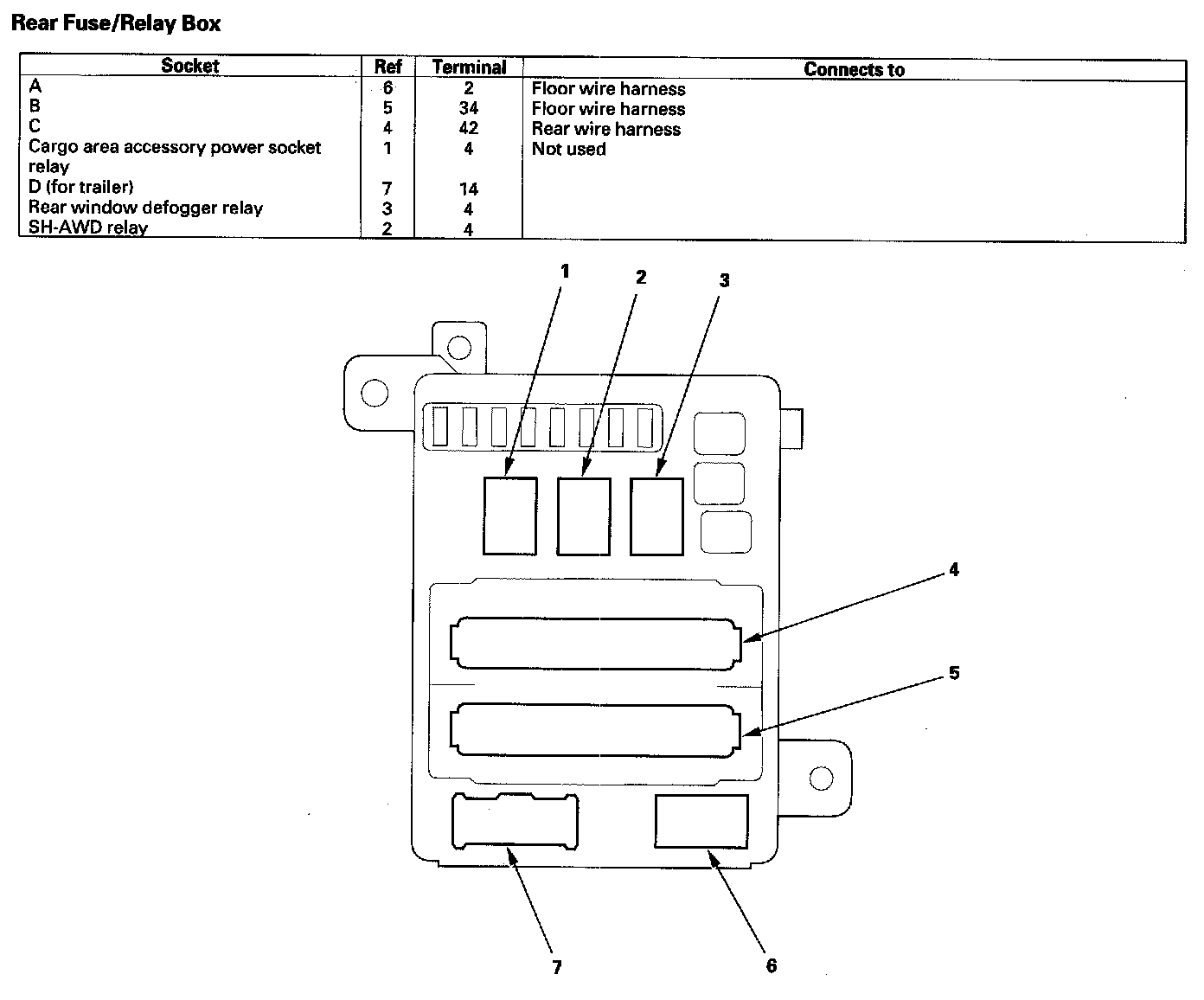

Rear Fuse/Relay Box:
