Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
2007
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
ECT Sensor Subharness
ECT Sensor Subharness

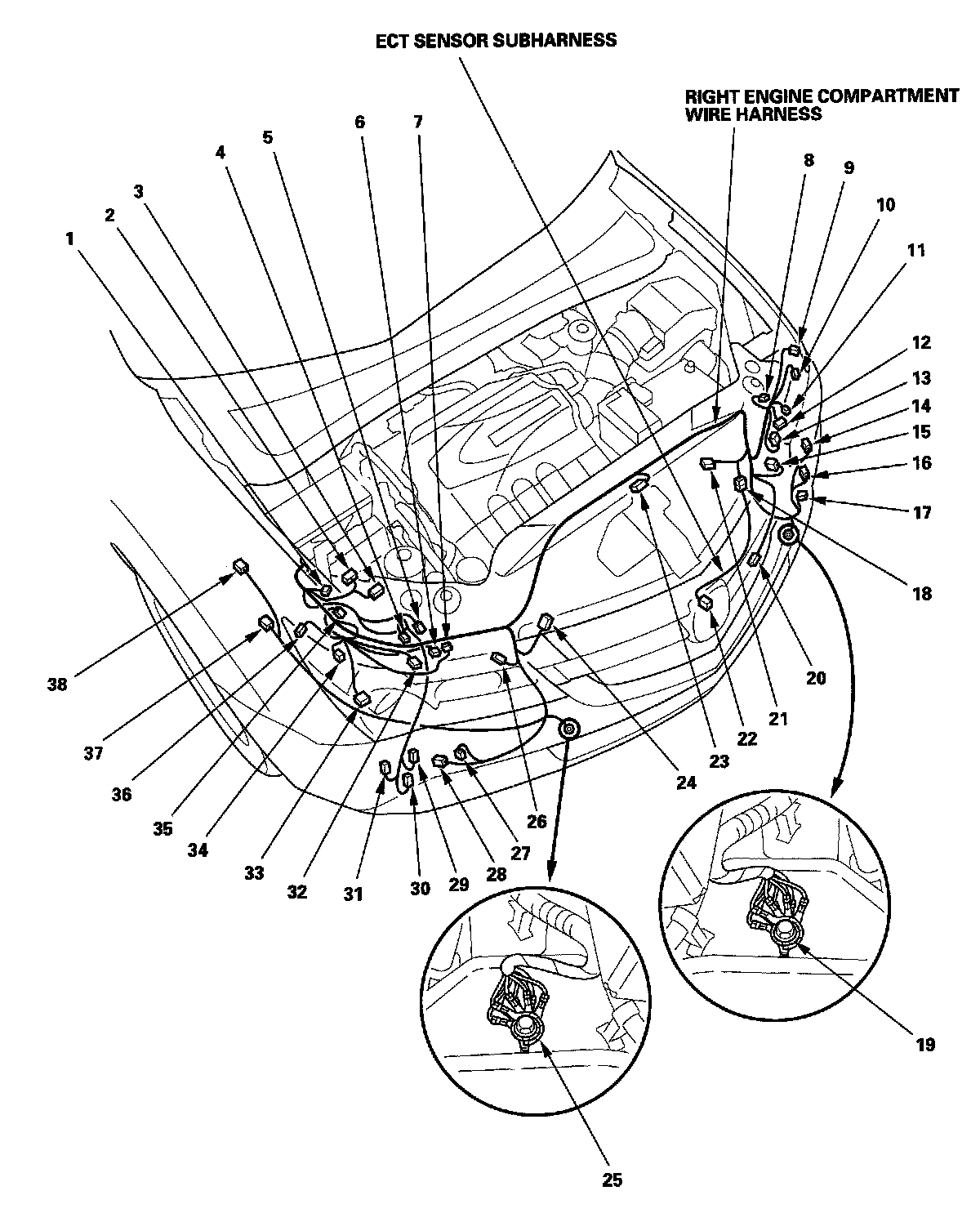

Harness Location View:

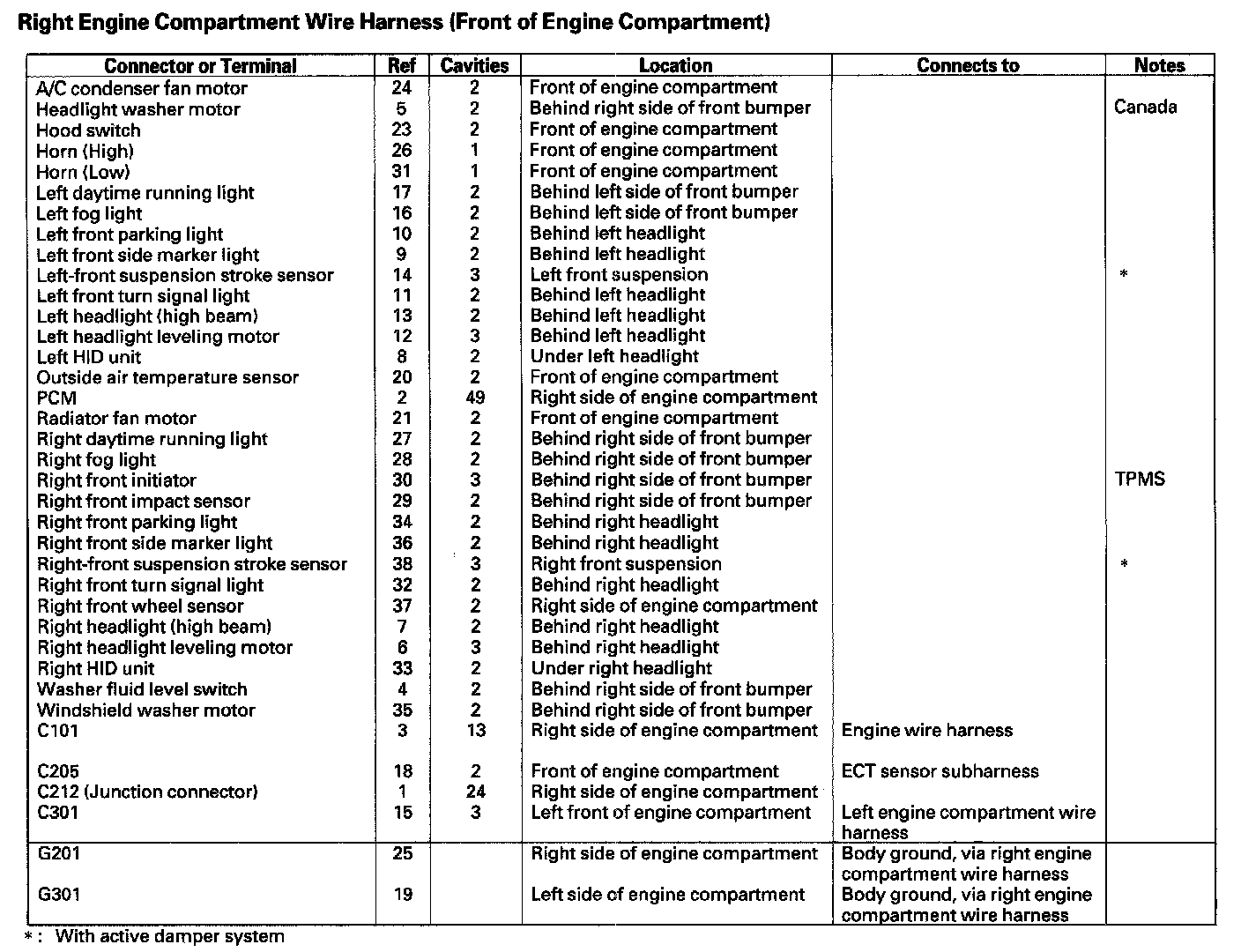

Right Engine Compartment Wire Harness (Front Of Engine Compartment):
