Home
>>
Acura
>>
2007
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Knock Sensor Subharness
Knock Sensor Subharness

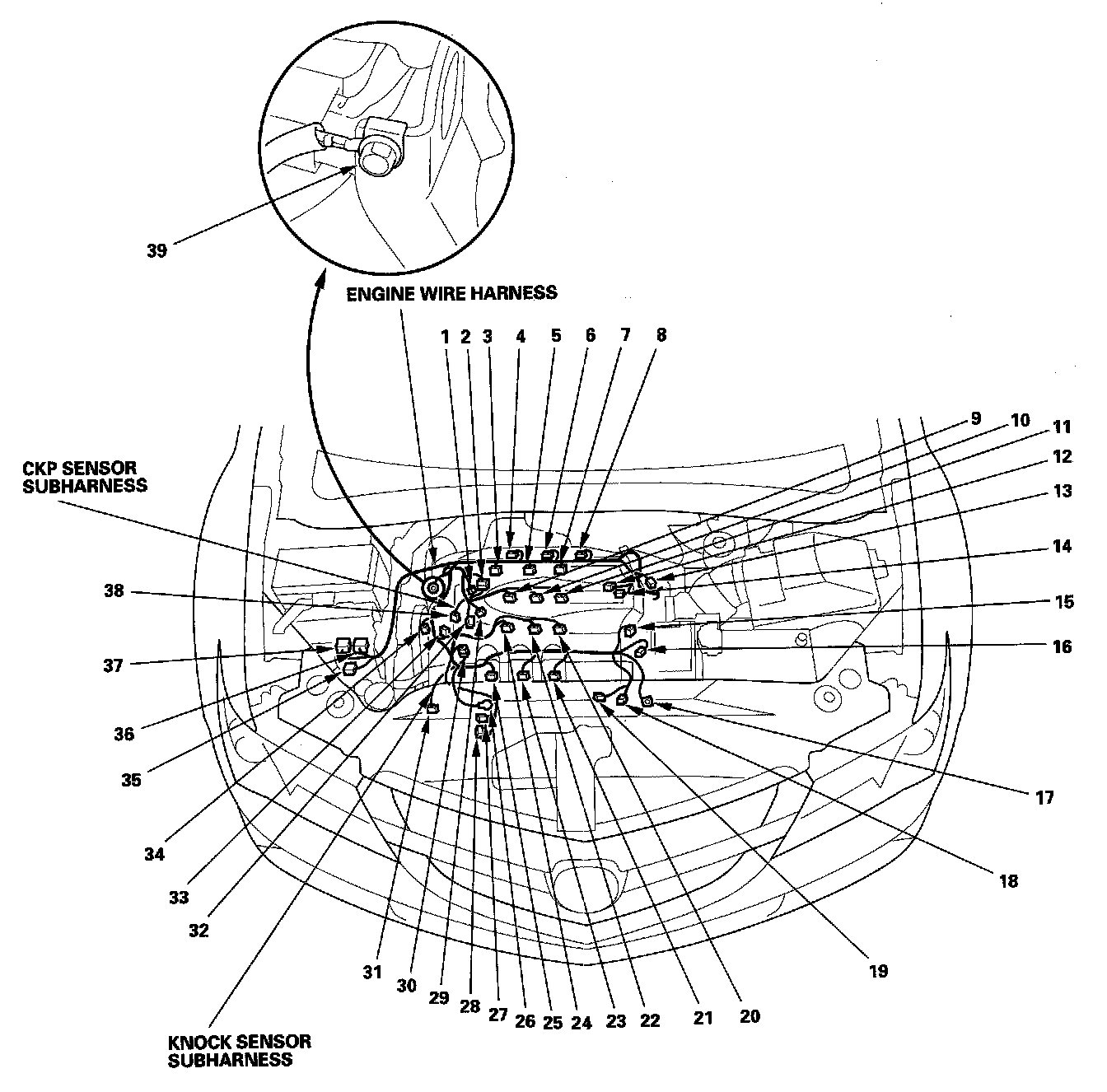

Harness Location View:

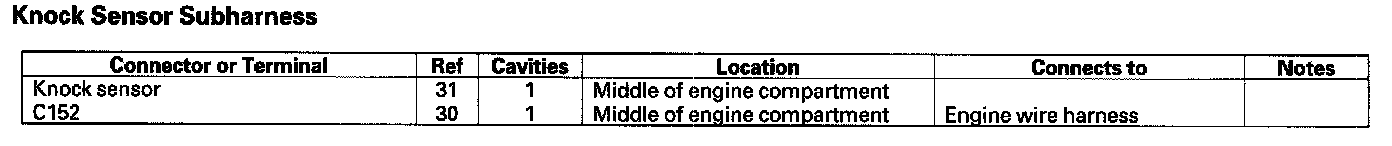

Knock Sensor Subharness:
