ODS Unit Harness

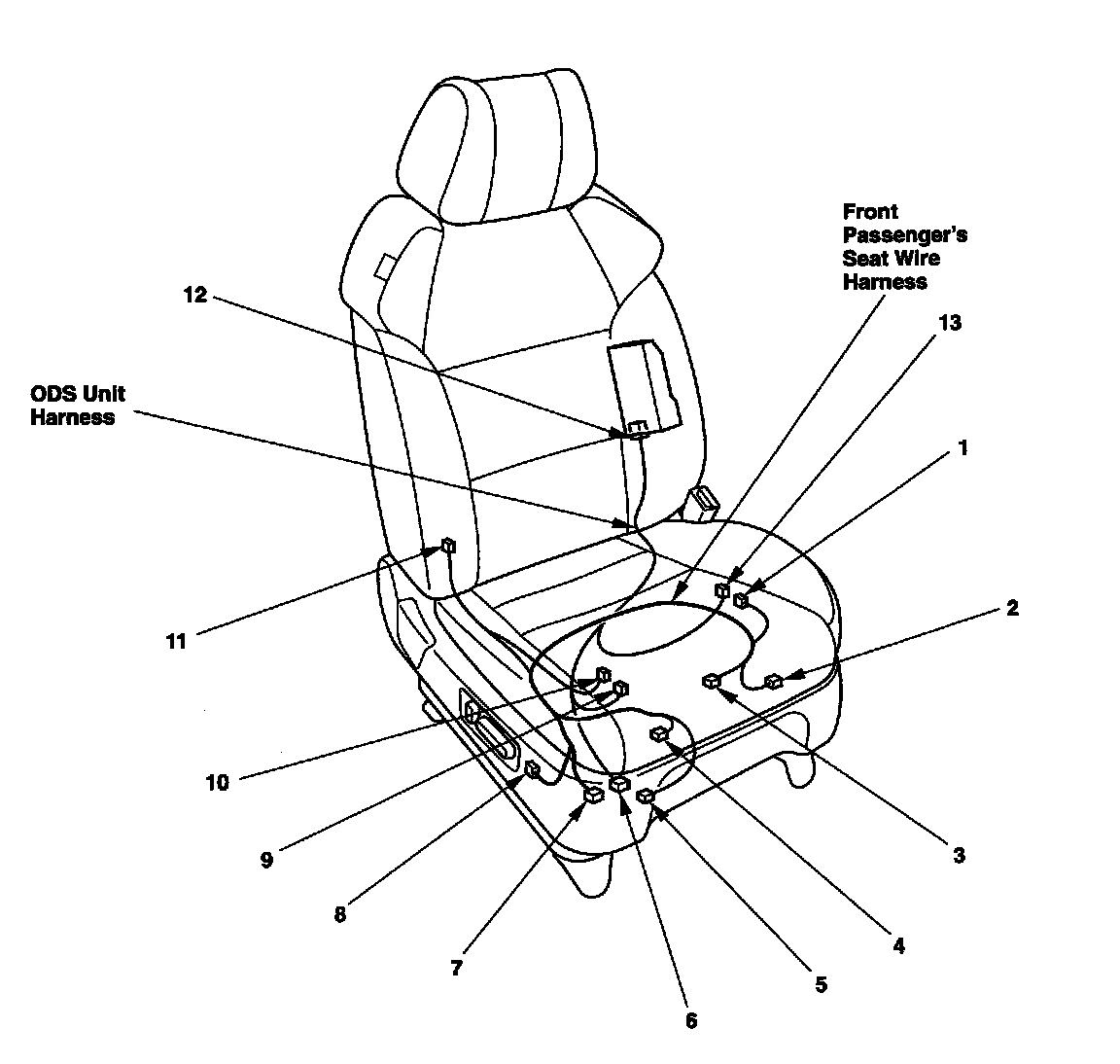

Harness Location View:



ODS Unit Harness:

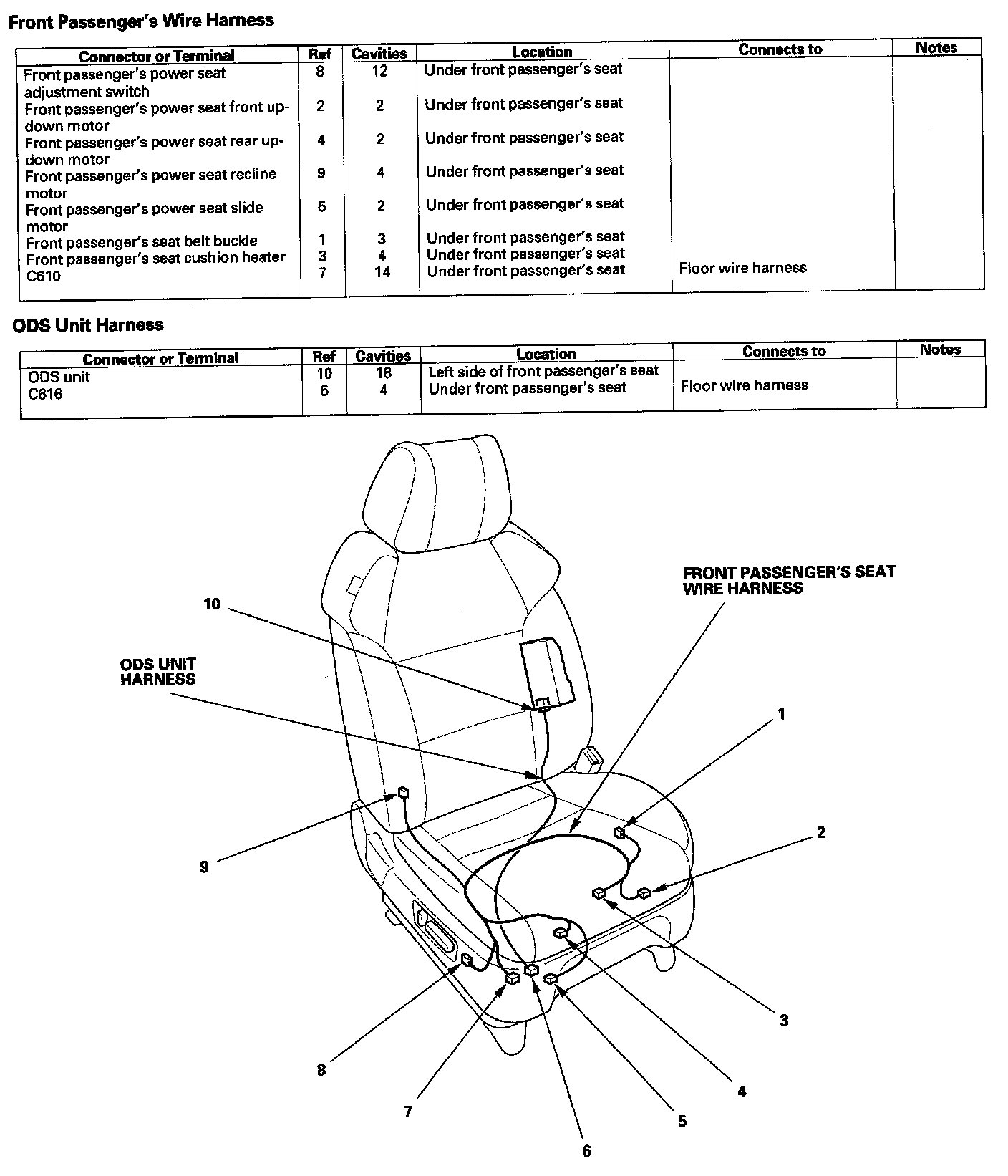

Front Passenger's Seat Wire Harness / ODS Unit Harness:
