Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Connector Locations
>>
Under-Hood Fuse/Relay Box (Relay Block Part)
Under-Hood Fuse/Relay Box (Relay Block Part)

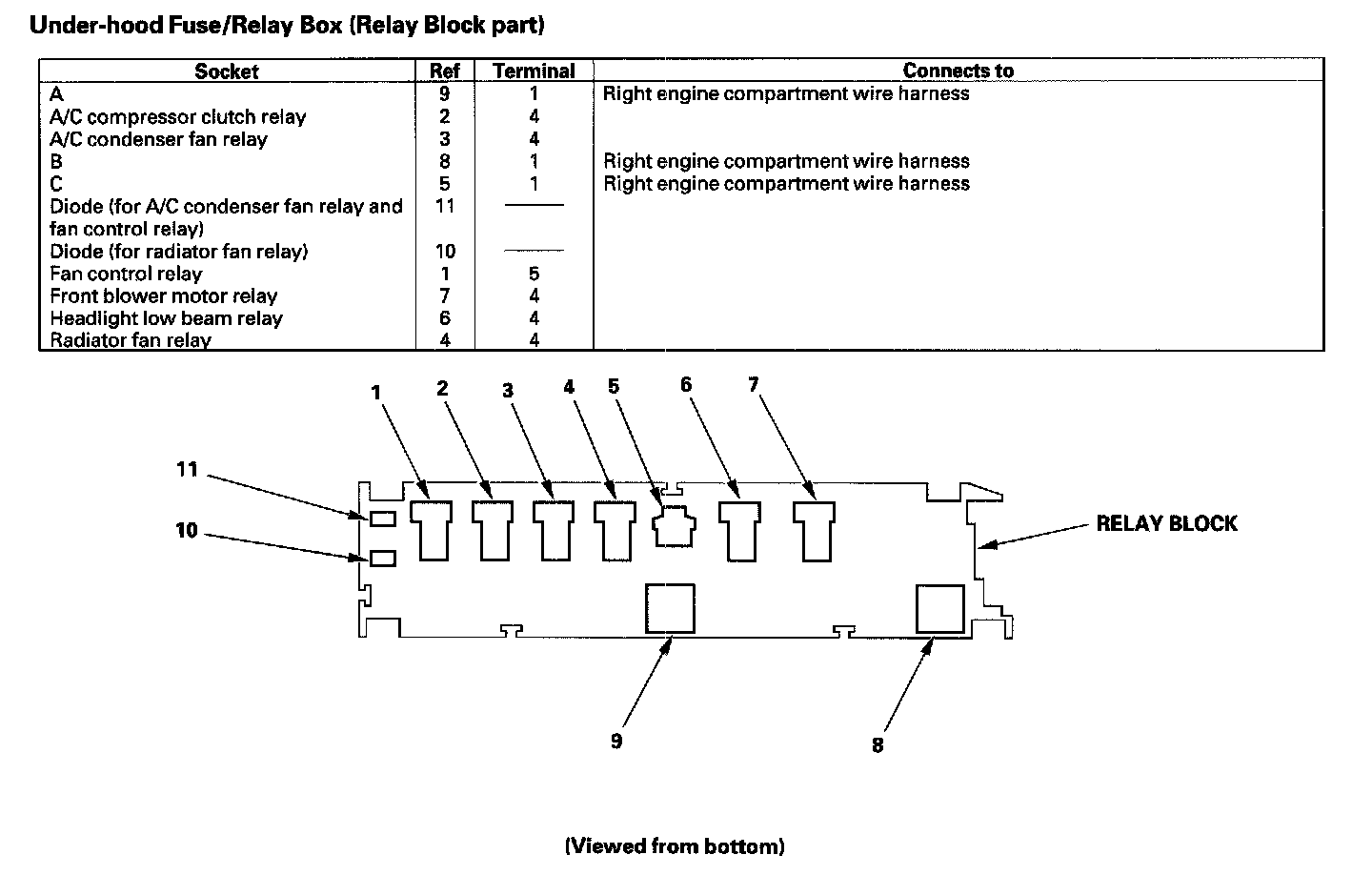

Under-hood Fuse/Relay Box (Relay Block Part):
