Multiplex Integrated Control System Circuit Diagram
Multiplex Integrated Control System Circuit Diagram

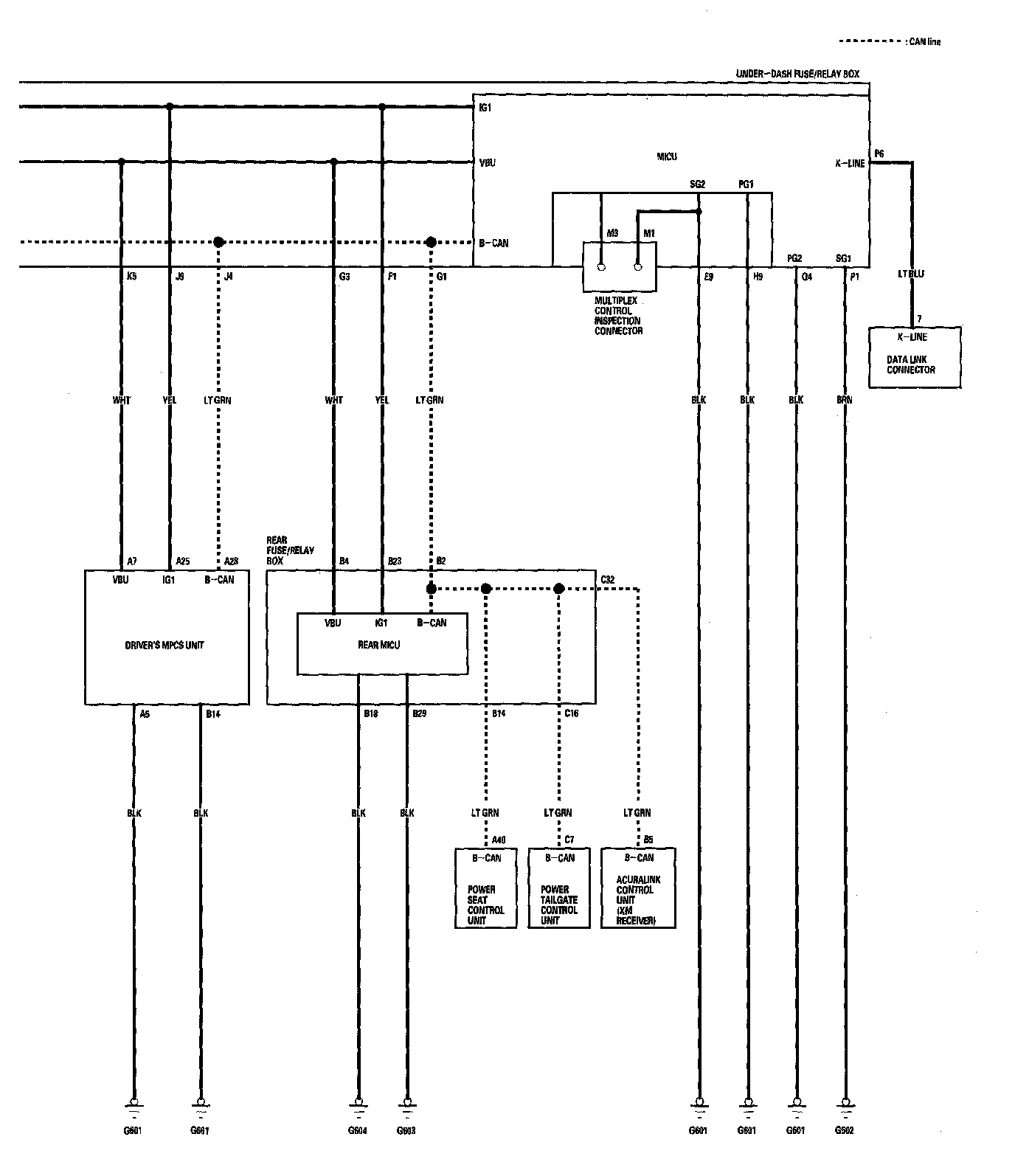

Multiplex Control System Circuit Diagram Part 1:

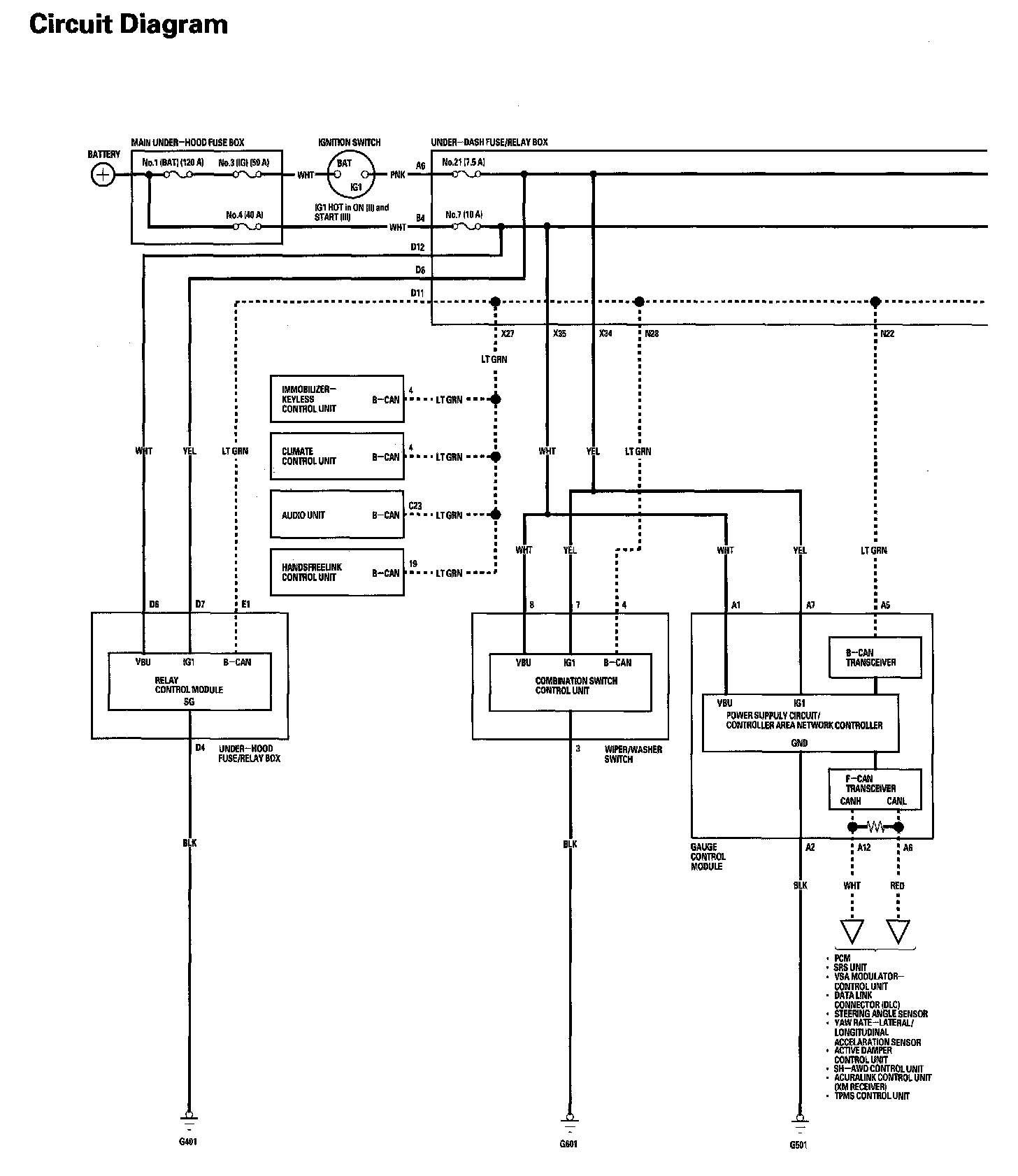

Multiplex Control System Circuit Diagram Part 2:
