EGR Valve: Service and Repair

EGR Valve Replacement

1. Remove the engine cover.
2. Remove the main under-hood fuse box.

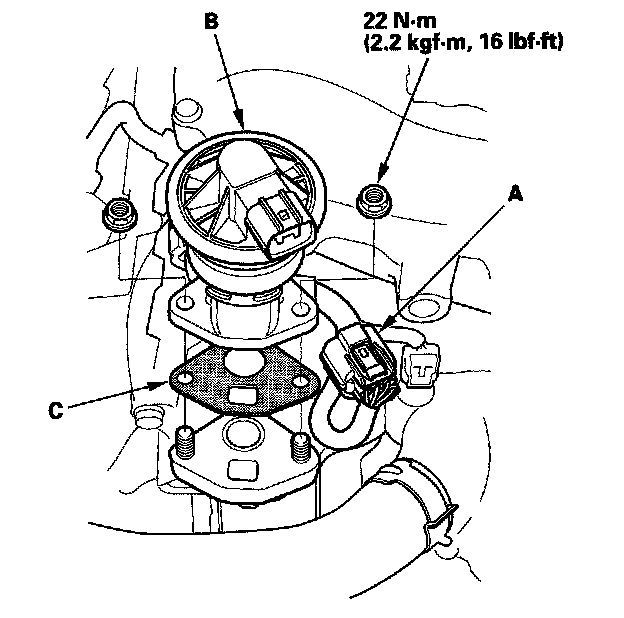

3. Disconnect the EGR valve 6P connector (A).
4. Remove the EGR valve (B).
5. Install the parts in the reverse order of removal with a new gasket (C).
