Trunk / Liftgate Closer Module: Locations

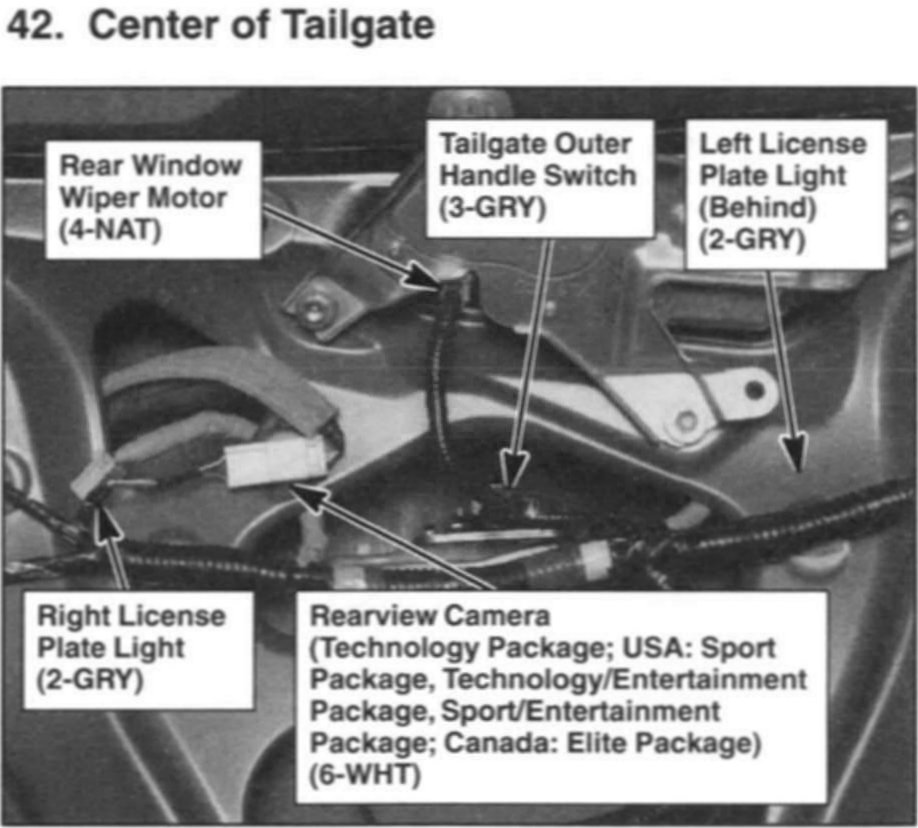

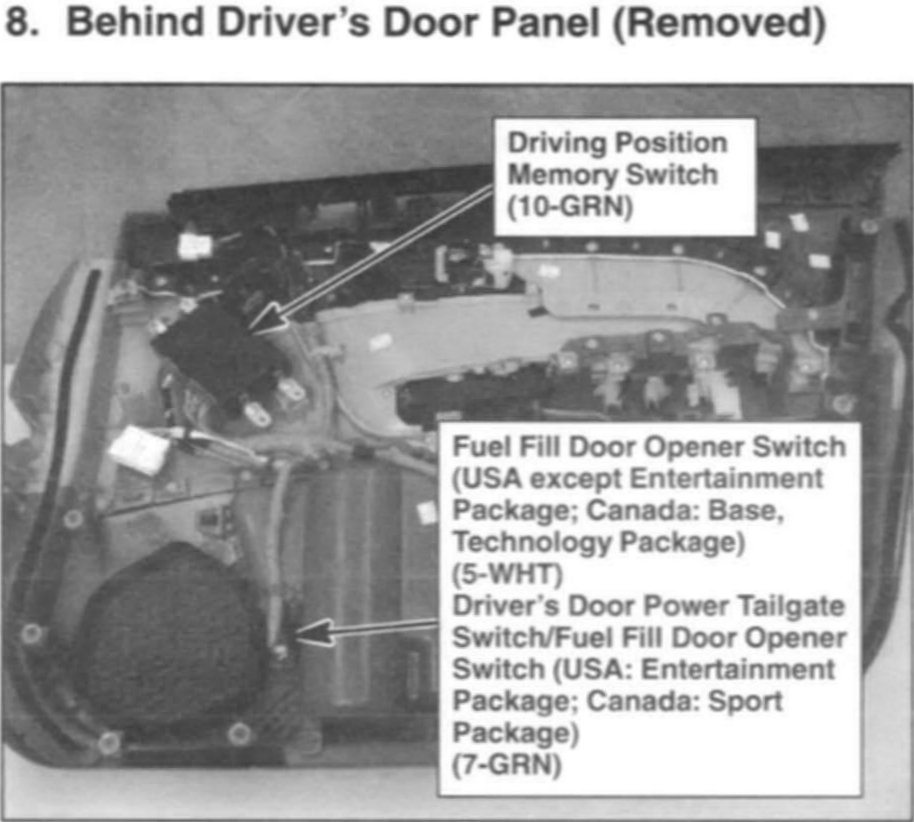

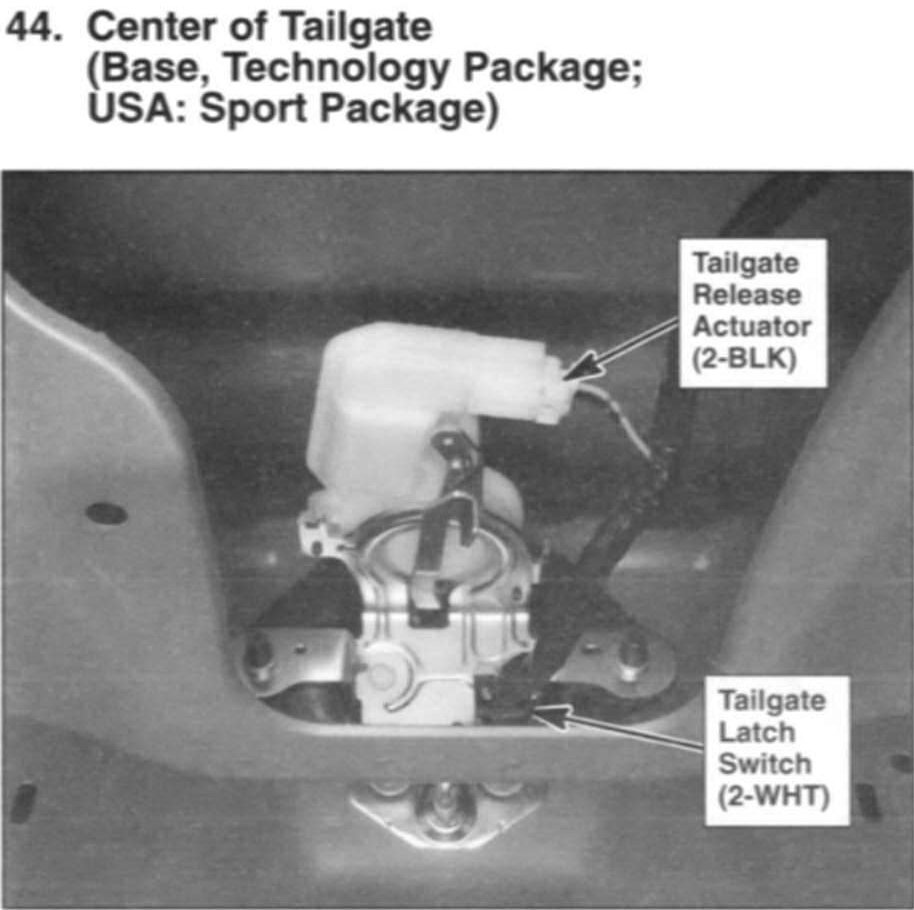

Keyless/Power Door Locks/Security System Component Location Index:

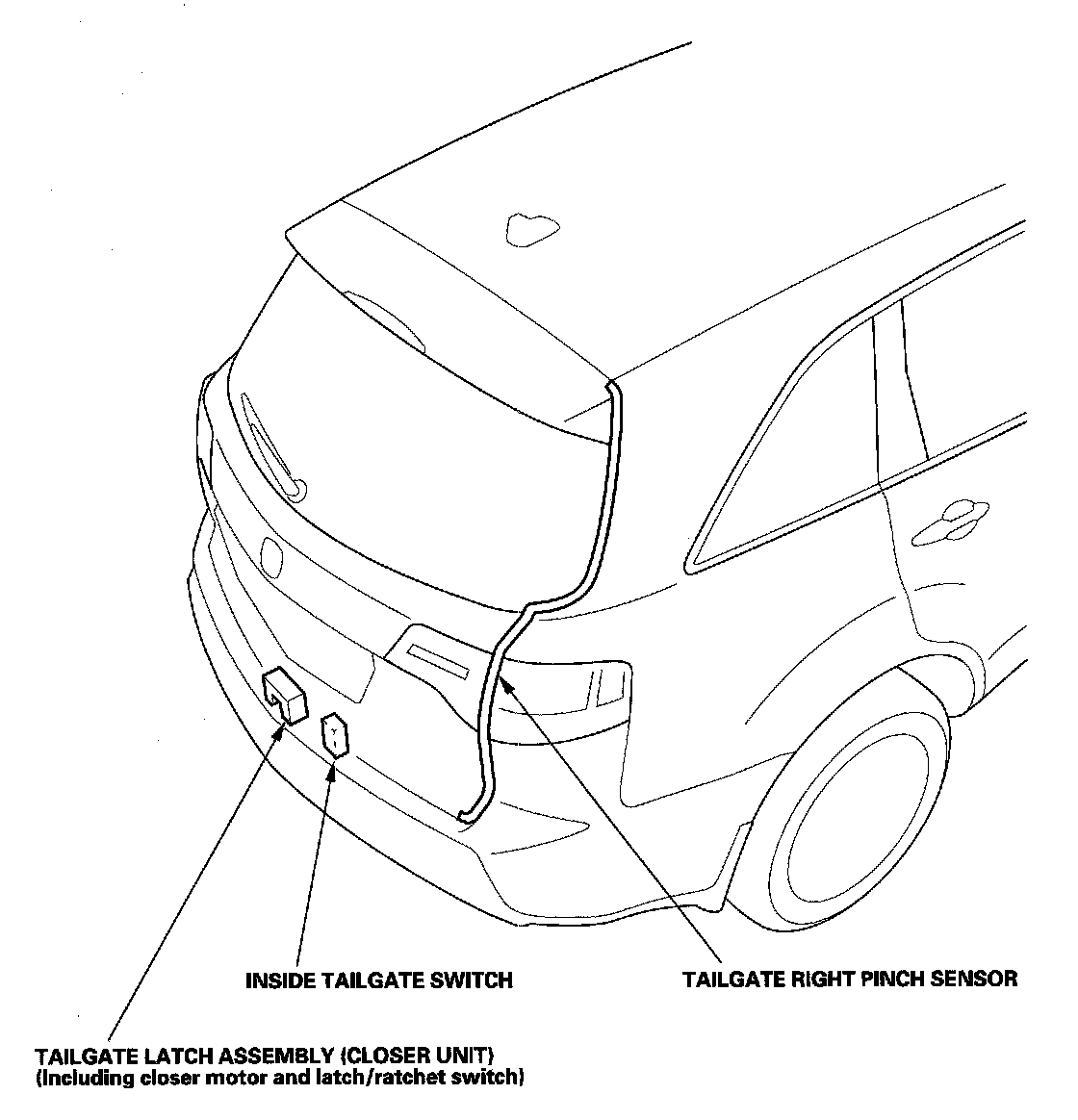

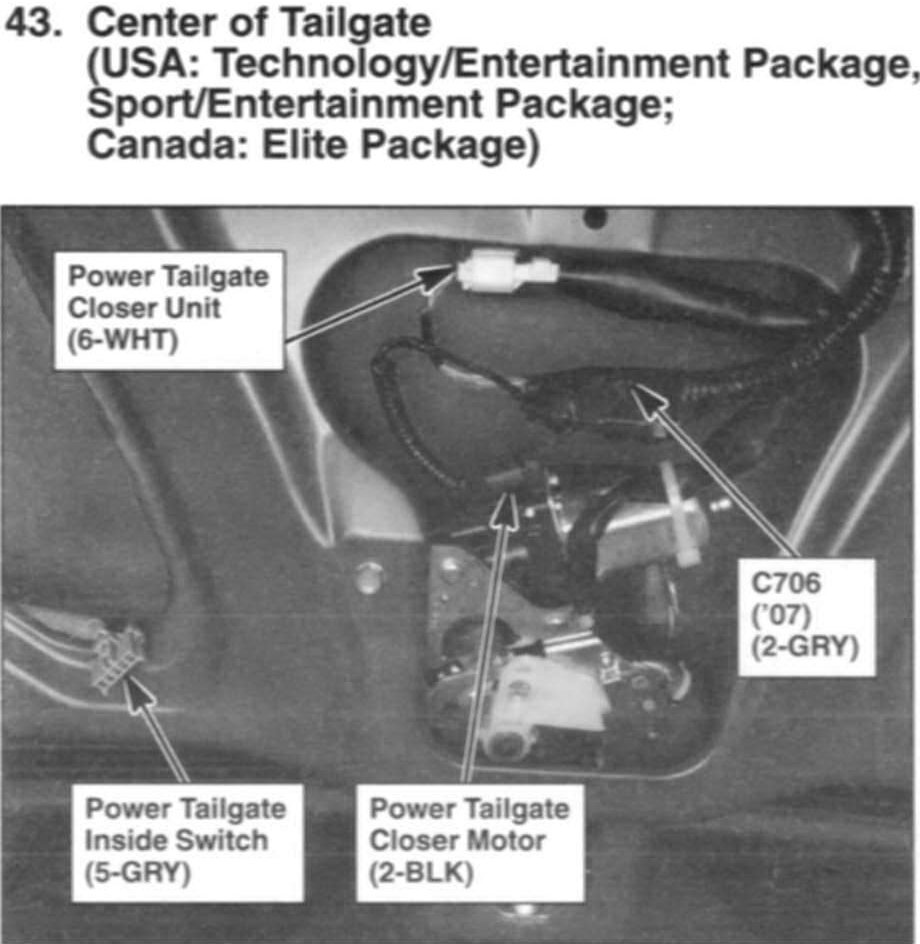

Power Tailgate Component Location Index:



Power Tailgate Component Location Index:
