Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Maintenance Data

Maintenance Data

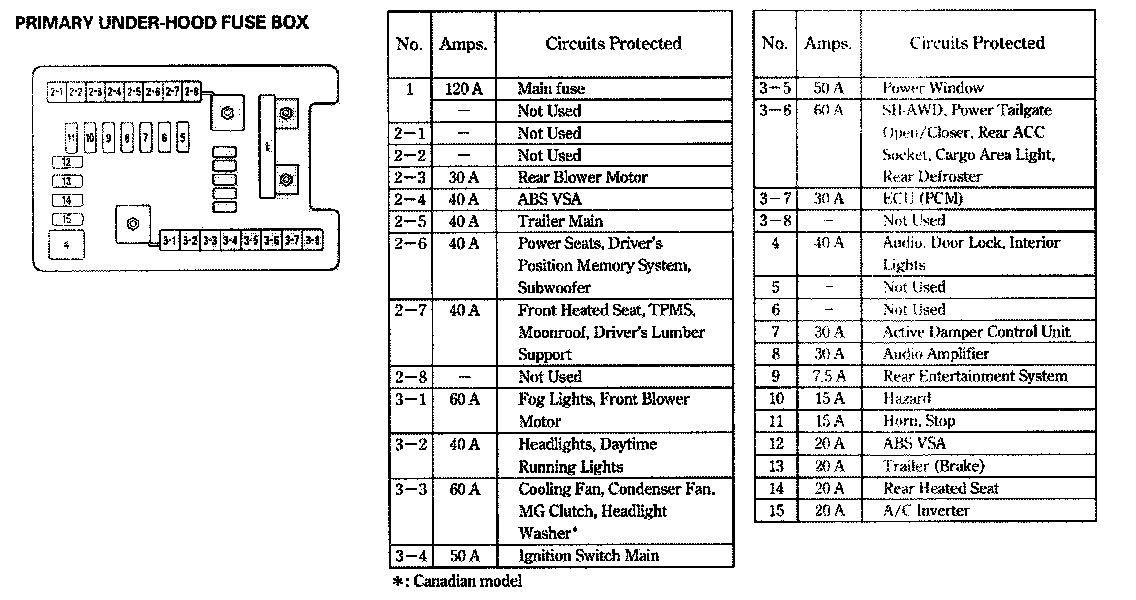

Primary Under-Hood Box:

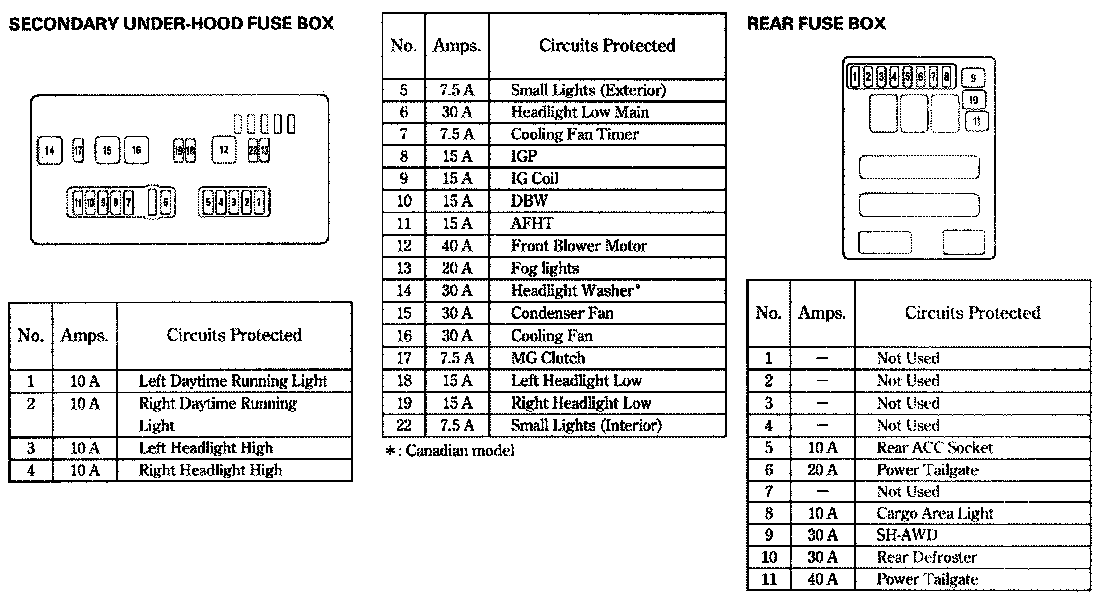

Seconday Under-Hood Box:

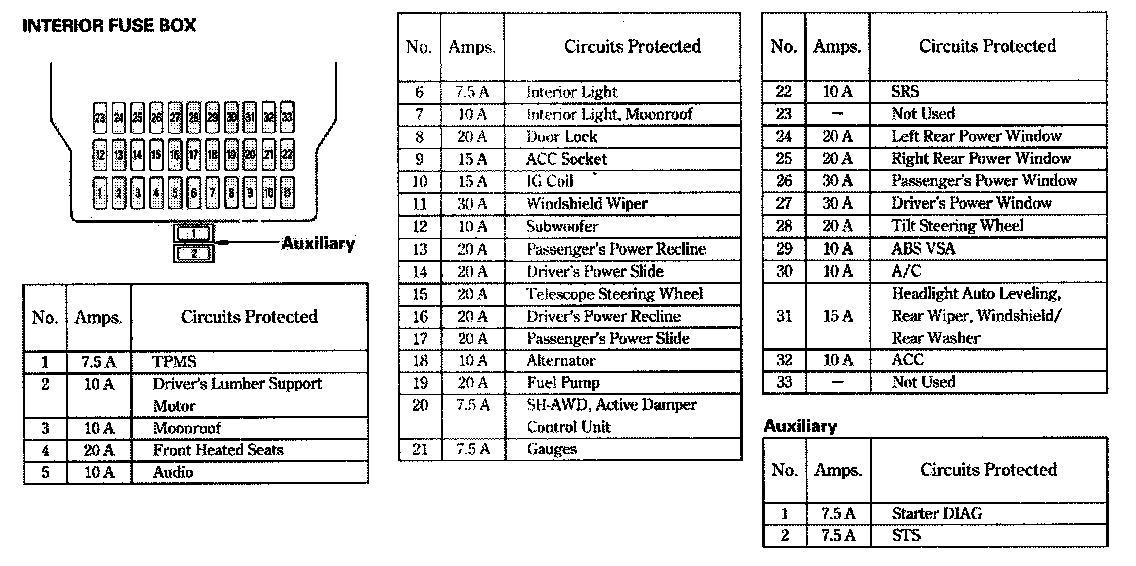

Interior Box:
