Starting System: Locations

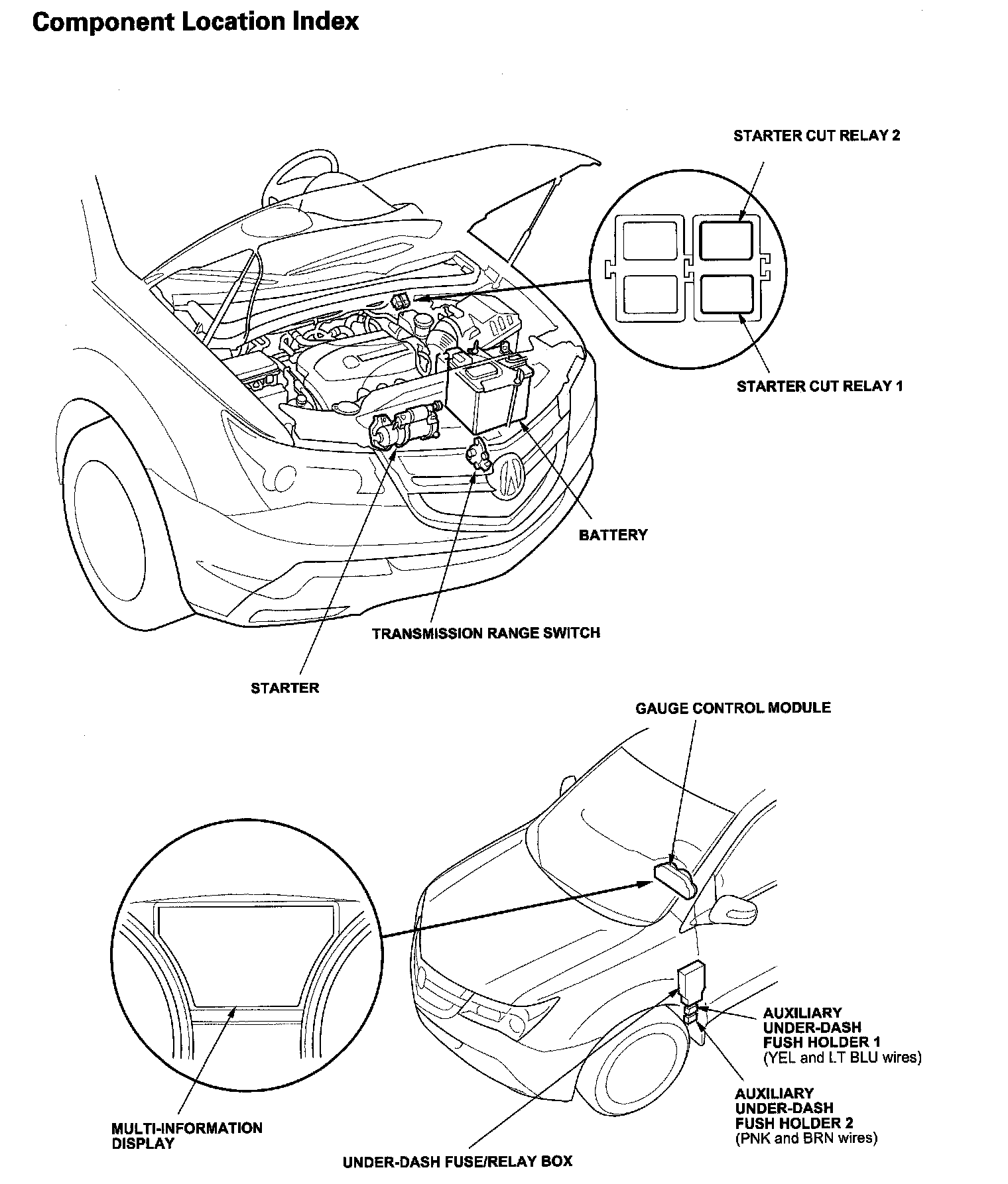

Starting System - Component Location Index:

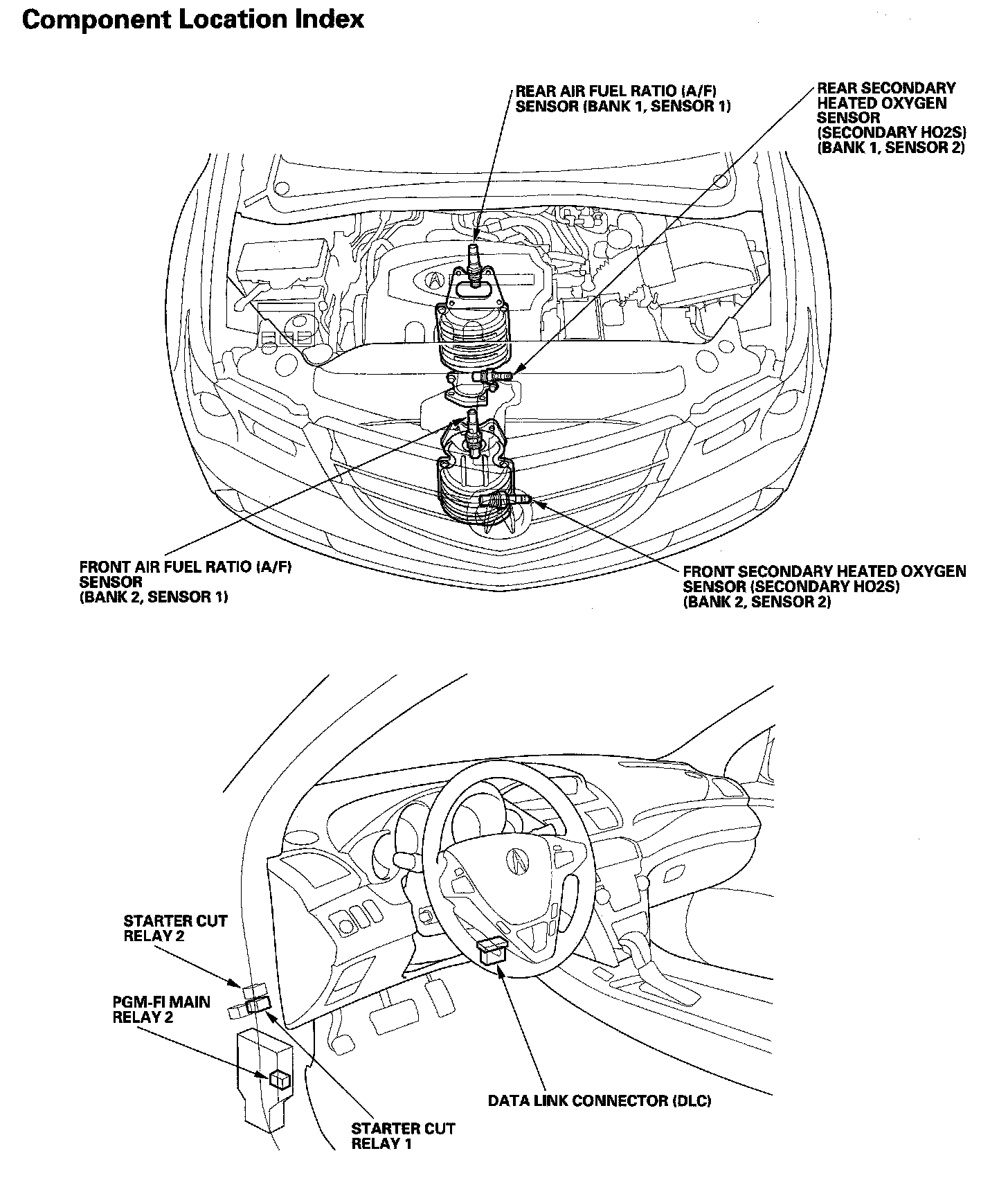

PGM-FI System Component Location Index:

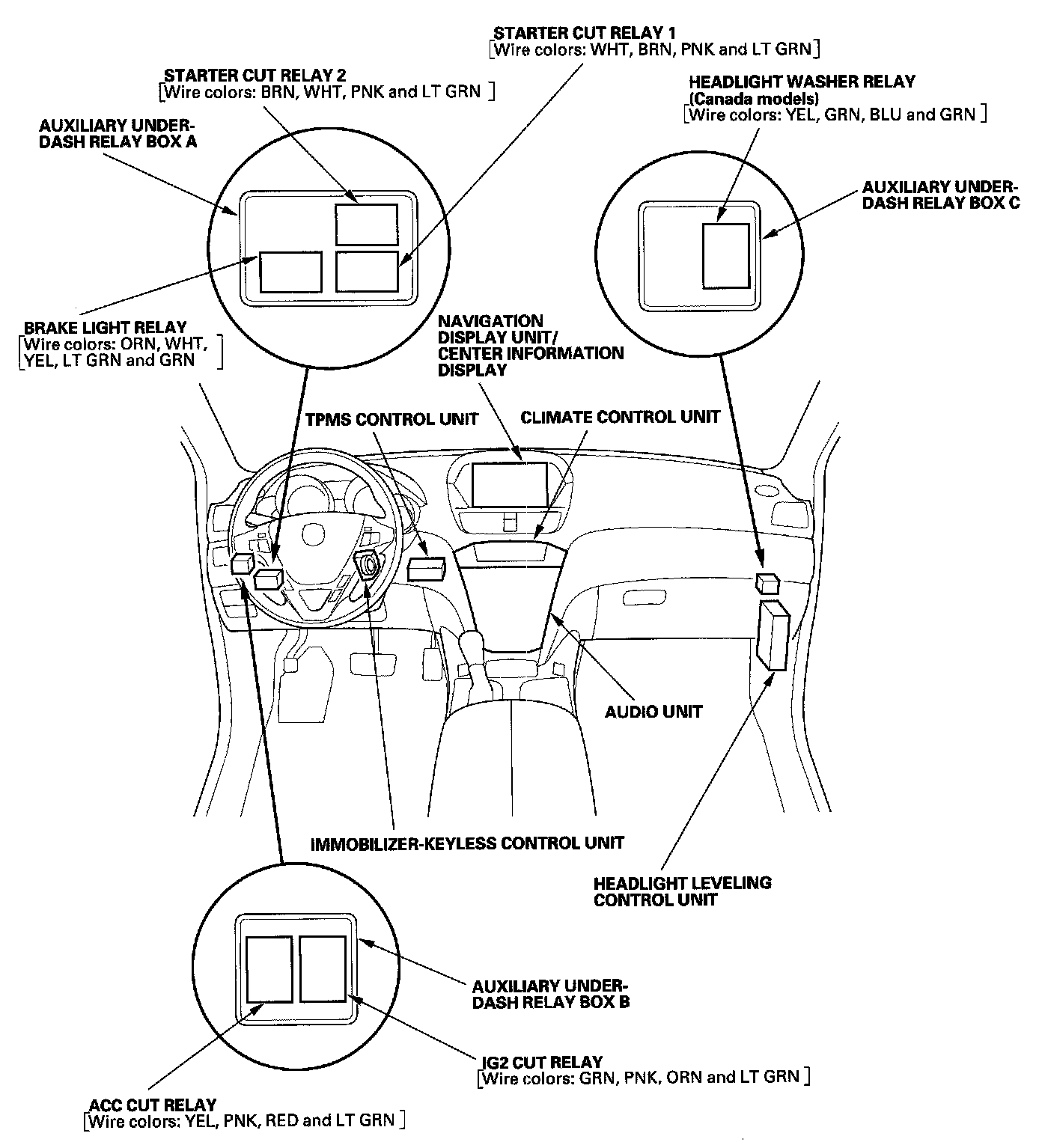

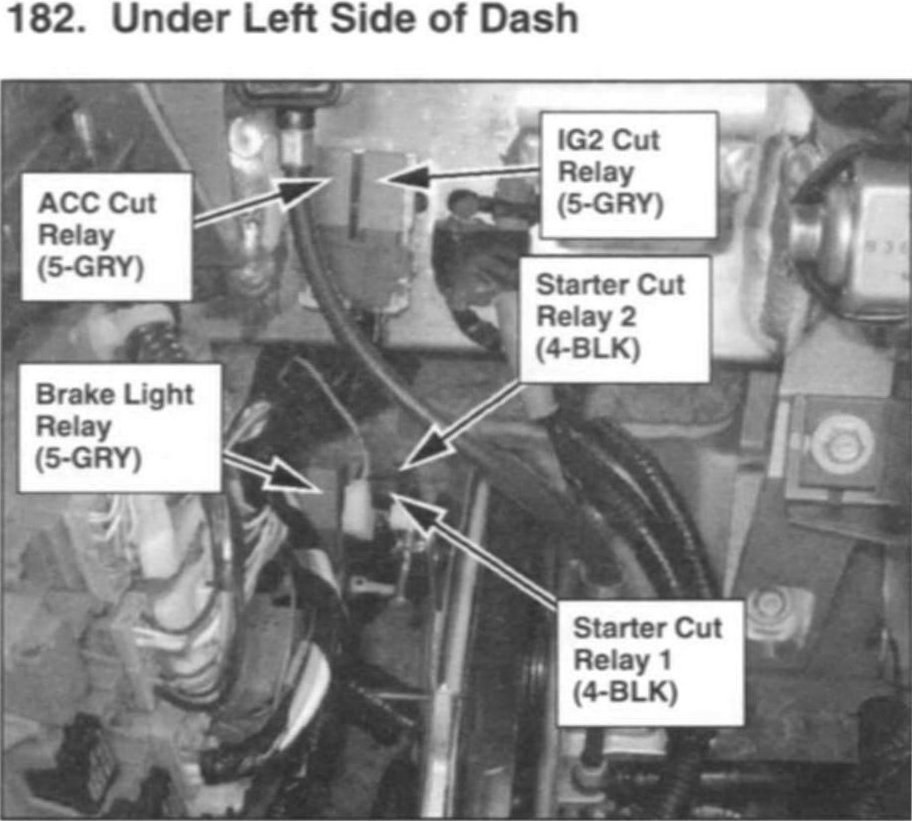

Relay And Control Unit Locations Dashboard:
