Control Unit: Service and Repair

SH-AWD Control Unit Replacement

NOTE: The SH-AWD control unit must be initialized. after replacement, other wise the SH-AWD system will not function.

1. Remove the rear left side trim panel cover.
2. Remove the cargo floor lid and the cargo box.

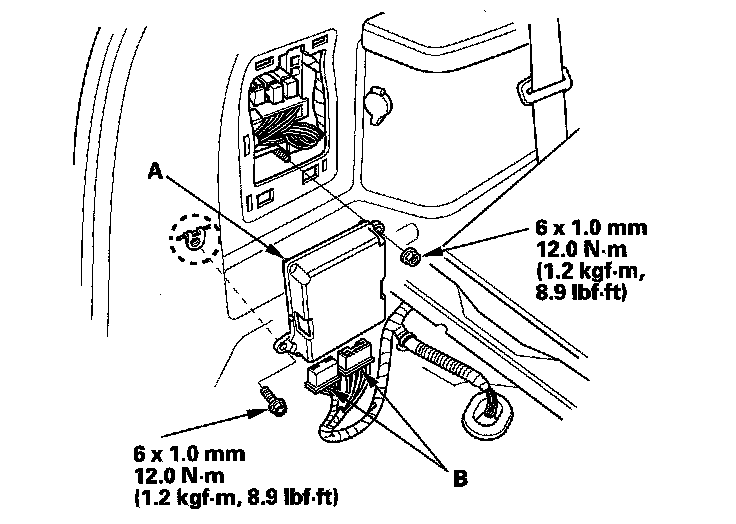

3. Remove the SH-AWD control unit (A).





4. Disconnect the SH-AWD control unit connectors (B).
5. Install the SH-AWD control unit in the reverse order of removal.
