SH-AWD Control Unit Initialization

SH-AWD Control Unit Initialization

Whenever the SH-AWD control unit is replaced, it must initialized.

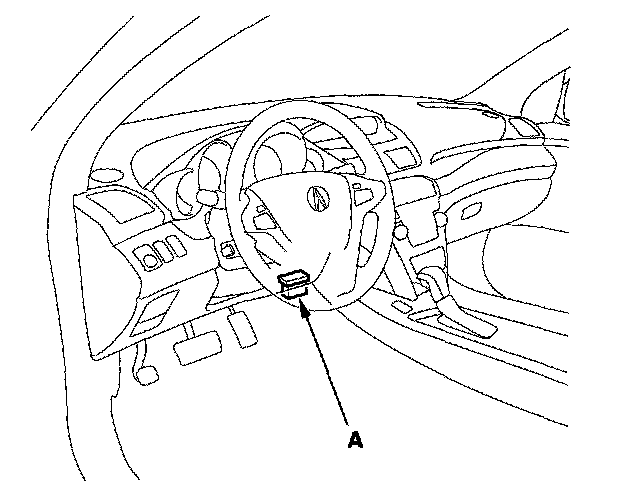

1. With the ignition switch OFF, connect the HDS to the 16P DLC (A) behind the driver's dashboard lower cover.

2. Turn the ignition switch ON (II) go to the miscellaneous test menu/neutral menu/all sensor and follow the prompts on the HDS screen.

NOTE: See the HDS help menu for specific instructions.
