Differential Lock: Testing and Inspection

SH-AWD Control Unit Inputs and Outputs
The SH-AWD control unit terminal voltages and the measuring conditions for the SH-AWD control system. Do the SH-AWD inputs and outputs test with the SH-AWD connectors connected.

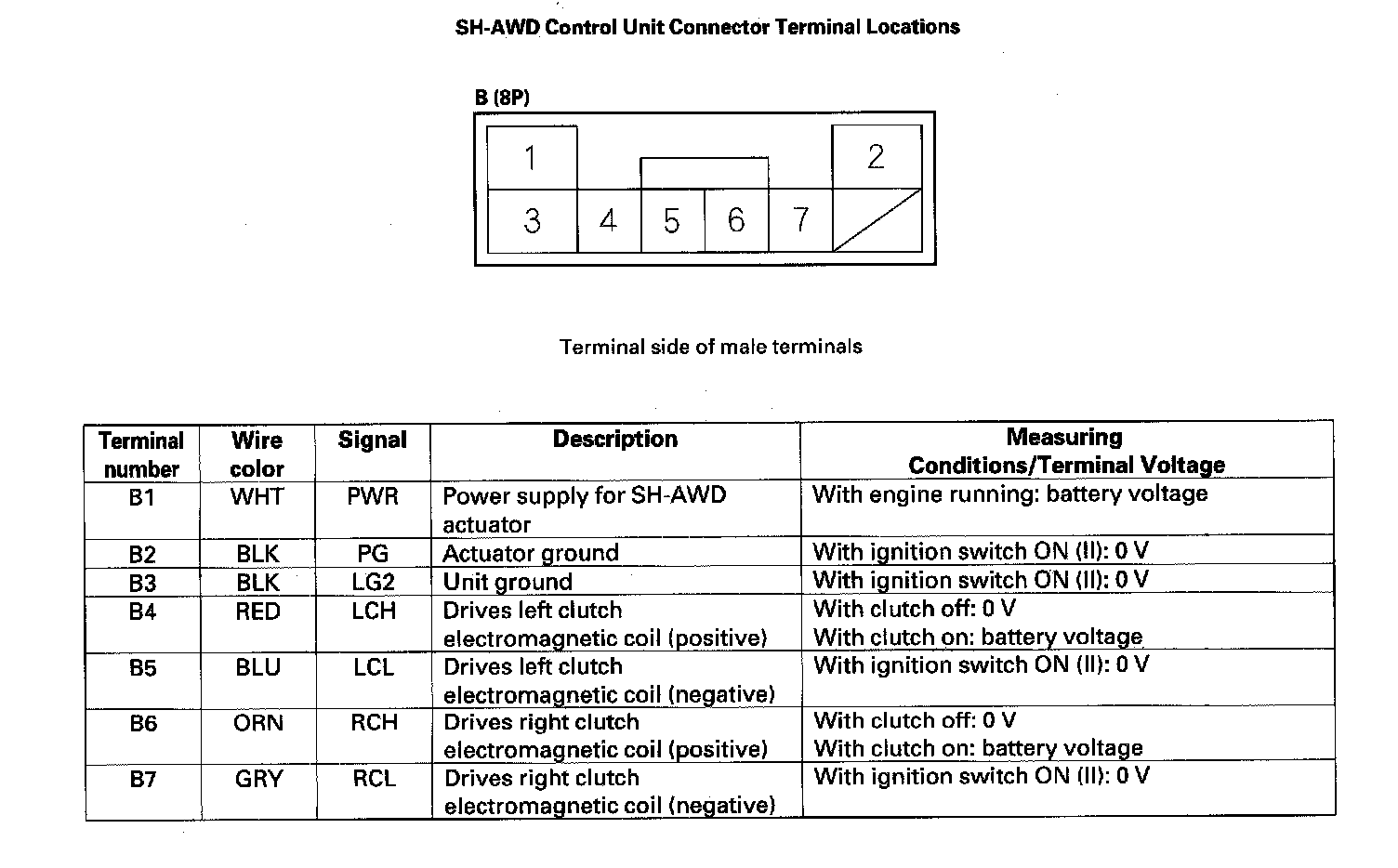

SH-AWD Control Unit Inputs And Outputs (Part 1):

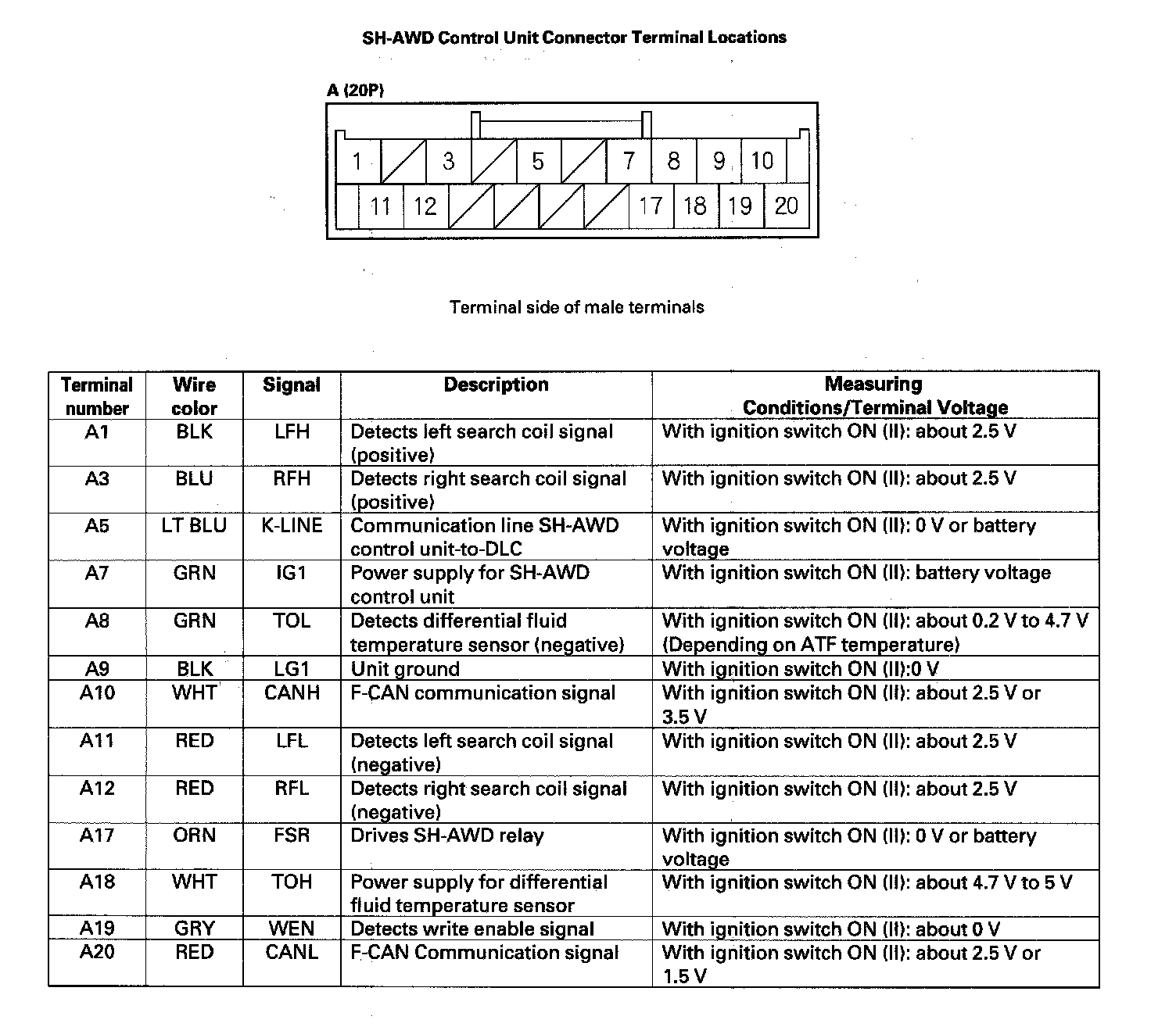

SH-AWD Control Unit Inputs And Outputs (Part 2):
