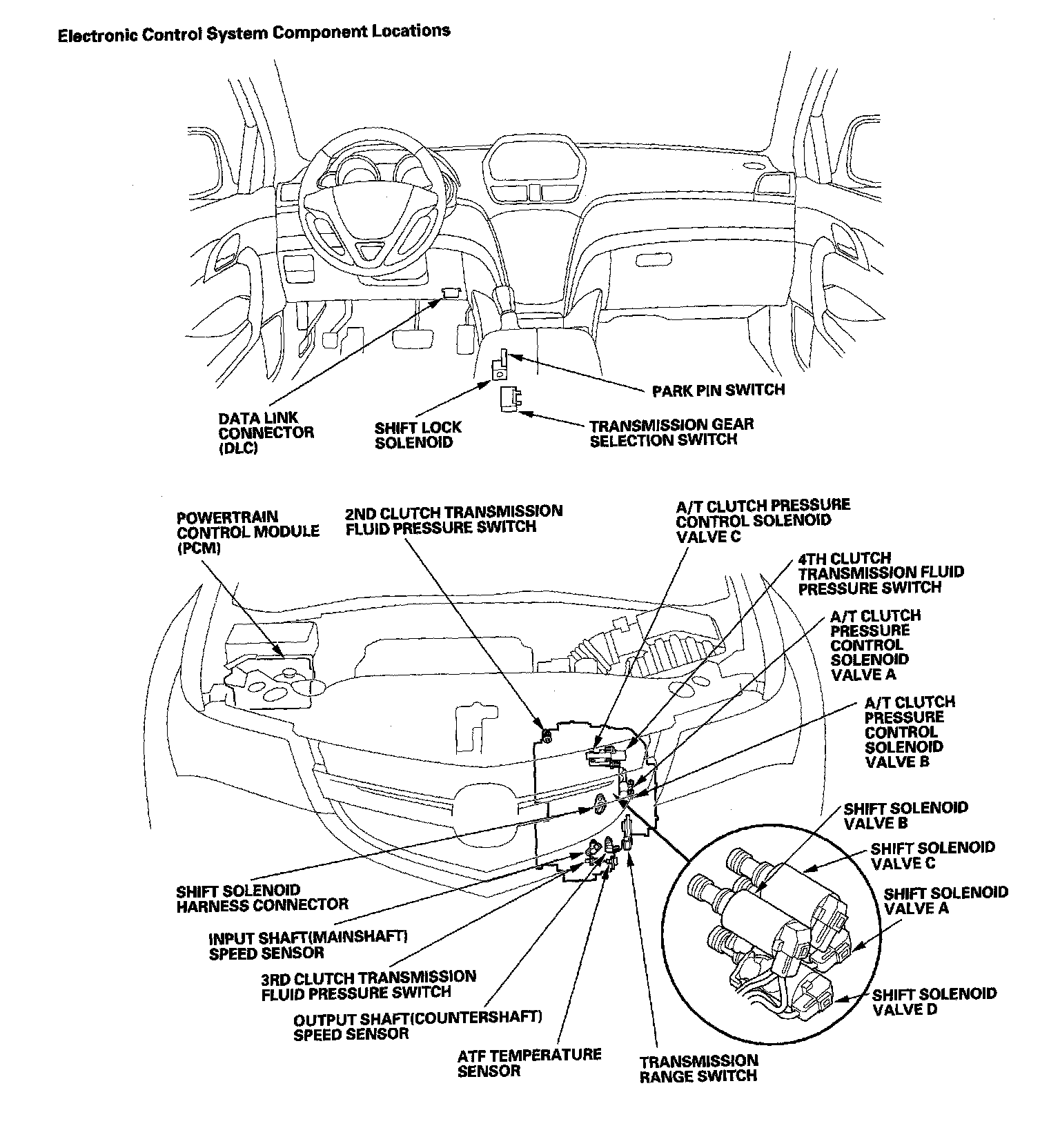

Electronic Control System Component Locations

Electronic Control System Component Locations

Electronic Control System Component Locations:
