Navigation Display: Service and Repair

Navigation Display Unit Removal/Installation

NOTE: Put on gloves to protect your hands. Take care not to scratch the dashboard.

1. Remove the center panel.

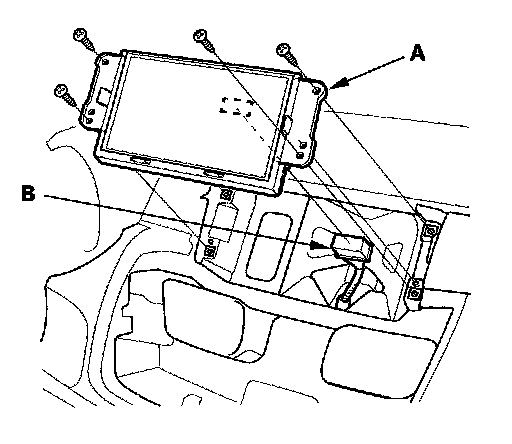

2. Remove the screws, then pull out the navigation display unit (A).
3. Disconnect the connector (B) and remove the navigation display unit.
4. Install the unit in the reverse order of removal.
