Navigation System: Service and Repair

DVD-ROM Replacement

NOTE: When the DVD-ROM is re-inserted or replaced, a map match must be done. This system uses a white labeled DVD (possibly gray for Canada).

1. Remove the passenger's console trim.
2. Turn the ignition switch ON (II).

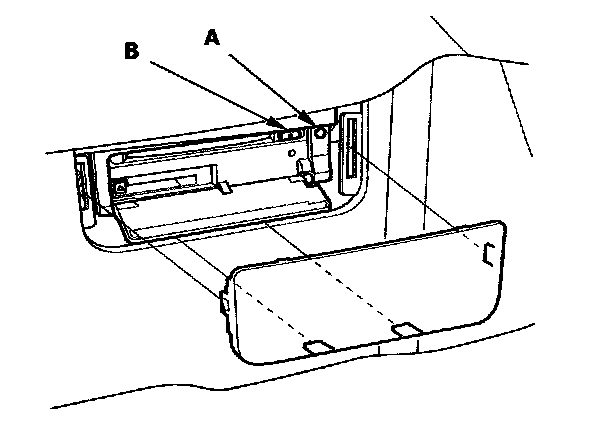

3. Push the open button (A) located on the right side of the navigation unit.
4. Press the EJECT button (B).
5. Remove the DVD-ROM.
6. Insert the new DVD-ROM with the white label facing up.
7. Close the front cover. Do not turn the ignition switch OFF; watch the navigation screen until the data is down loaded to the navigation unit.

NOTE: After servicing, the front cover and PC card slot door must be closed. If you start up the navigation system with the front cover or PC card slot door open, the display will indicate an error message.
