Structural Brace: Service and Repair

Rear Damper Gusset Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:
- Cargo area side trim panel.
- Floor side spacer.

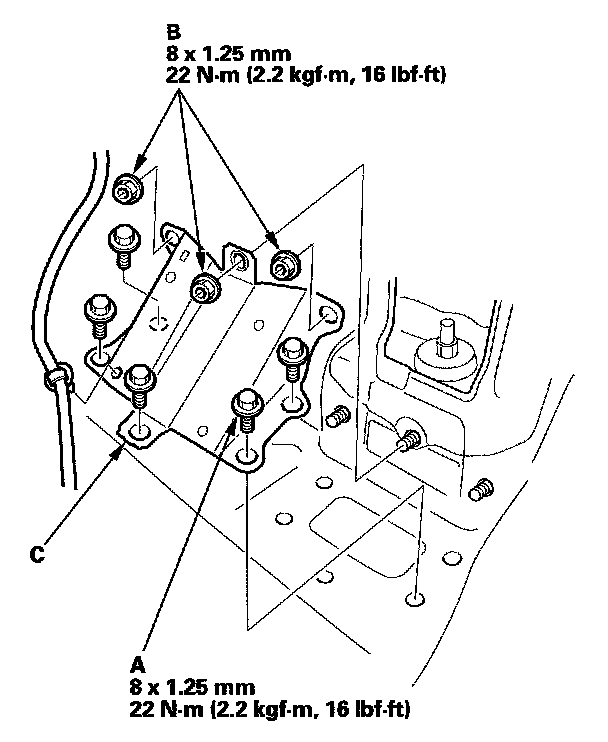

2. Remove the bolts (A) and nuts (B), then remove the rear damper gusset (C).
3. Install the gusset in the reverse order of removal.
