Power Mirror

Power Mirror Replacement

1. Raise the door glass fully.
2. Remove these items:
- Door panel
- Plastic cover, as needed




3. Disconnect the connector (A), and detach the harness clip (B).




4. Remove the nuts.

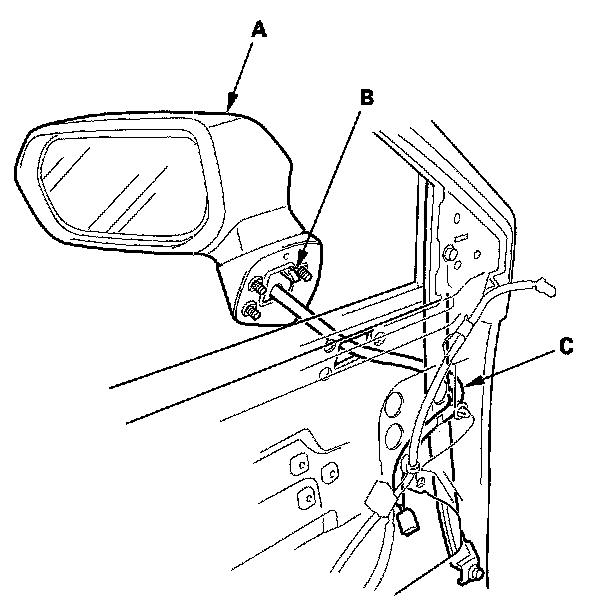

5. While holding the mirror (A), detach the clip (B), then remove the mirror, and pull the harness (C) out through the hole in the door. Take care not to scratch the door.
6. Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
