Front Splash Shield

Front Splash Shield Replacement

NOTE: Take care not to scratch the body.

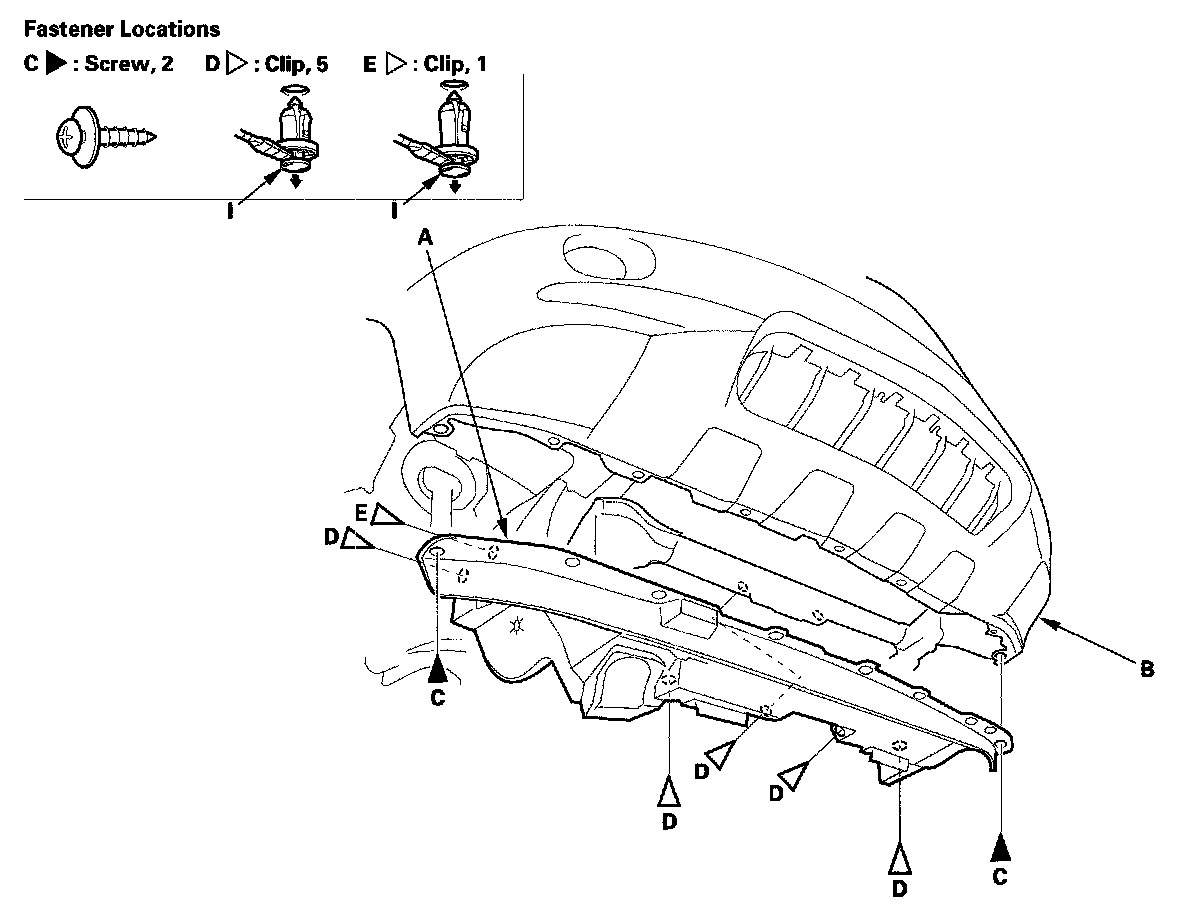

1. Remove the splash shield (A).
1. From under the front bumper (B), remove the screws (C).
2. From under the body, remove the clips (D, E).
3. Pull the splash shield out.






NOTE: To remove the clips C and D, pry the inner the clip up at the edge near the line (I) on its head.

2. Install the splash shield in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
