Fuel Pipe Protector

Fuel Pipe Protector Replacement

NOTE:
- Take care not to scratch the body.
- Put on gloves to protect your hands.

1. Remove the left rear wheel.

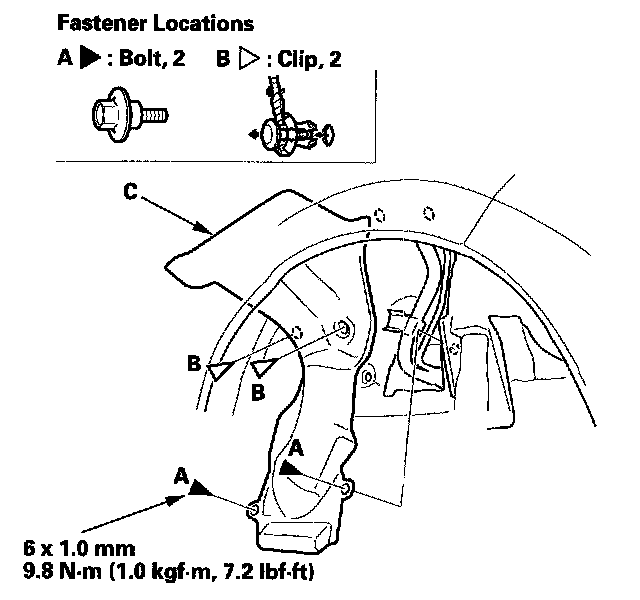

2. Remove the bolts (A) and clips (B), then remove the fuel pipe protector (C).
3. Install the protector in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
