Cellular Phone

Hands-FreeLink Control Unit Inputs And Outputs:



210. HFL-Voice Control Switch (Technology Package):

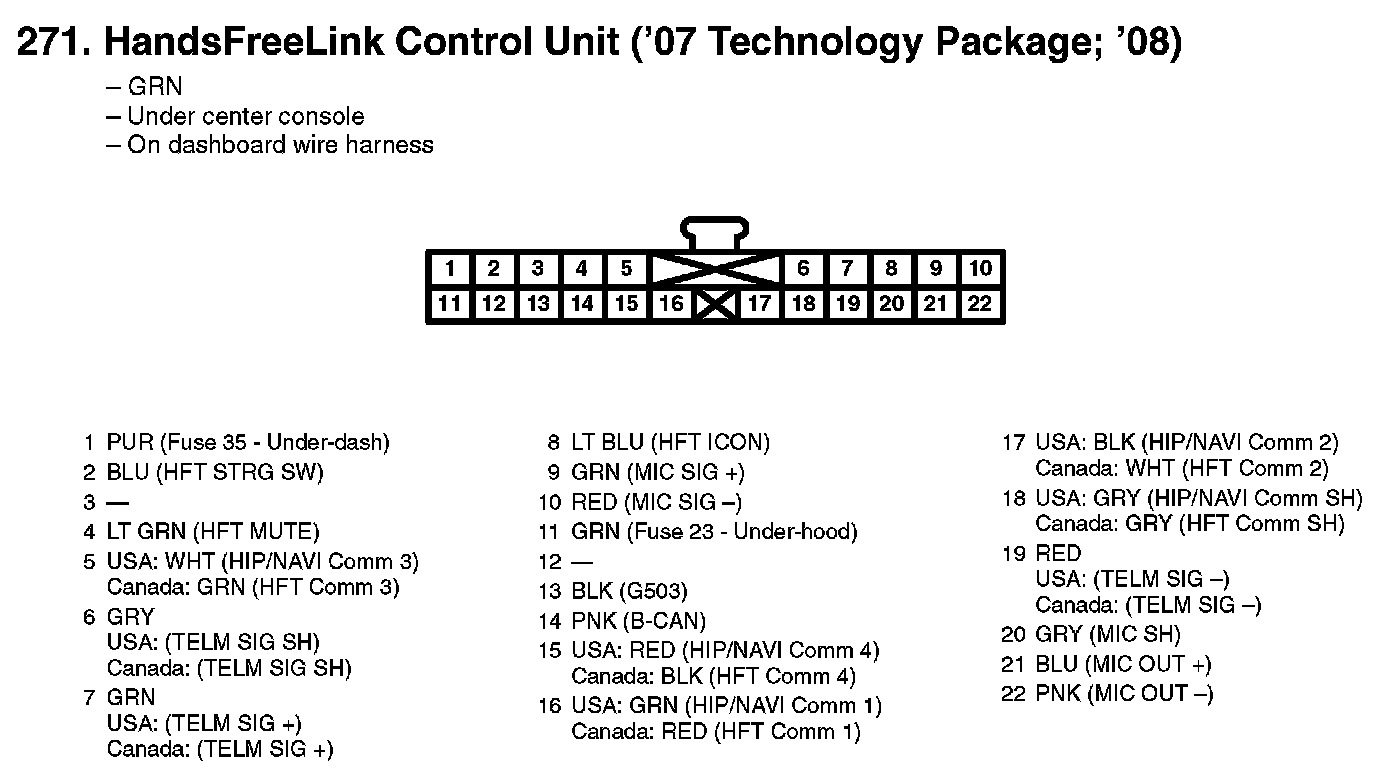

271. HandsFreeLink Control Unit ('07 Technology Package; '08):



186. Interface Dial (Technology Package):
