System Diagram

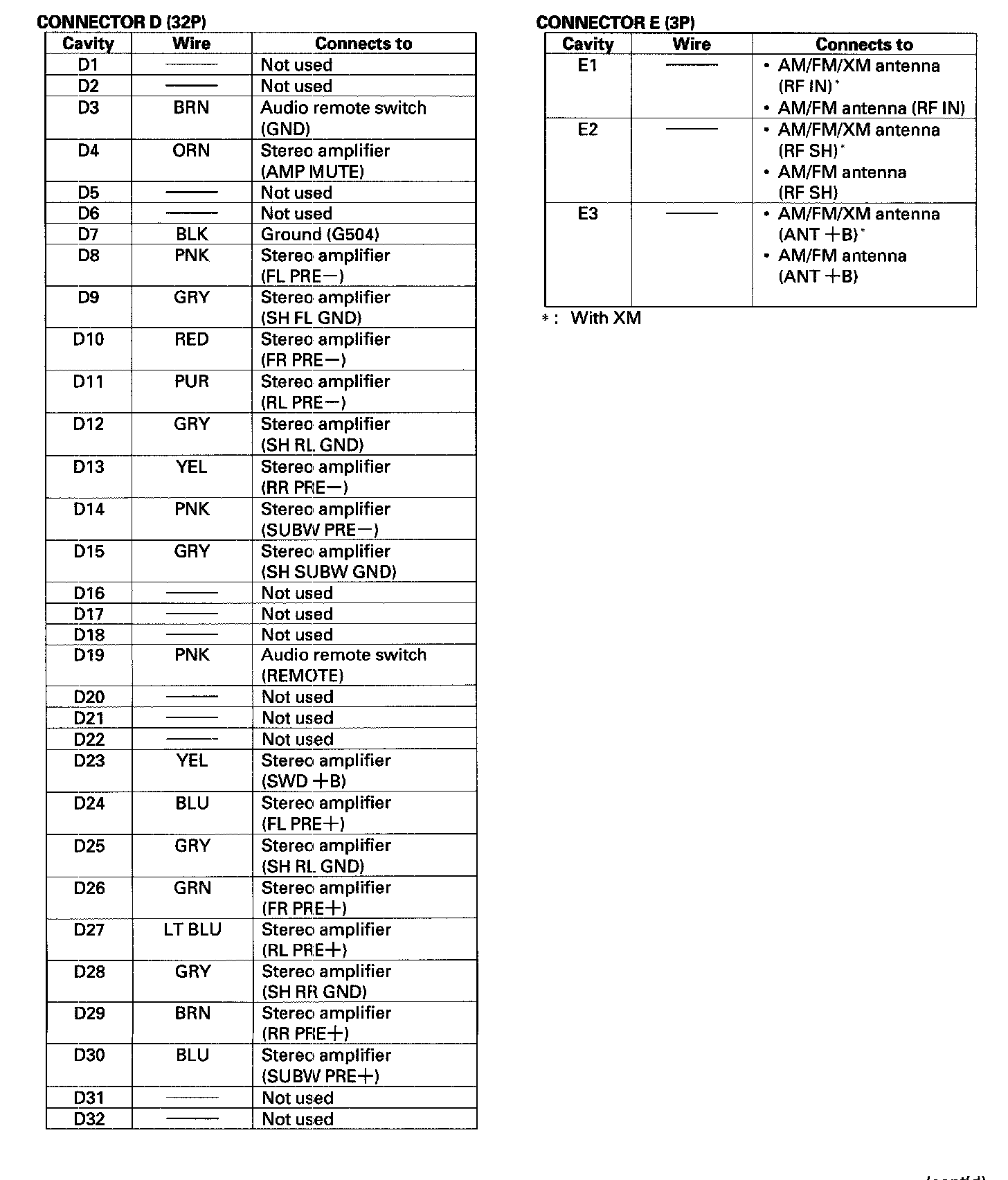

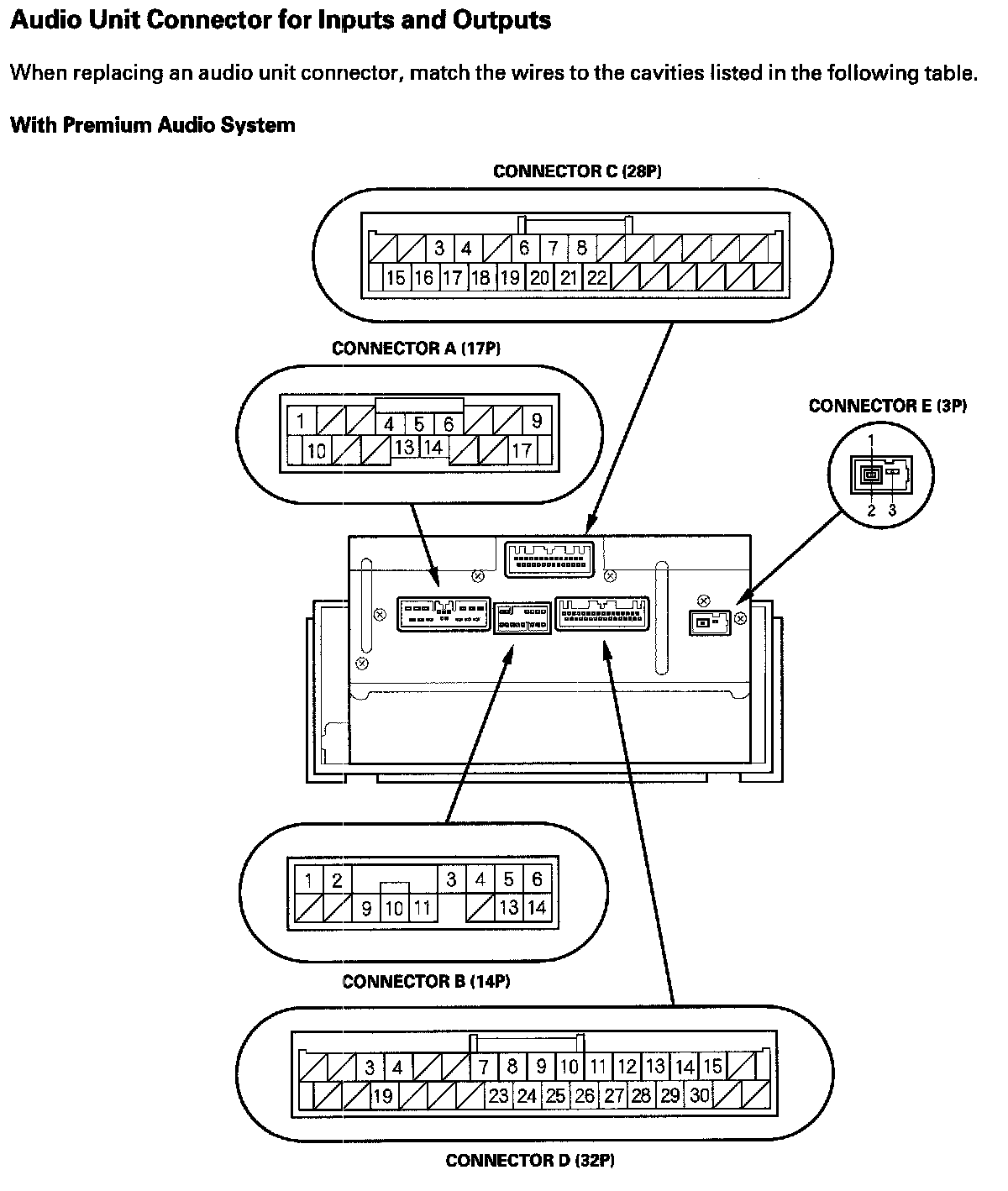

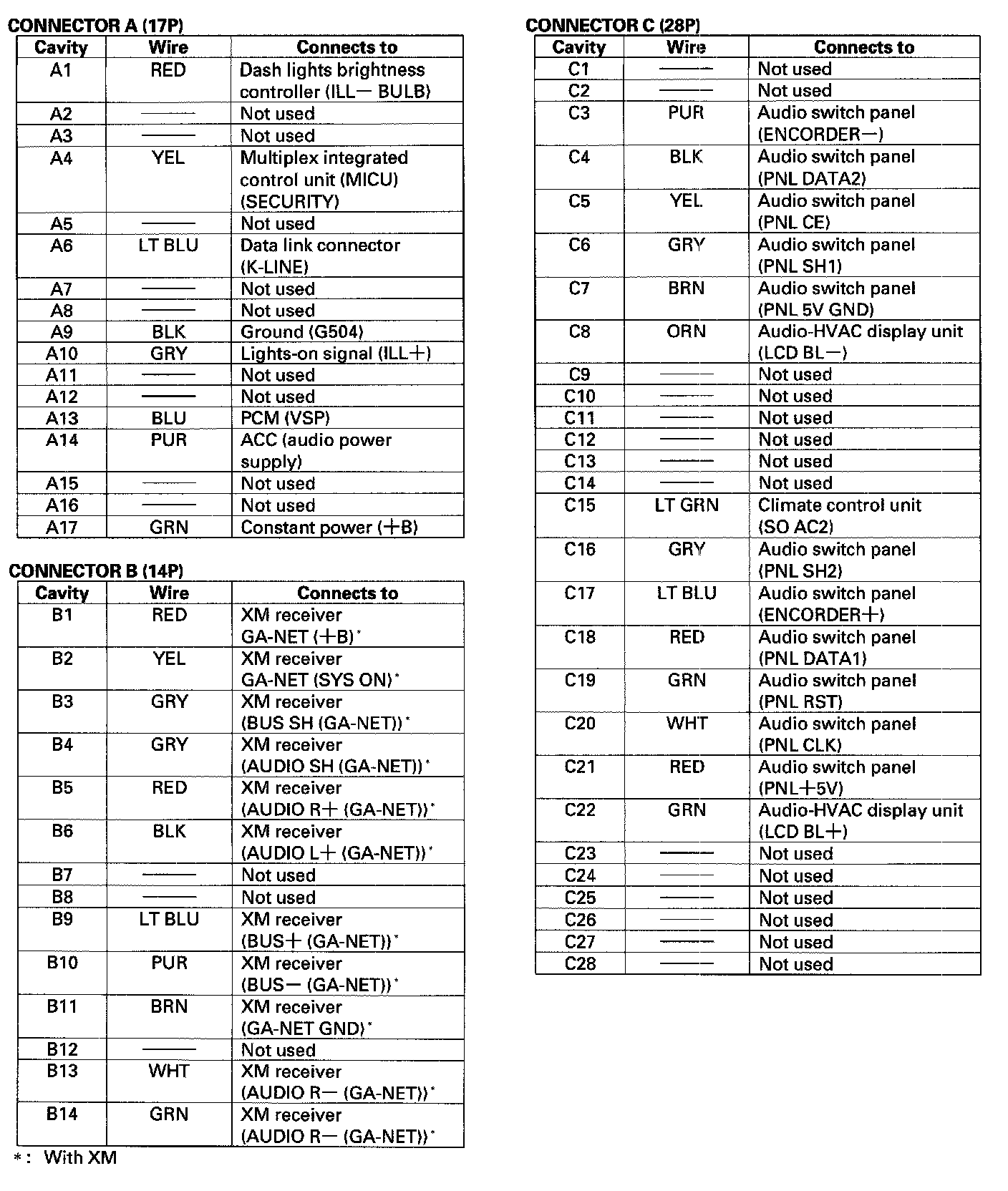

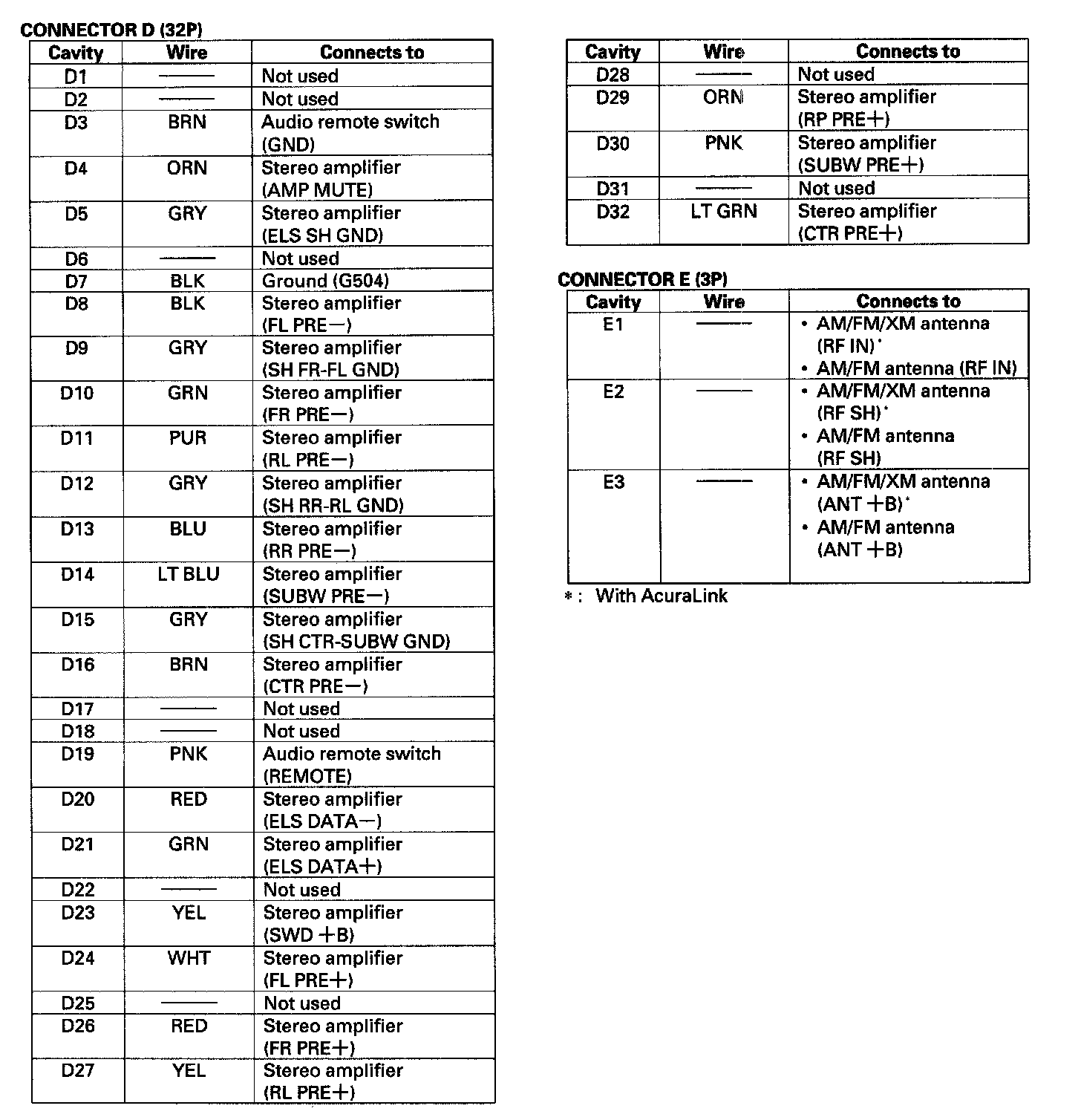

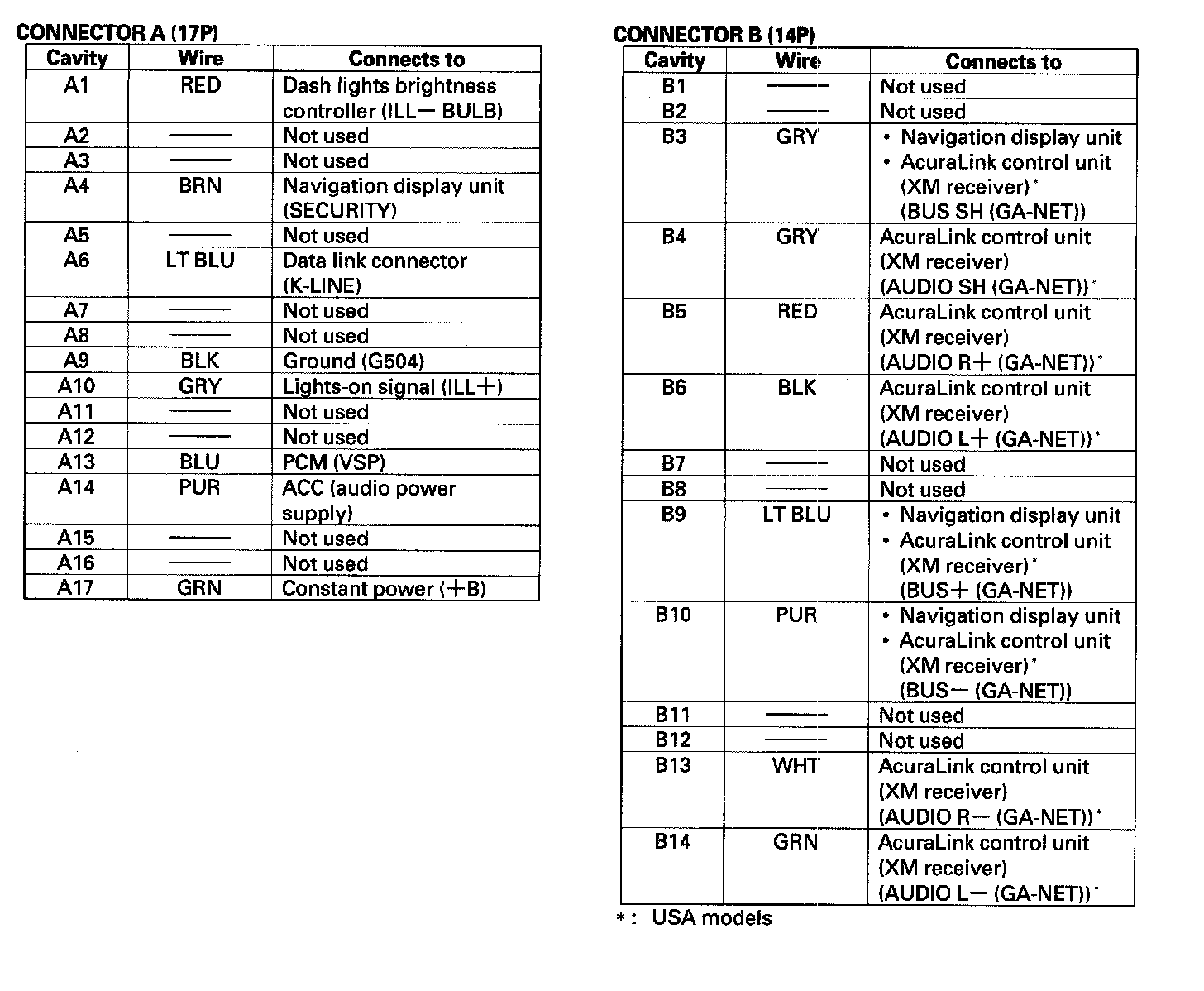

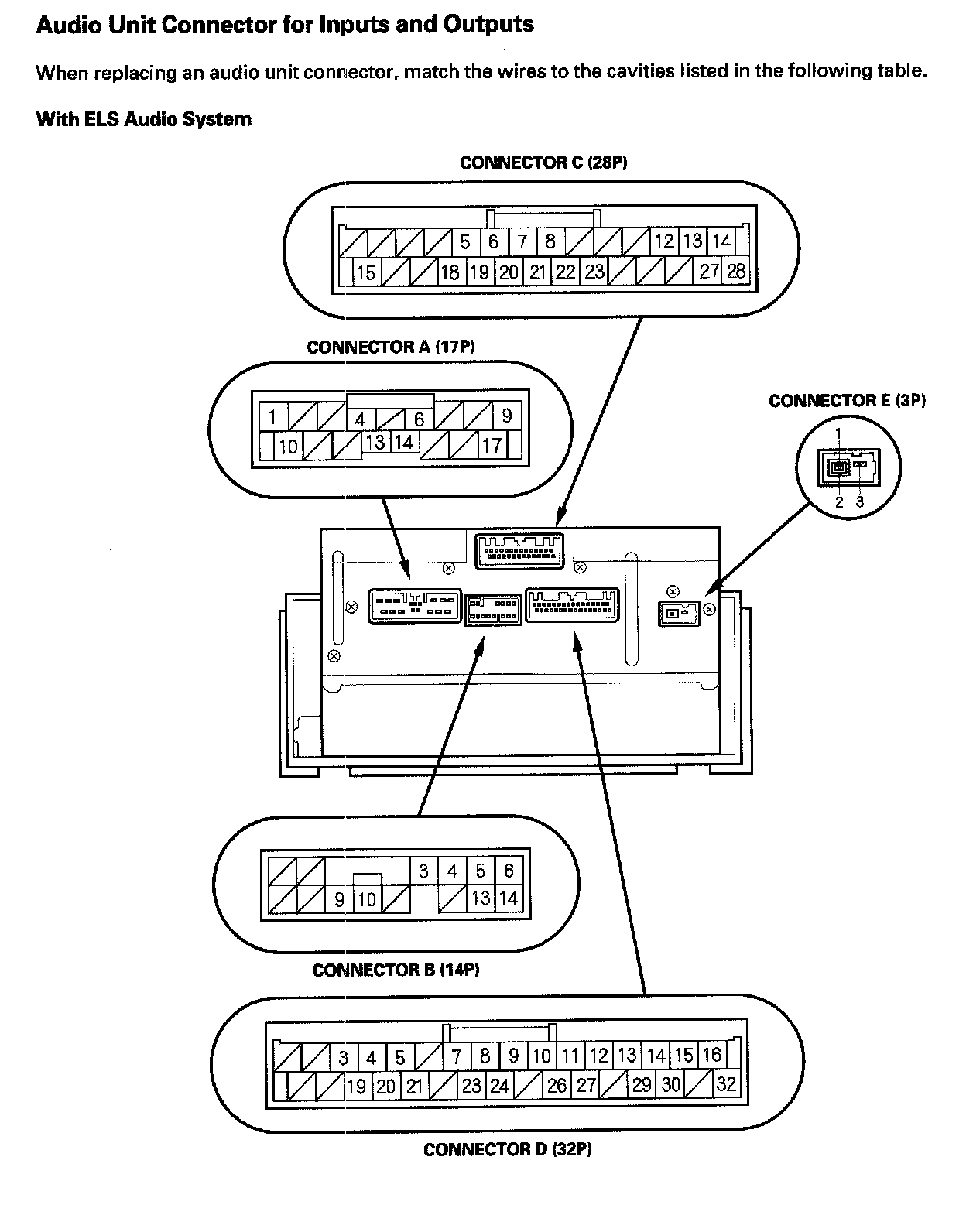

Audio Unit Connector For Inputs And Outputs Part 1:

Audio Unit Connector For Inputs And Outputs Part 2:

Audio Unit Connector For Inputs And Outputs Part 3:

Audio Unit Connector For Inputs And Outputs Part 4:

Audio Unit Connector For Inputs And Outputs Part 5:

Audio Unit Connector For Inputs And Outputs Part 6:

Audio Unit Connector For Inputs And Outputs Part 7:

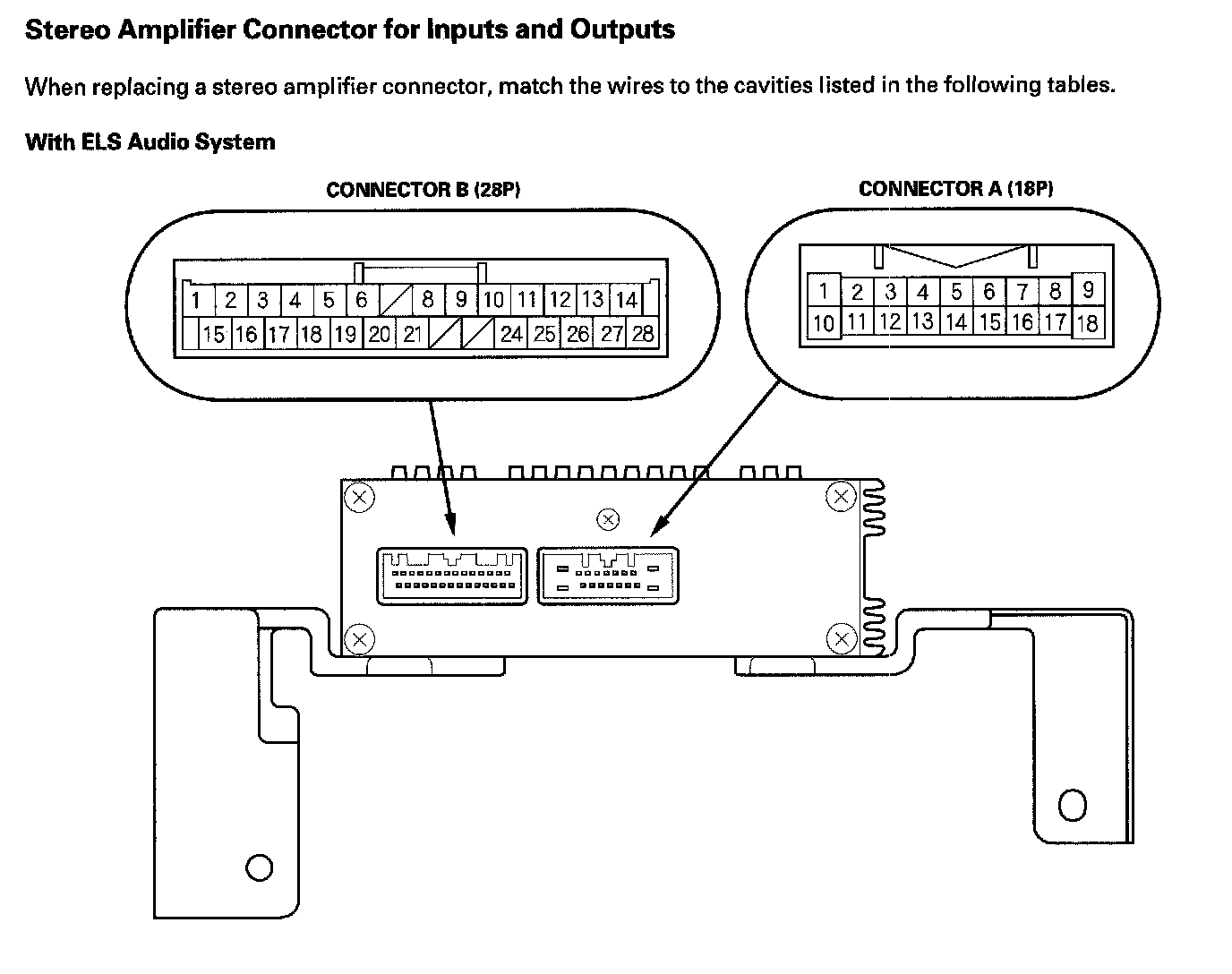

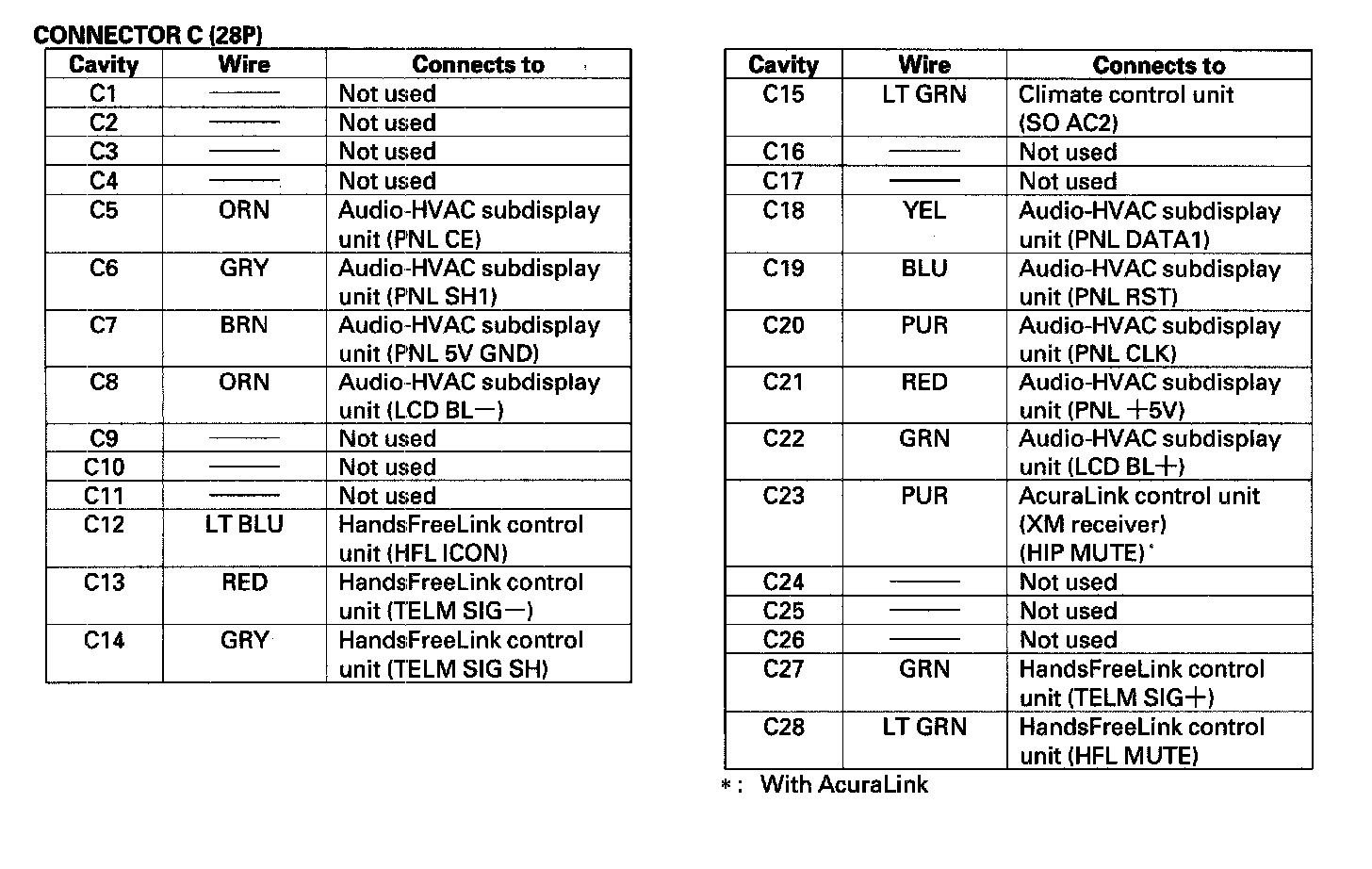

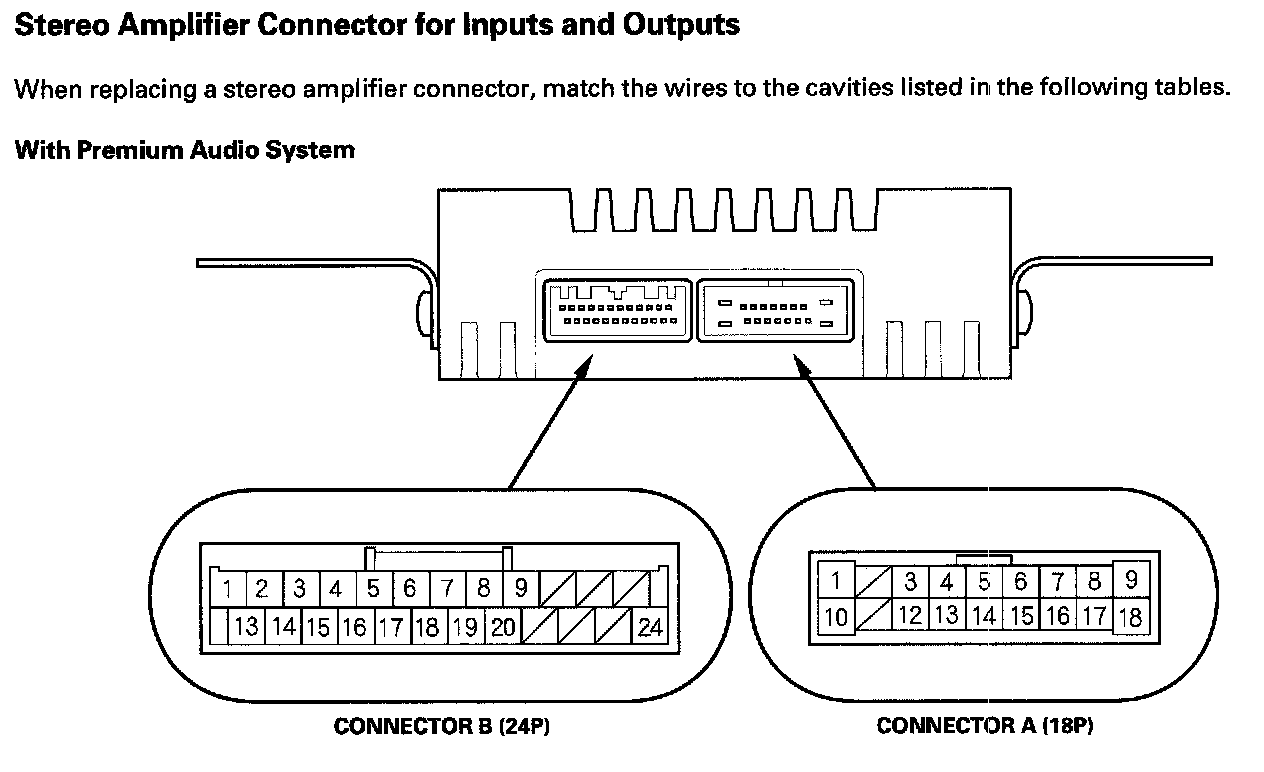

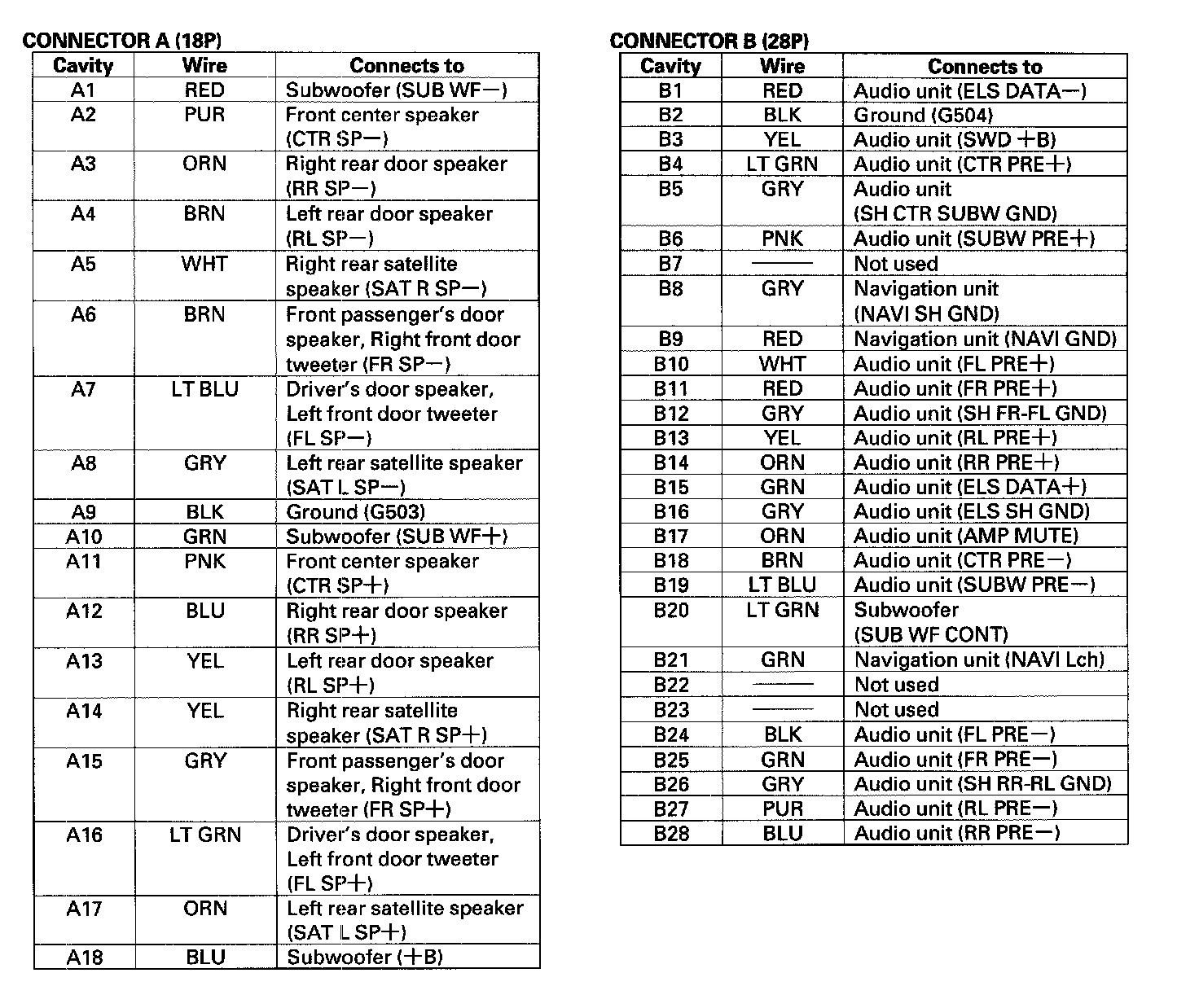

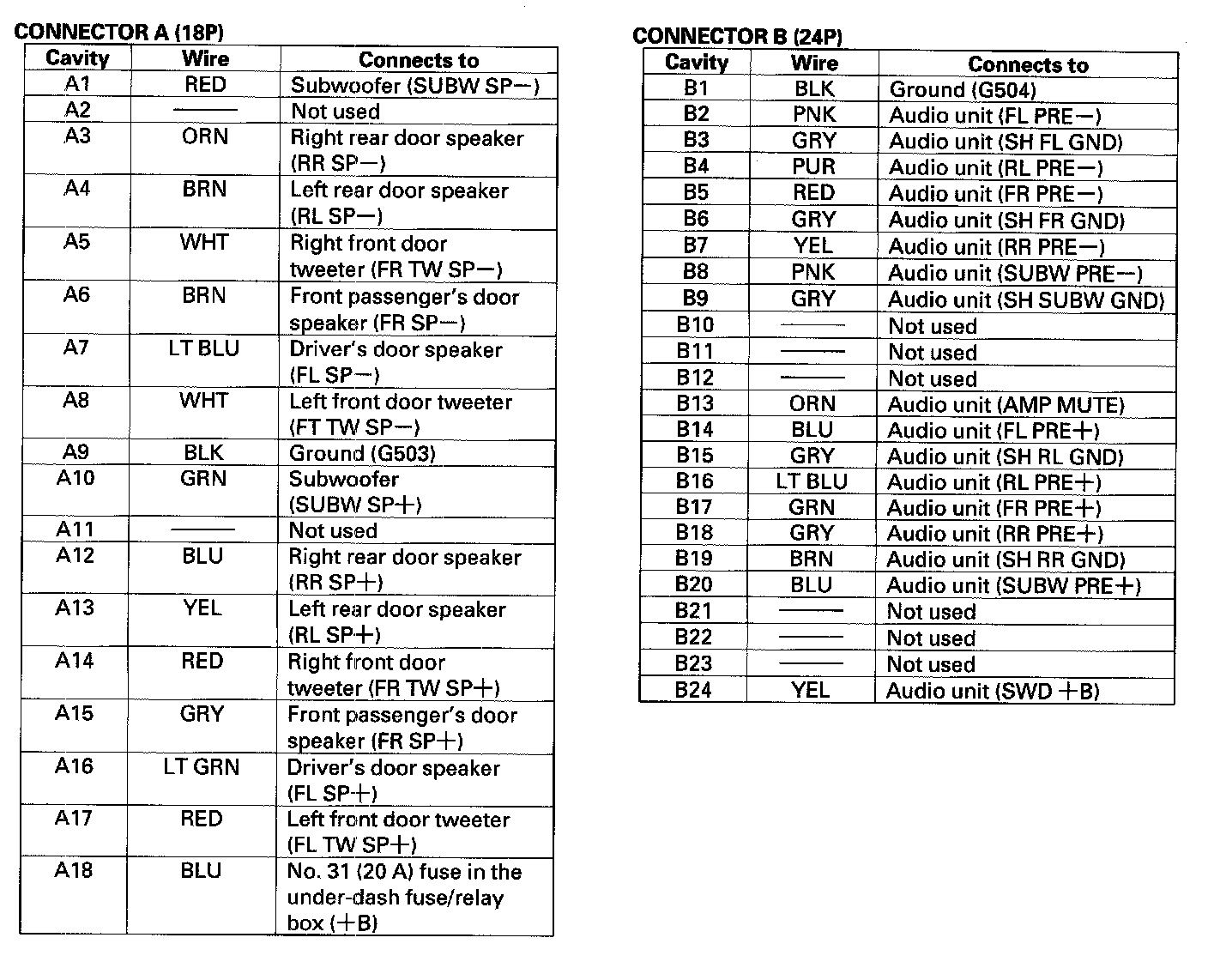

Stereo Amplifier Connector For Inputs And Outputs Part 1:

Stereo Amplifier Connector For Inputs And Outputs Part 2:

Stereo Amplifier Connector For Inputs And Outputs Part 3:

Stereo Amplifier Connector For Inputs And Outputs Part 4:

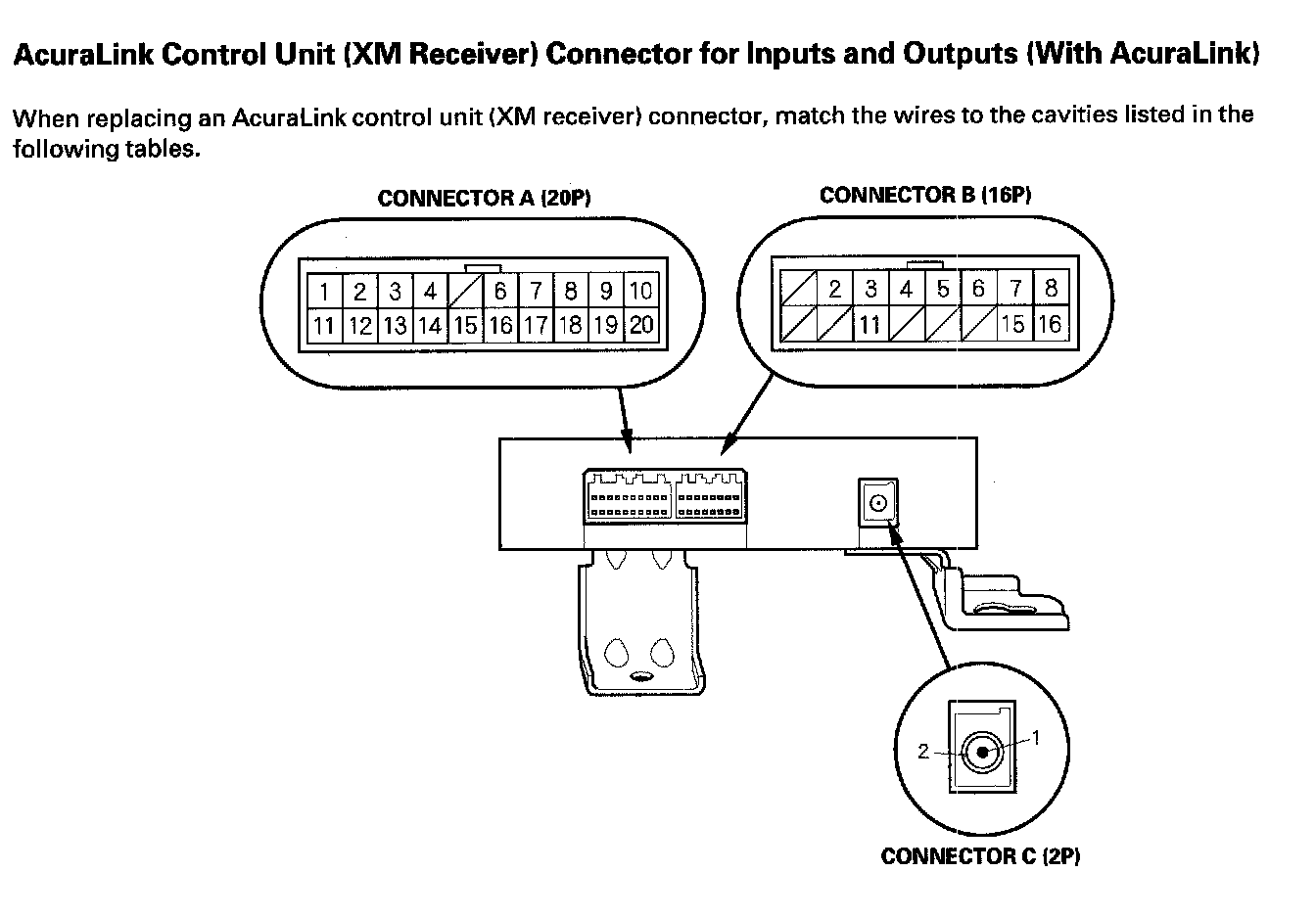

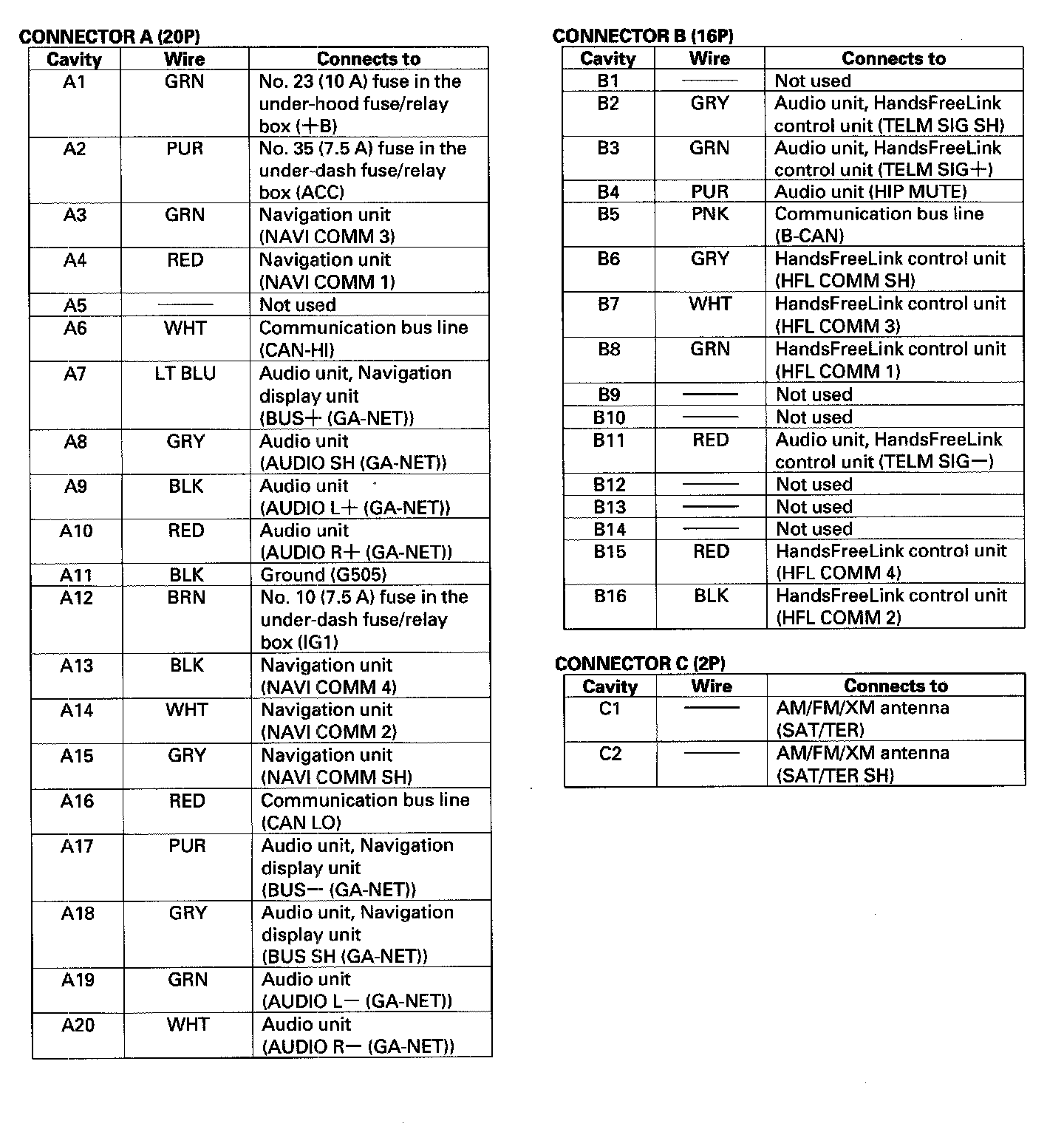

AcuraLink Control Unit (XM Recevier) Connector For Inputs And Outputs (With AcuraLink) Part 1:

AcuraLink Control Unit (XM Recevier) Connector For Inputs And Outputs (With AcuraLink) Part 2:

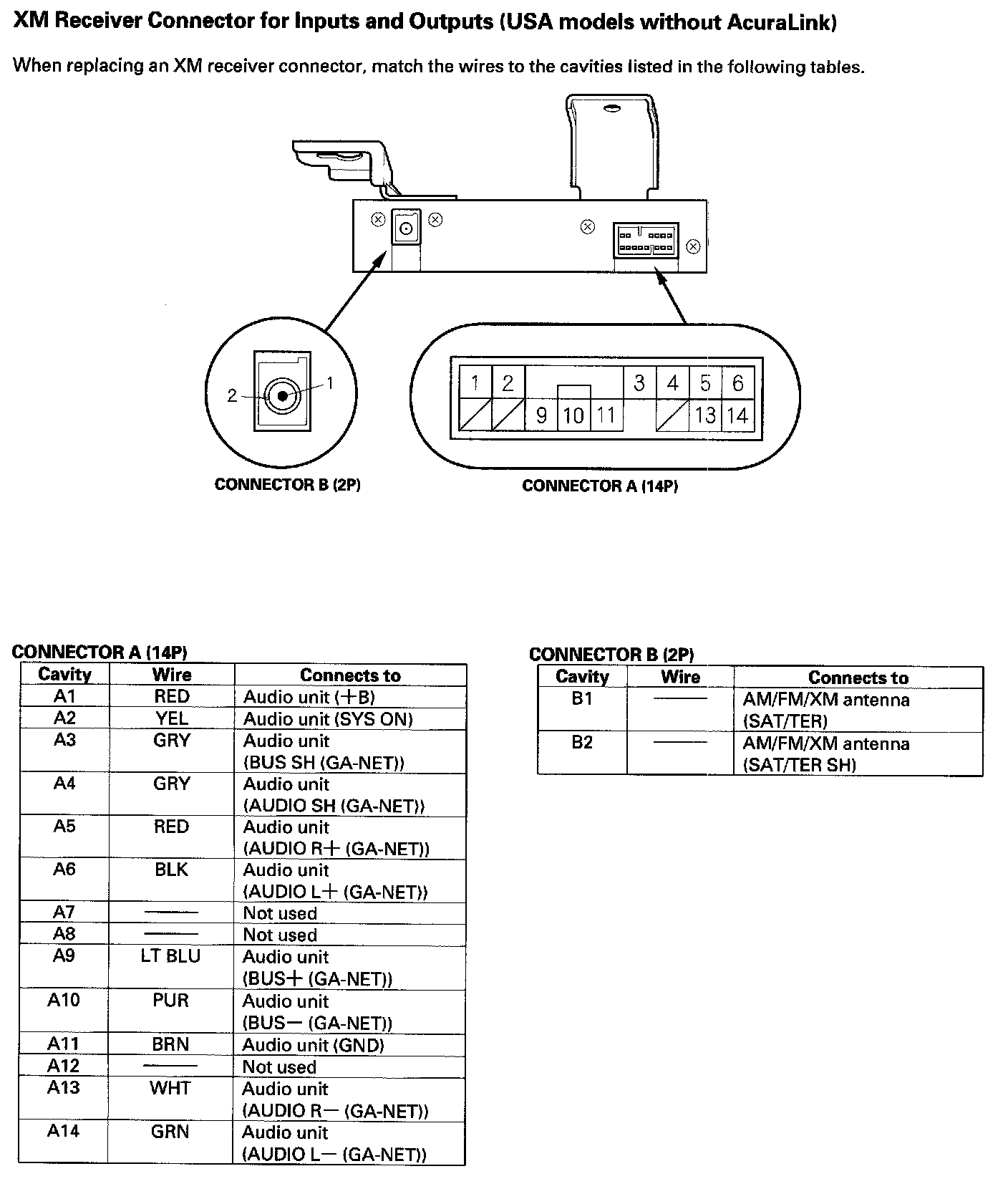

XM Recevier Connector For Inputs And Outputs (USA Models Without AcuraLink):

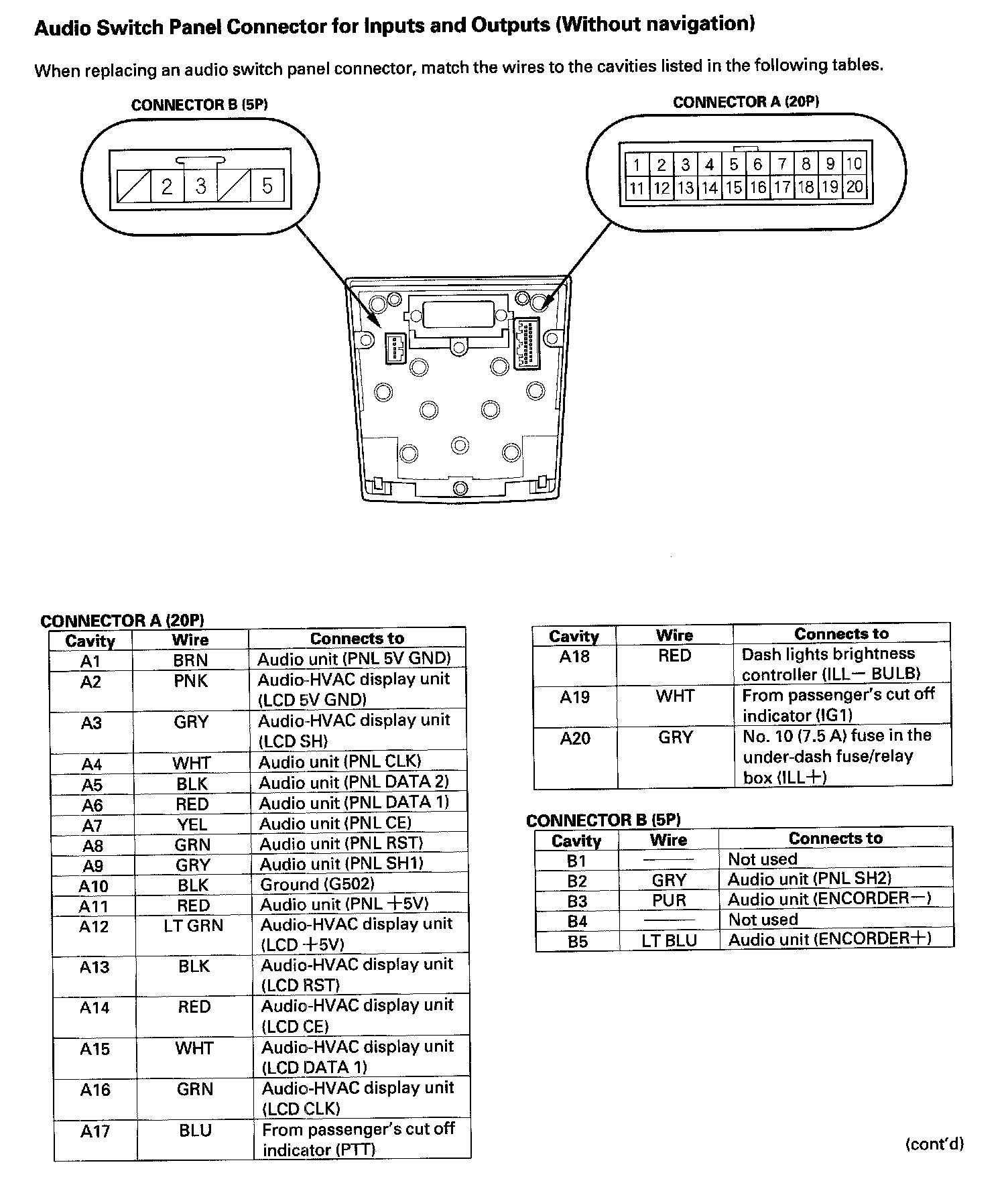

Audio Switch Panel Connector For Inputs And Outputs (Without Navigation):

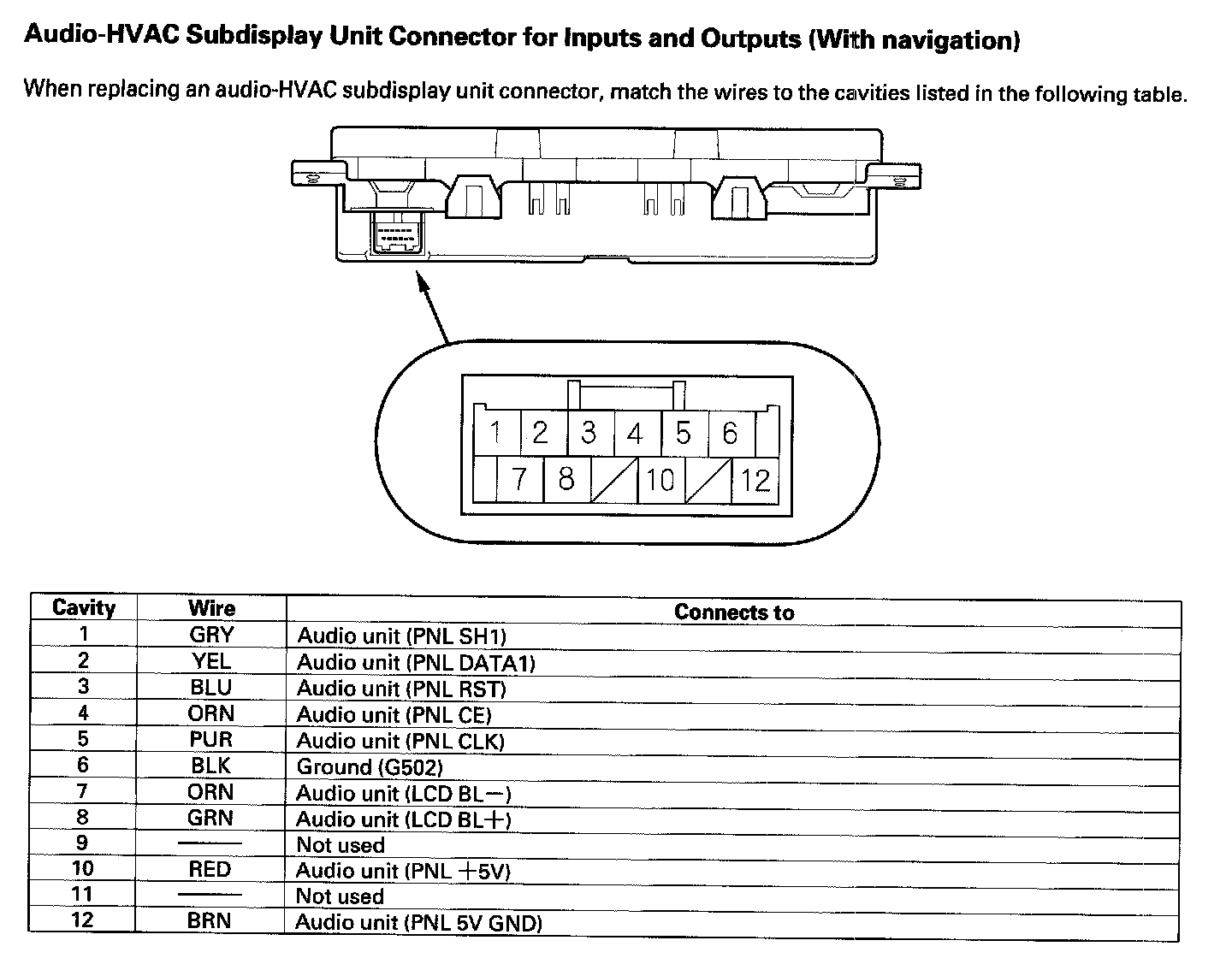

Audio - HVAC Subdisplay Unit Connector For Inputs And Outputs (With Navigation):

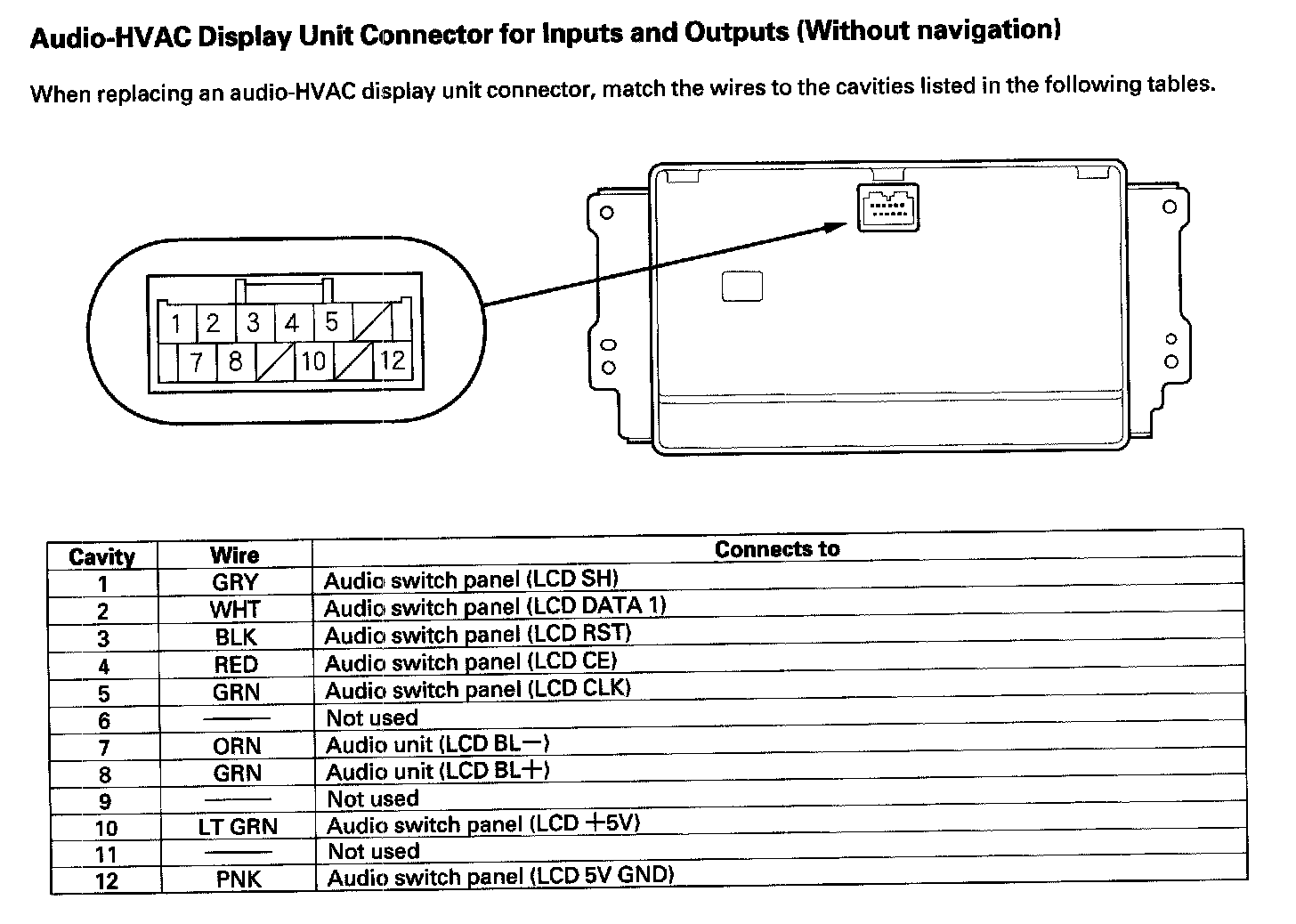

Audio - HVAC Display Unit Connector For Inputs And Outputs (With Navigation):

192. AcuraLink Reprogramming Connector (C307) (Technology Package):

228. Audio-HVAC Display Unit (except Technology Package):

229. Audio-HVAC Sub-display Unit (Technology Package):

280. AcuraLink Control Unit (XM Receiver) (USA: Technology Package):

282. Audio Unit:

282. Audio Unit:

282. Audio Unit:

296. XM Receiver (except USA Technology Package; '08 Canada):
