Climate Control Switch Bulb Replacement
Climate Control Switch Bulb Replacement 1.
Remove the climate control switch.
2.

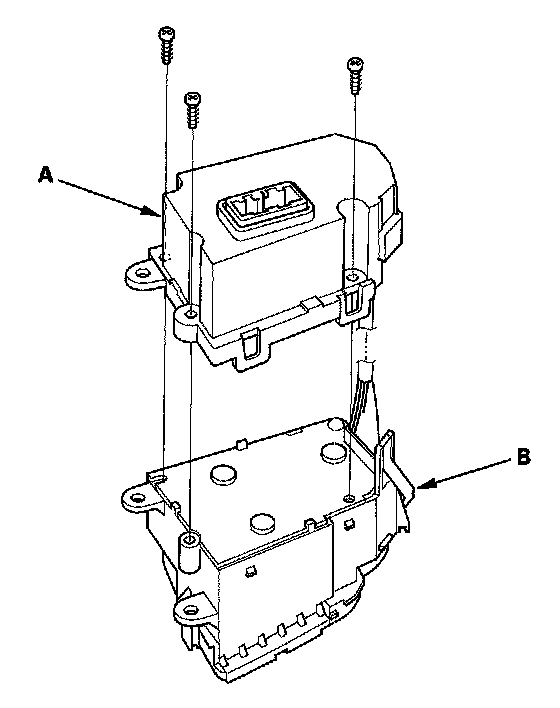

Remove the screws and cover (A) from the driver's climate control switch (B).
3.
Remove the bulb(s) with a flat-tip screwdriver.
4.
Install the bulb(s) in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
