Climate Control Unit Removal and Installation

Climate Control Unit Removal and Installation

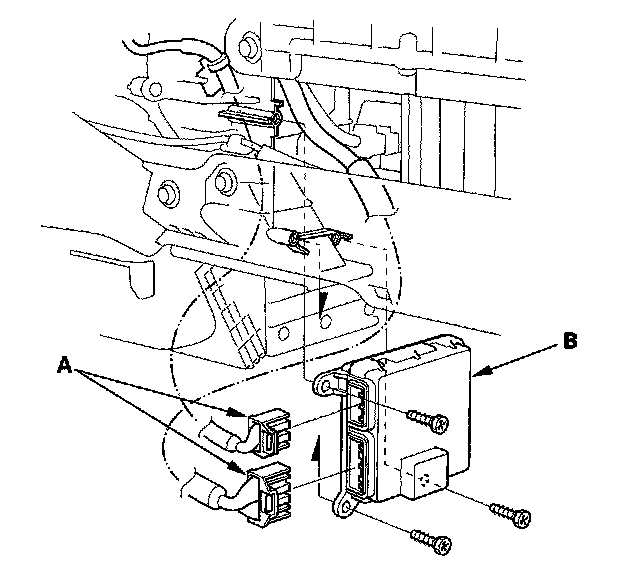

1. Remove the passenger's dashboard undercover.

2. Disconnect the connector (A).
3. Remove the self-tapping screws and climate control unit (B).
4. Install the control unit in the reverse order of removal. After installation, operate the various functions to see whether works properly.
5. Run the self-diagnostic function to confirm that there are no problems in the system.
