Power Transistor HVAC: Service and Repair

Power Transistor Replacement

1. Remove the passenger's dashboard undercover.
2. Remove the glove box.

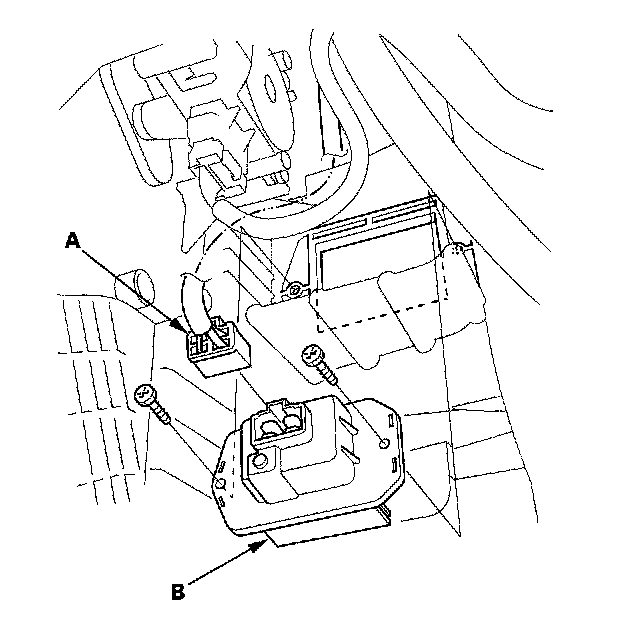

3. Disconnect the 4P connector (A) from the power transistor (B), then remove the screws.
4. Pull out the power transistor from the expansion valve cover.
5. Install the power transistor in the reverse order of removal.
