Ignition Key Switch Test

Ignition Key Switch Test

1. Remove the steering column upper and lower covers.

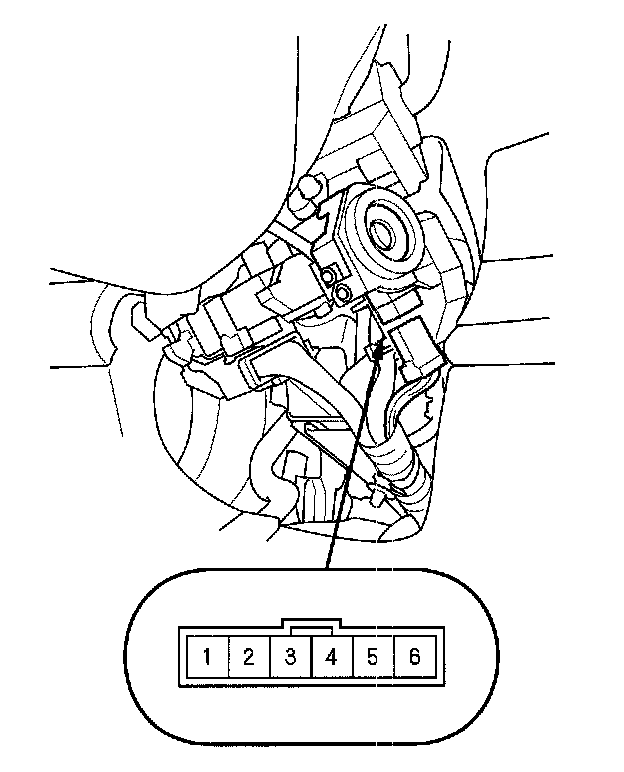

2. Disconnect the 6P connector.
3. Check for continuity between the No. 1 and No. 2 terminals.
- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed.

4. If the continuity is not as specified, replace the ignition switch.
