Boost Solenoid: Service and Repair

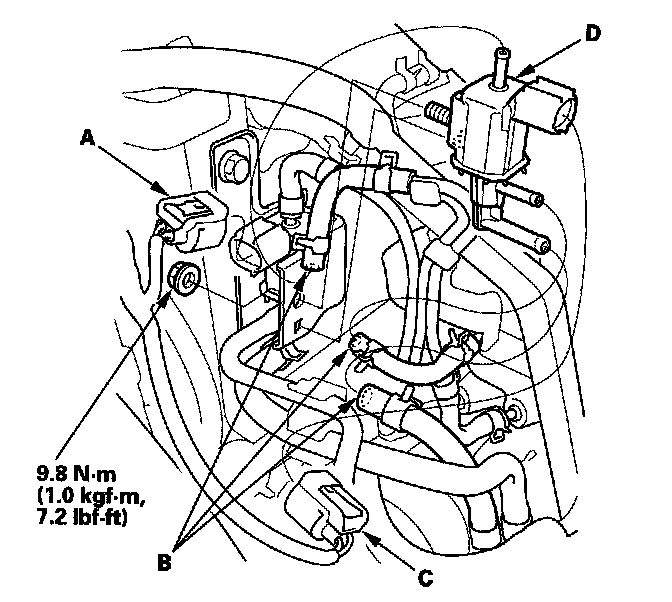

Turbocharger Boost Control Solenoid Valve Replacement 1.
Remove the charge air cooler.
2.
Disconnect the
turbocharger wastegate control solenoid valve connector (A).
3.
Disconnect the hoses (B), and the
turbocharger boost control valve connector (C).
4.
Remove the
turbocharger boost control solenoid valve (D).
5.
Install the parts in the reverse order of removal.
