CMP Pulse Plate B Replacement
CMP Pulse Plate B Replacement 1.
Remove the cylinder head cover.
2.
Remove the camshaft position (CMP) sensor B.
3.

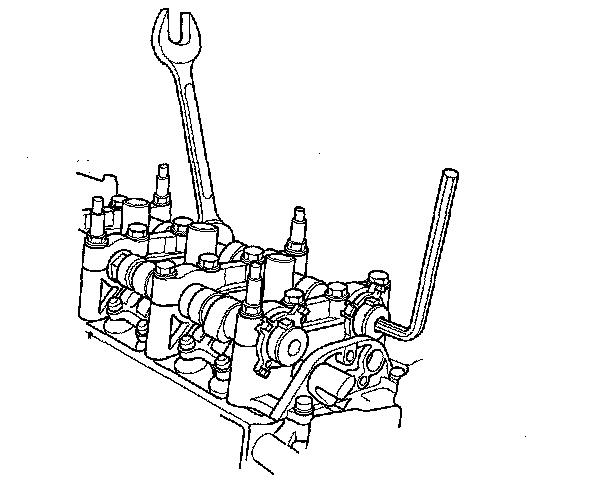

Hold the camshaft with an open-end wrench, then loosen the bolt.
4.

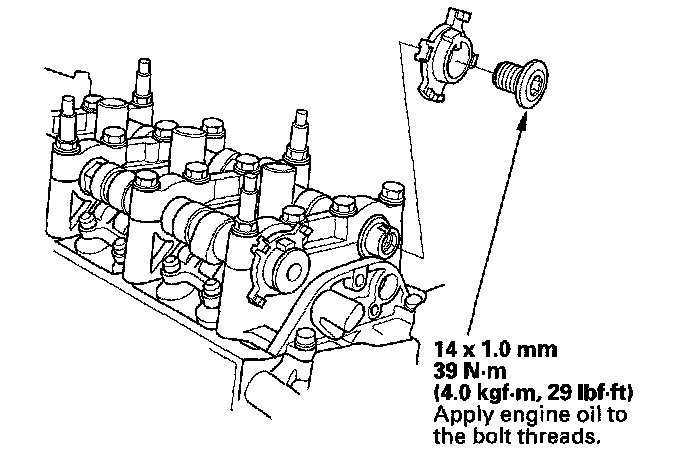

Remove the camshaft position (CMP) pulse plate B.
5.
Install the CMP pulse plate B in the reverse order of removal.
