Fuel Tank Pressure Sensor: Service and Repair

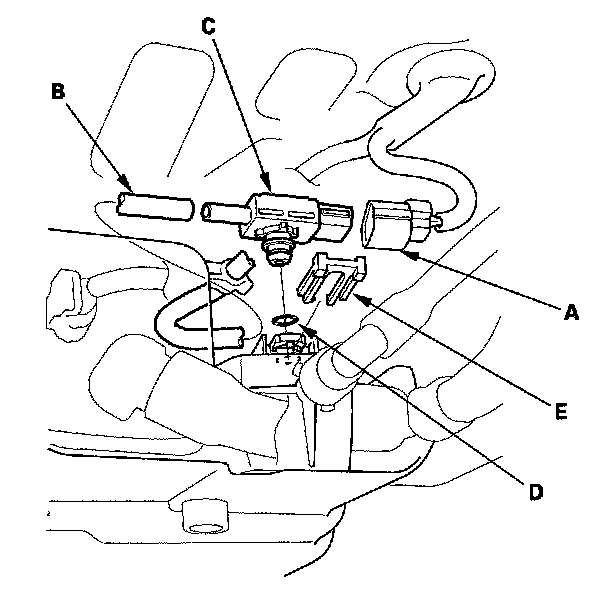

FTP Sensor Replacement 1.
Disconnect the FTP sensor connector (A).
2.
Disconnect the hose (B), then remove the FTP sensor (C).
3.
Reinstall the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
