CMP Sensor A Replacement
CMP Sensor A Replacement 1.
Remove the air cleaner.
2.
Remove the air bypass outlet pipe.
3.

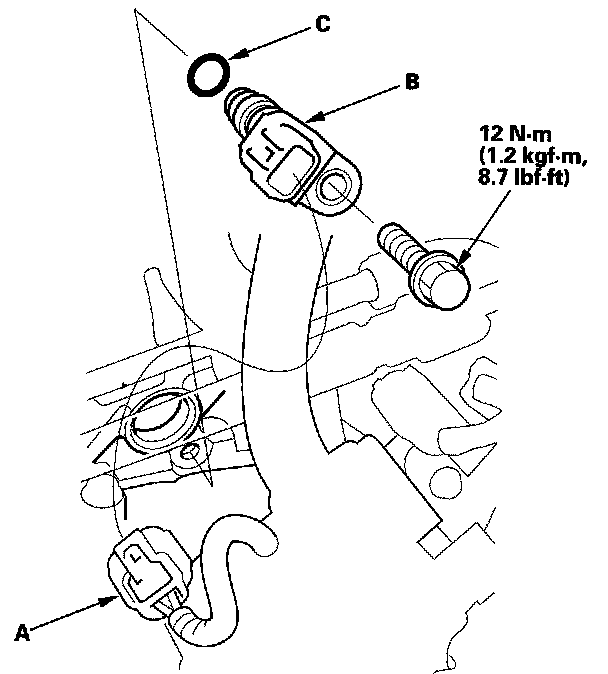

Disconnect the CMP sensor A 3P connector (A).
4.
Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.
5.
Install the parts in the reverse order of removal with a new O-ring (C).
