Ignition Coil: Service and Repair
Ignition Coil Removal/Installation 1.
Remove the charge air cooler.
2.

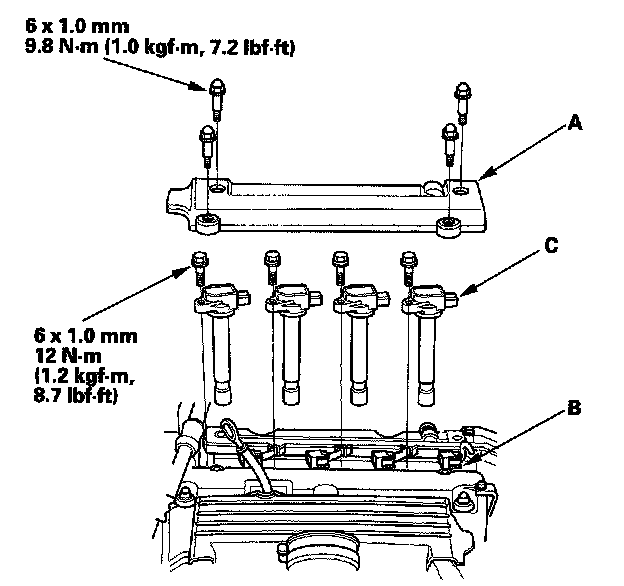

Remove the
ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).
3.
Install the
ignition coils in the reverse order of removal.
