Ignition Switch: Service and Repair
ReplacementSRS components are located in the area. Review the SRS component locations and precautions and procedures before performing repairs or servicing.
1. Make sure you have the anti-theft code for the audio system and the navigation system (if equipped), then write down the audio presets.
2. Disconnect the negative battery cable.
3. Remove the steering column covers.

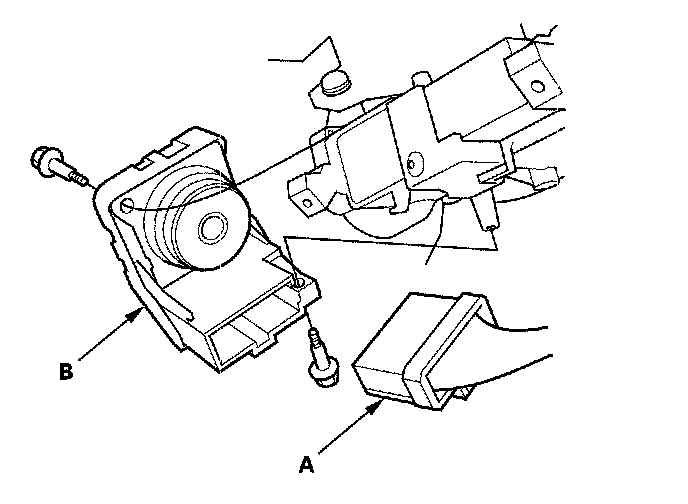

4. Disconnect the 7P connector (A) from the ignition switch (B).
5. Remove the two screws and the ignition switch.
6. Install in the reverse order of removal.
7. Enter the anti-theft code for the audio system and the navigation system (if equipped), then enter the audio presets.
8. Set the clock.
