Removal and Replacement
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft code for the audio system and the navigation system (if equipped), then write down the audio presets.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable.

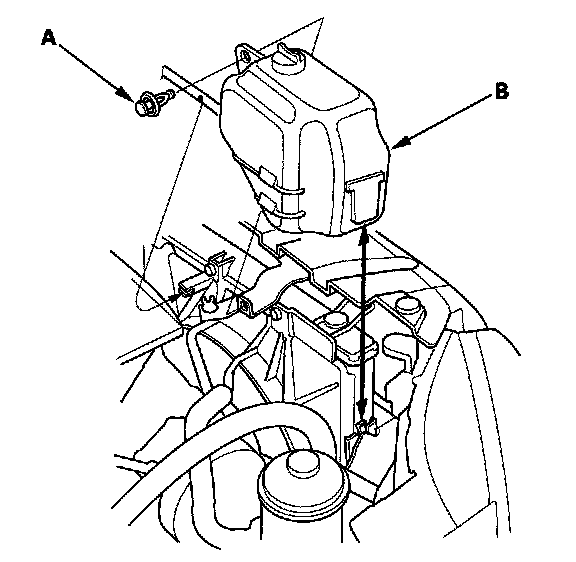

3. Remove the clip (A), then remove the coolant reservoir (B) from the holder.

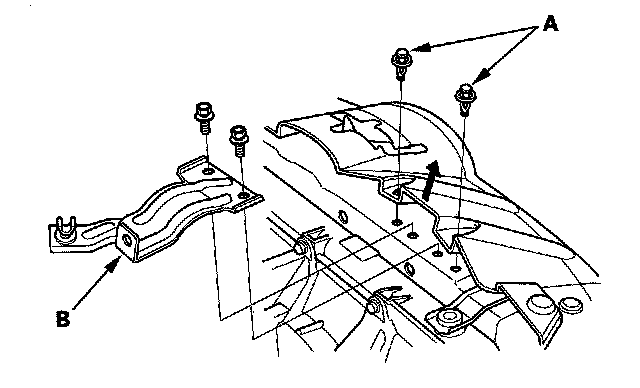

4. Remove the clips (A), then remove the support rod clamp bracket (B).

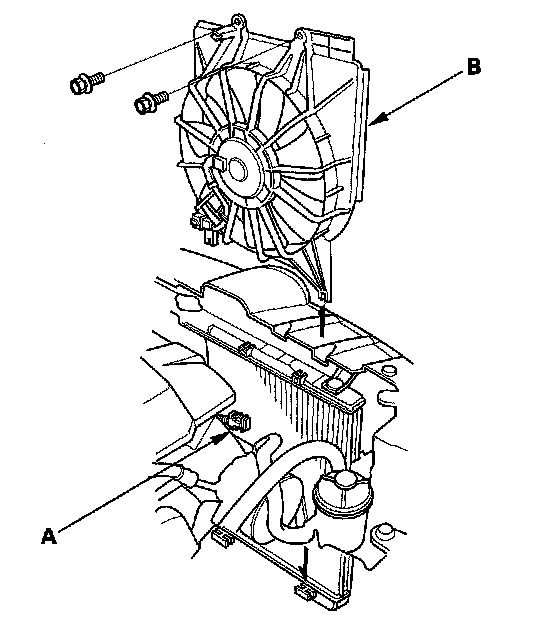

5. Disconnect the A/C condenser fan motor connector (A), then remove the A/C condenser fan shroud assembly (B).

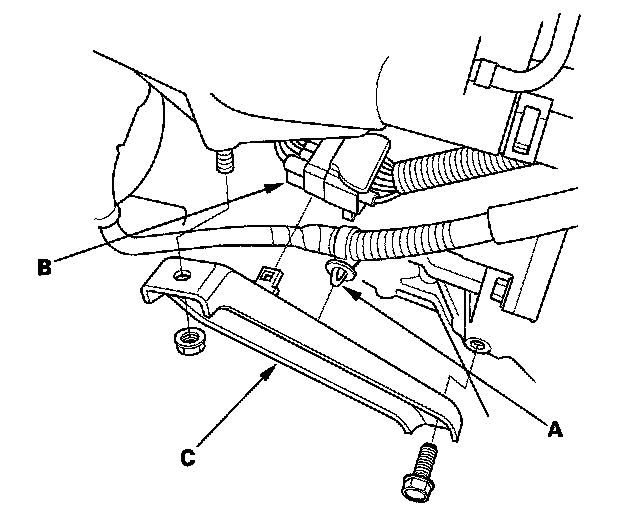

6. Remove the harness clamp (A) and connector (B), then remove the intake manifold bracket (C).

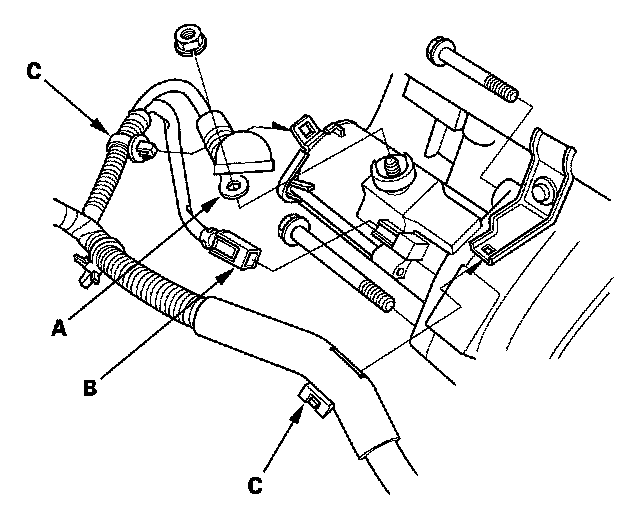

7. Disconnect the starter cable (A) from the B terminal, then disconnect the connector (B) from the S terminal.
8. Remove the harness clamps (C), then remove the starter.
Installation

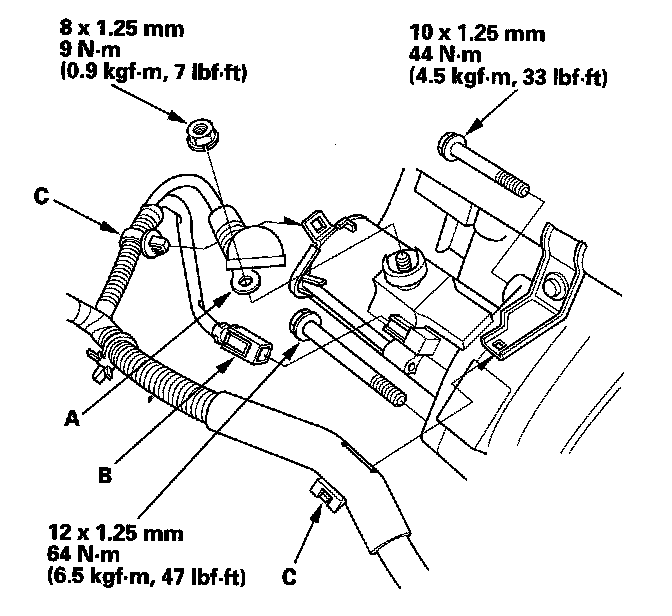

1. Install the starter, then install the starter cable (A) and connector (B). Make sure the starter cable crimped side of the ring terminal is facing out.
2. Install the harness clamps (C).
3. Install the intake manifold bracket (A), then install the harness clamp (B) and connector (C).

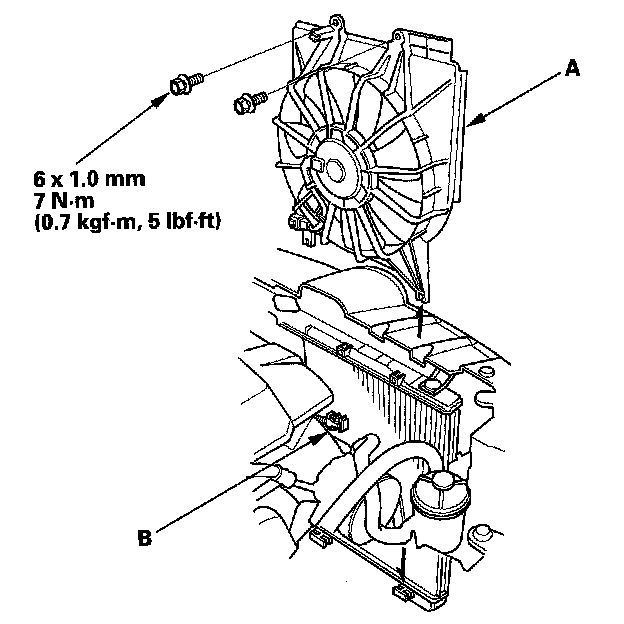

4. Install the A/C condenser fan shroud assembly (A), then connect the A/C condenser fan motor connector (B).

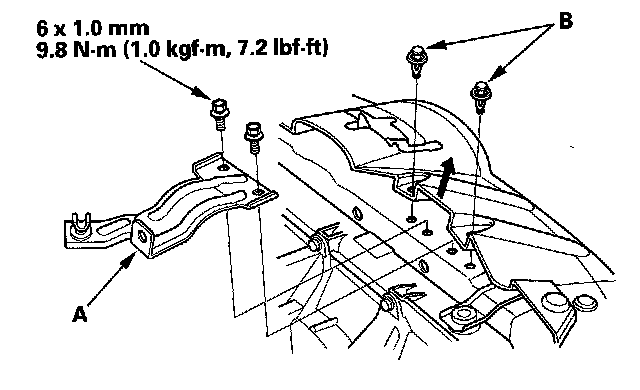

5. Install the support rod clamp bracket (A), then install the clips (B).

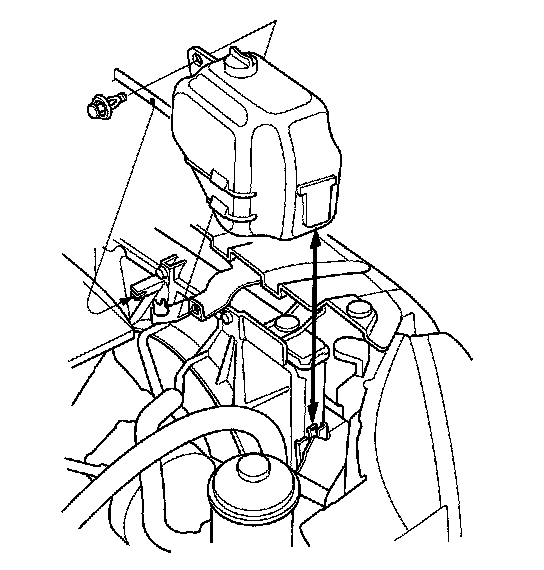

6. Install the coolant reservoir.
7. Connect the positive cable to the battery first, then connect the negative cable.
8. Start the engine to make sure the starter works properly.
9. Enter the anti-theft code for the audio system and the navigation system (if equipped), then enter the audio presets.
10. Set the clock.
