Shift Lock Release and Release Spring Replacement

Shift Lock Release and Release Spring Replacement
1. Remove the center console panel.

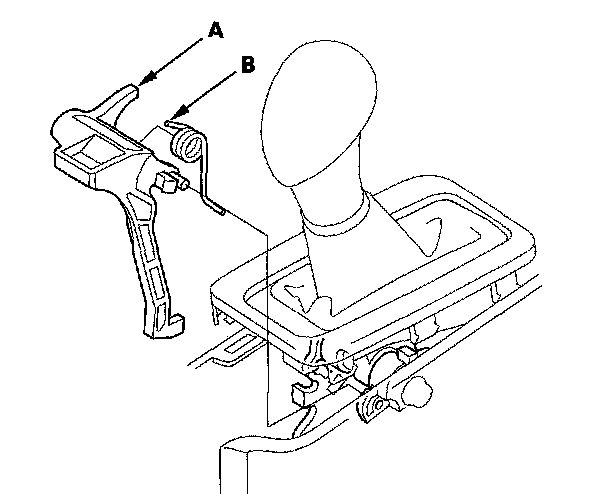

2. Remove the shift lock release (A) and release spring (B).





3. Install the shift lock release and release spring on the shift lever.
4. Install the center console panel.
