Control Unit: Service and Repair

SH-AWD Control Unit Replacement

NOTE: The SH-AWD control unit must be initialized. after replacement, otherwise the SH-AWD system will not function.

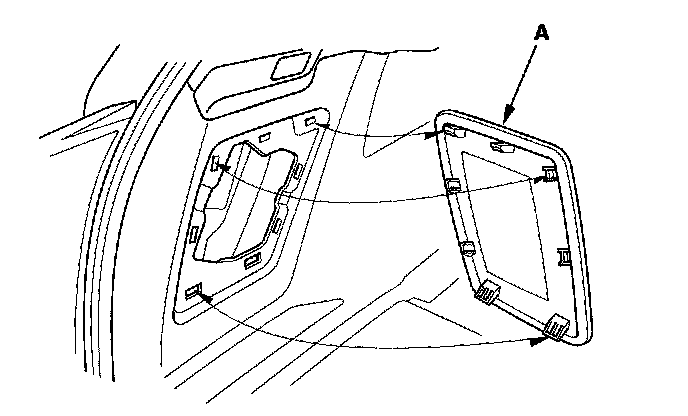

1. Remove the rear left side trim panel cover (A).

2. Loosen the SH-AWD control unit mounting bolts (A), then remove the SH-AWD control unit.

3. Disconnect the SH-AWD control unit connectors (C).
4. Install the SH-AWD control unit in the reverse order of removal.
