Right Rear Power Window Switch Input Test

Right Rear Power Window Switch Input Test

1. Remove the right rear power window switch.

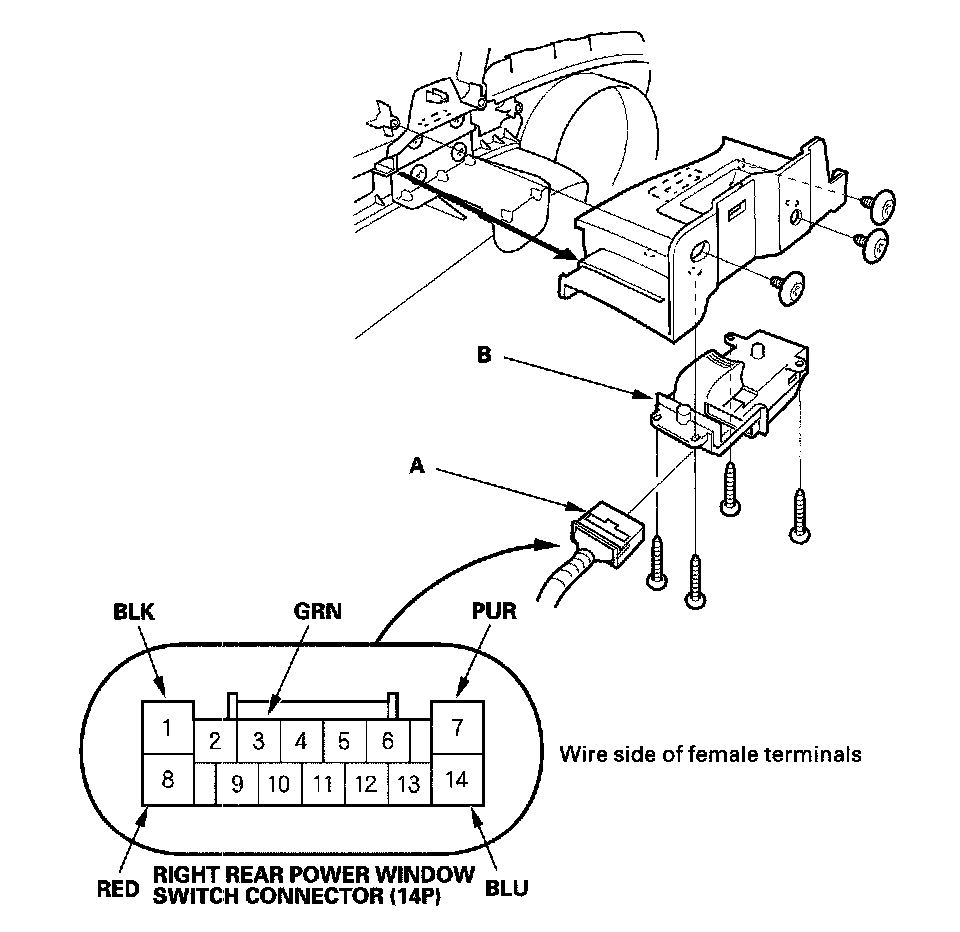

2. Disconnect the 14P connector (A) from the right rear power window switch (B).
3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

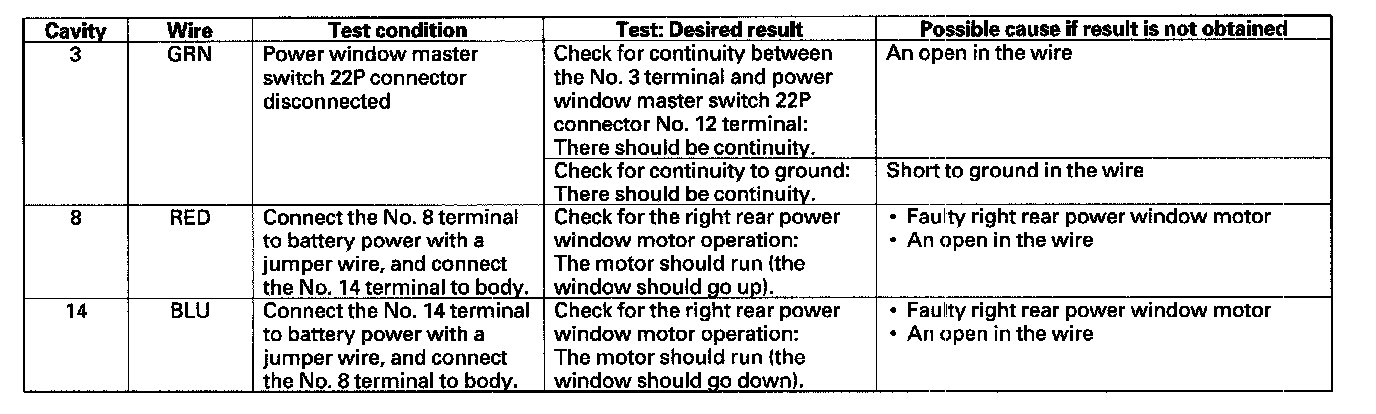

4. With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.




5. Reconnect the connector to the right rear power window switch, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the right rear power window switch must be faulty; replace it.
