System Check




System Check

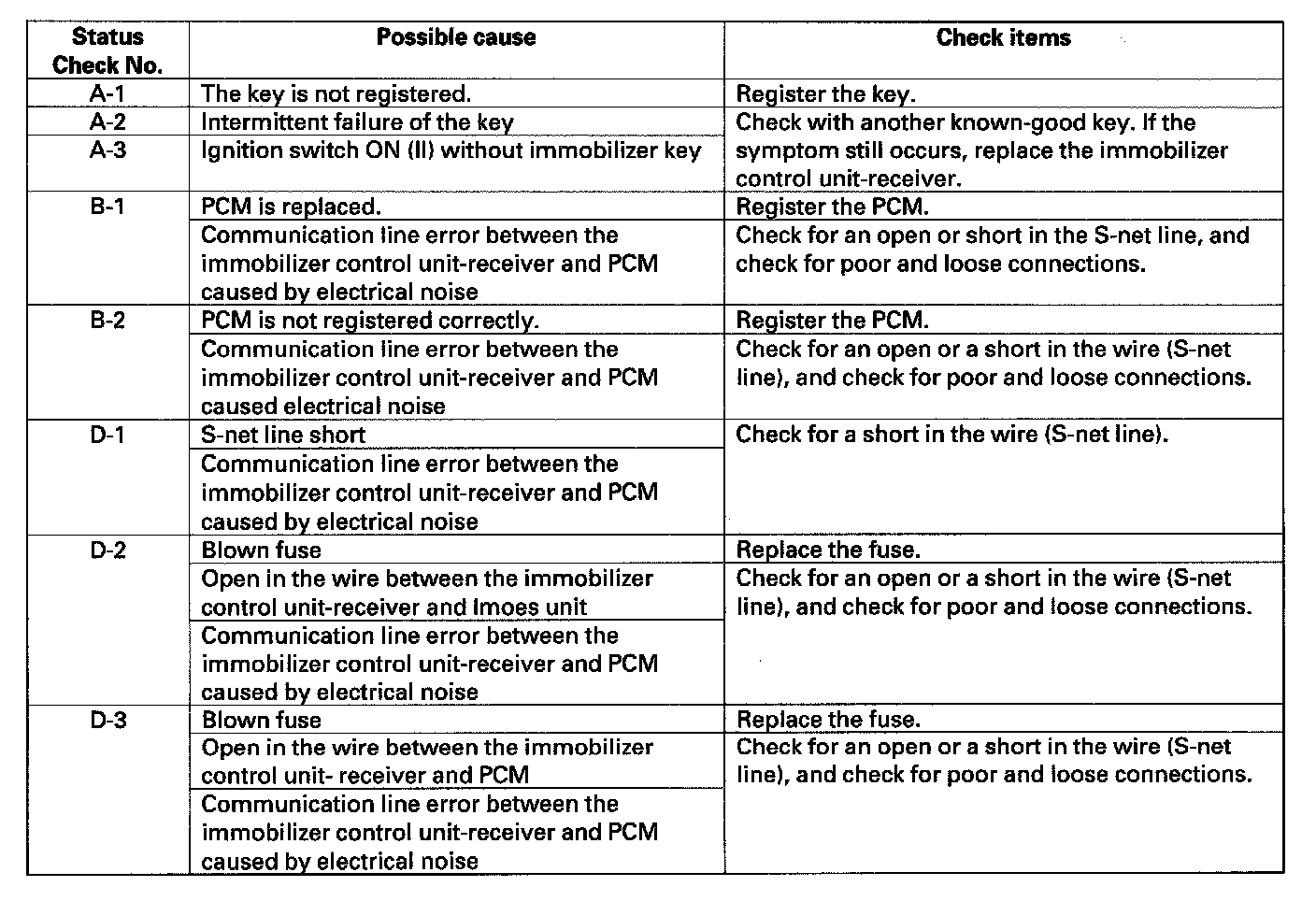

If a System Check result is indicated on the HDS display, troubleshoot the appropriate items in the table. If there is no Status Check result, go to Status Log.
