Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

Special Tools Required
Push pin puller 07AAC-SJAA100

NOTE: Take care not to scratch the body.

1. Remove the rear suspension damper unit.
2. Remove the rear inner fender (A).

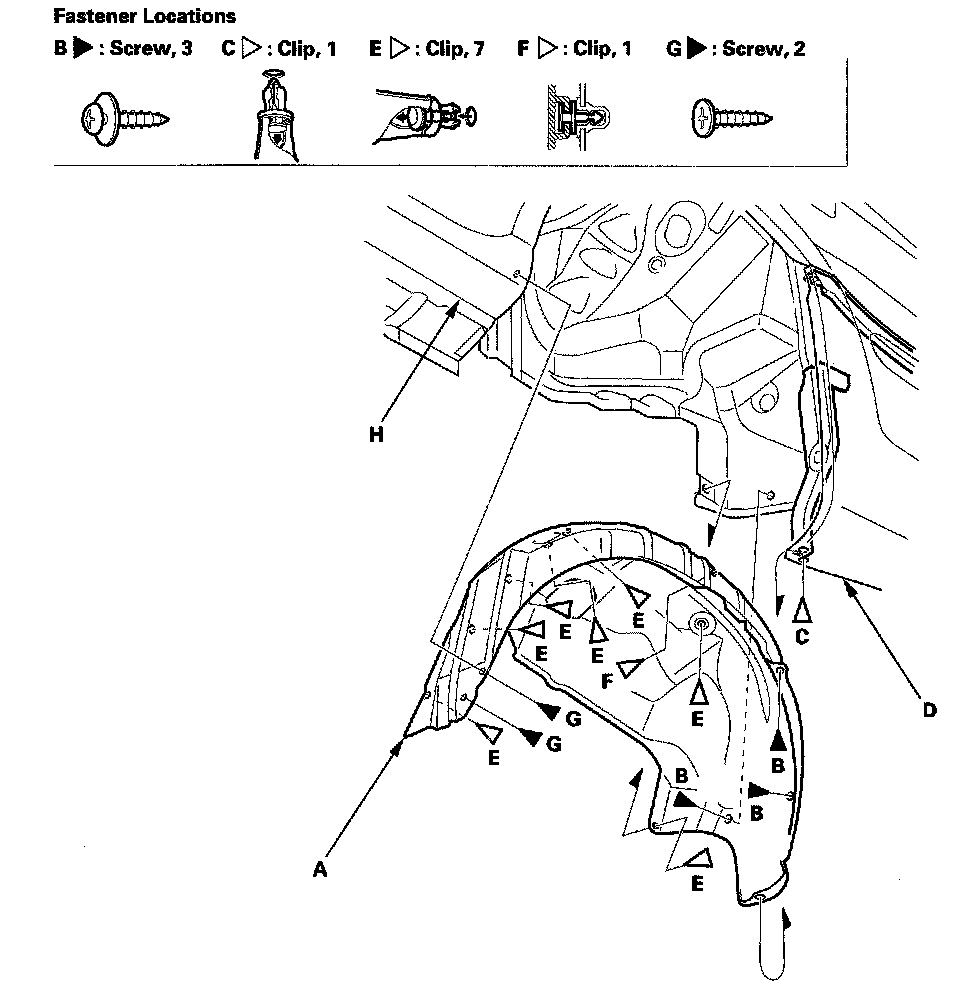

1. Remove the screws (B) and clip (C) from the rear bumper (D) and from the front and rear of the rear inner fender
2. Remove the clips (E, F).
3. On the front of the rear wheel arch, remove the screws (G) securing the side sill (H) and rear inner fender.
4. Pull out the rear inner fender.






NOTE: Left side shown, right side is similar.

3. Install the inner fender in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
