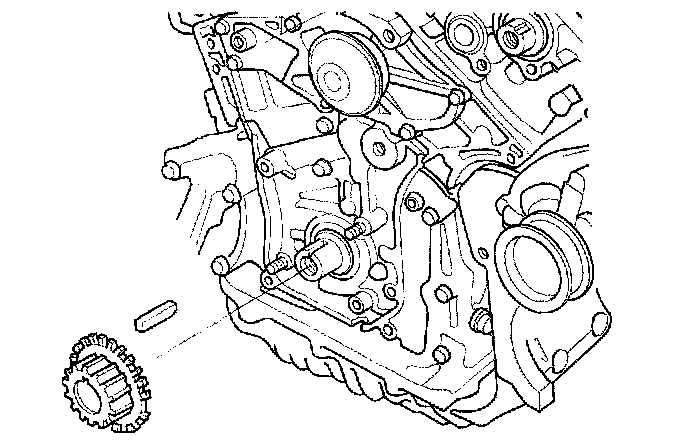

Crankshaft Gear/Sprocket: Service and Repair
Timing Belt Drive Pulley Replacement 1.
Remove the
timing belt.
2.
Remove the crankshaft position (CKP) sensor.
3.
Remove the timing belt drive pulley.
4.
Inspect the timing belt drive pulley and key for damage. If it is cracked or damaged, replace the timing belt drive pulley.
5.
Install the timing belt drive pulley.
6.
Install the CKP sensor.
7.
Install the
timing belt.
