Axle Nut

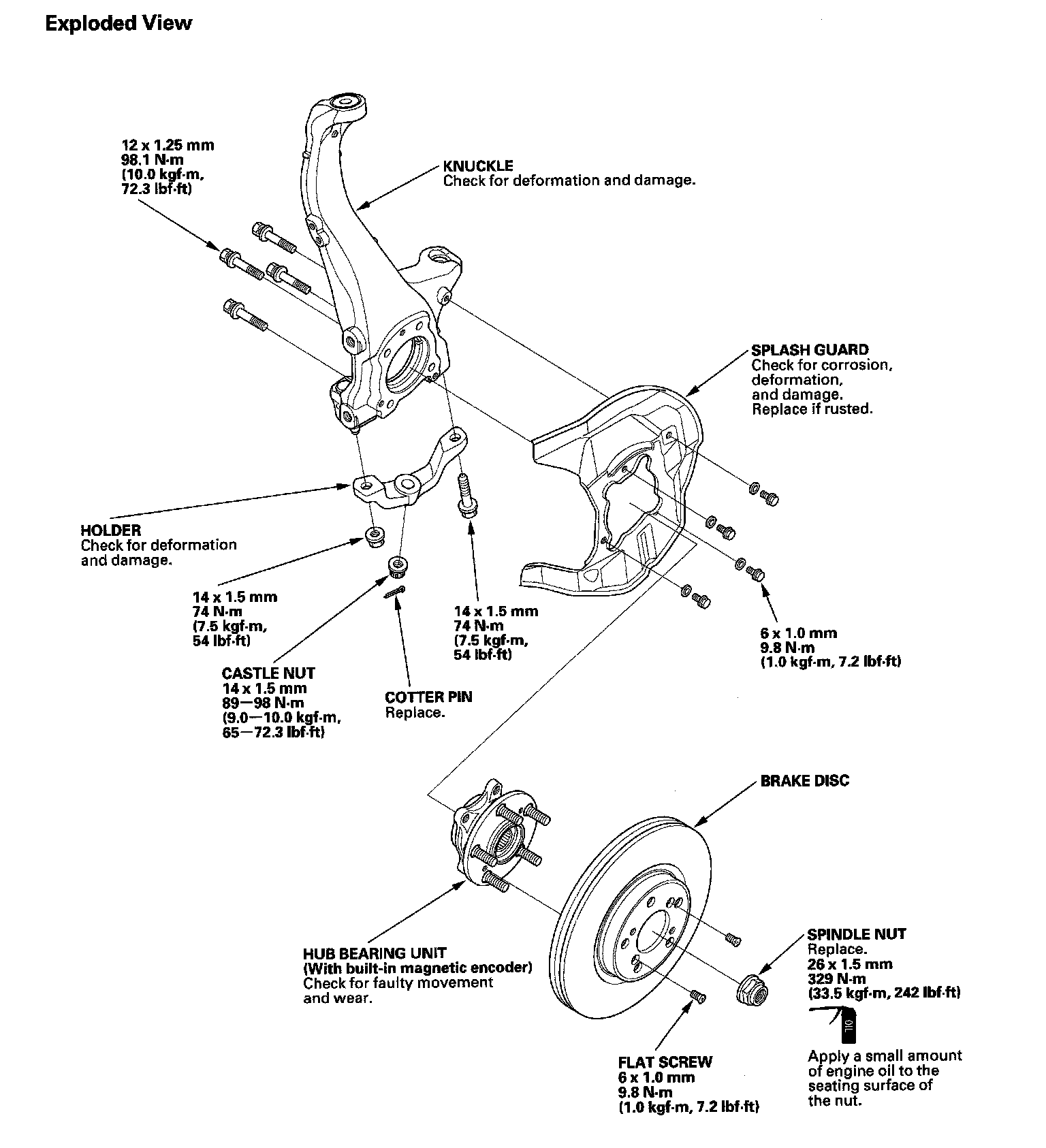

Spindle Nut Front SuspensionKnuckle/Hub Bearing Unit Replacement:

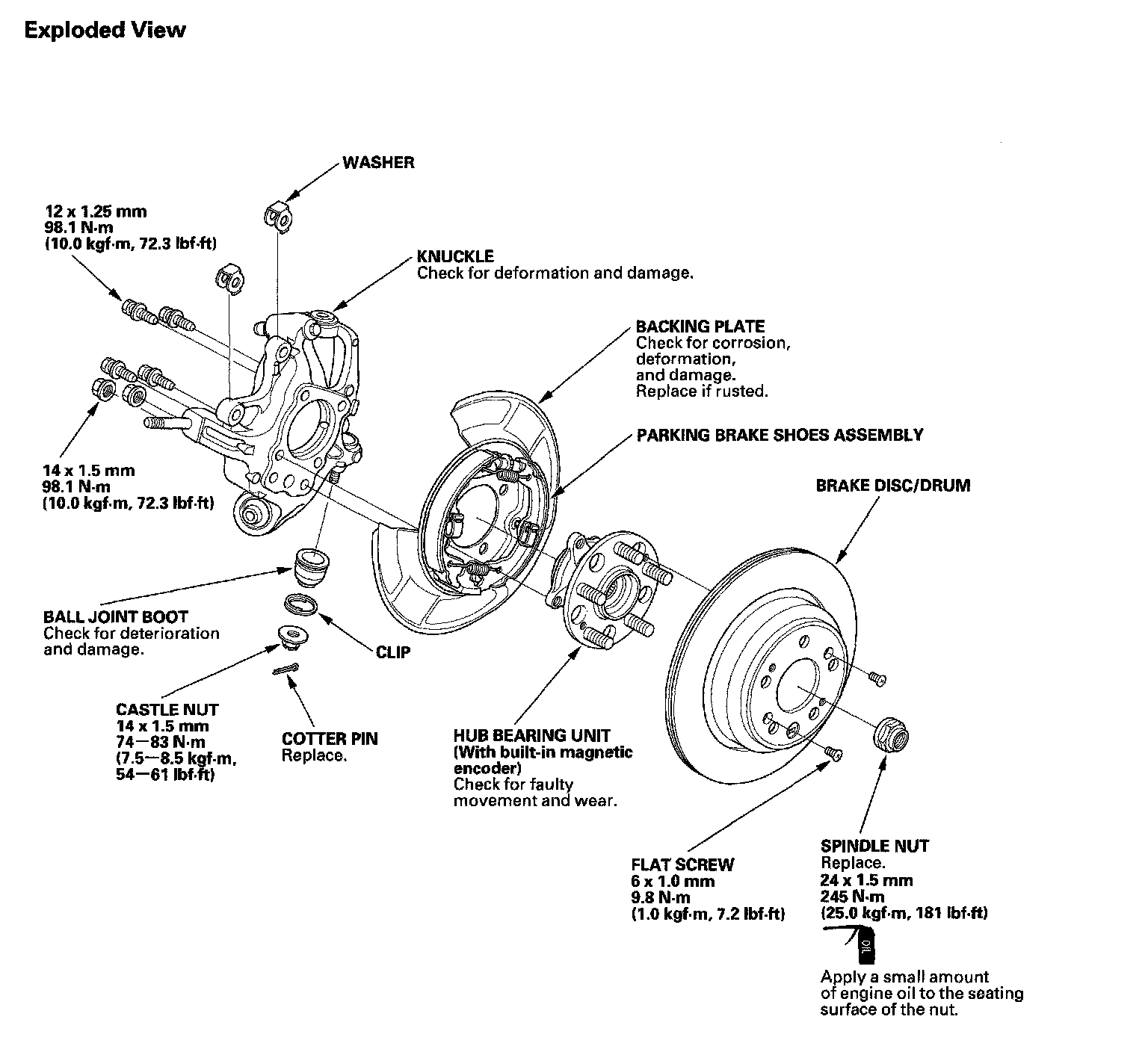

Rear SuspensionKnuckle/Hub Bearing Unit:
Use a new spindle nut on reassembly.
Before installing the spindle nut, apply a small amount of engine oil to the seating surface of the nut. After tightening, use a drift to stake the spindle nut shoulder against the driveshaft.
